Suspended LED lighting looks simple when it is installed correctly, but the hardware behind the system matters. A clean aircraft cable suspension setup depends on using the right combination of canopies, cable, grippers, couplers, mounting hardware, and strain relief components.
This guide explains what each part does, how the components work together, and how to choose the right hardware for suspended linear lights, LED panels, pendant-style fixtures, signage, and architectural lighting applications.
Section 1: What Is Aircraft Cable Lighting Suspension Hardware?

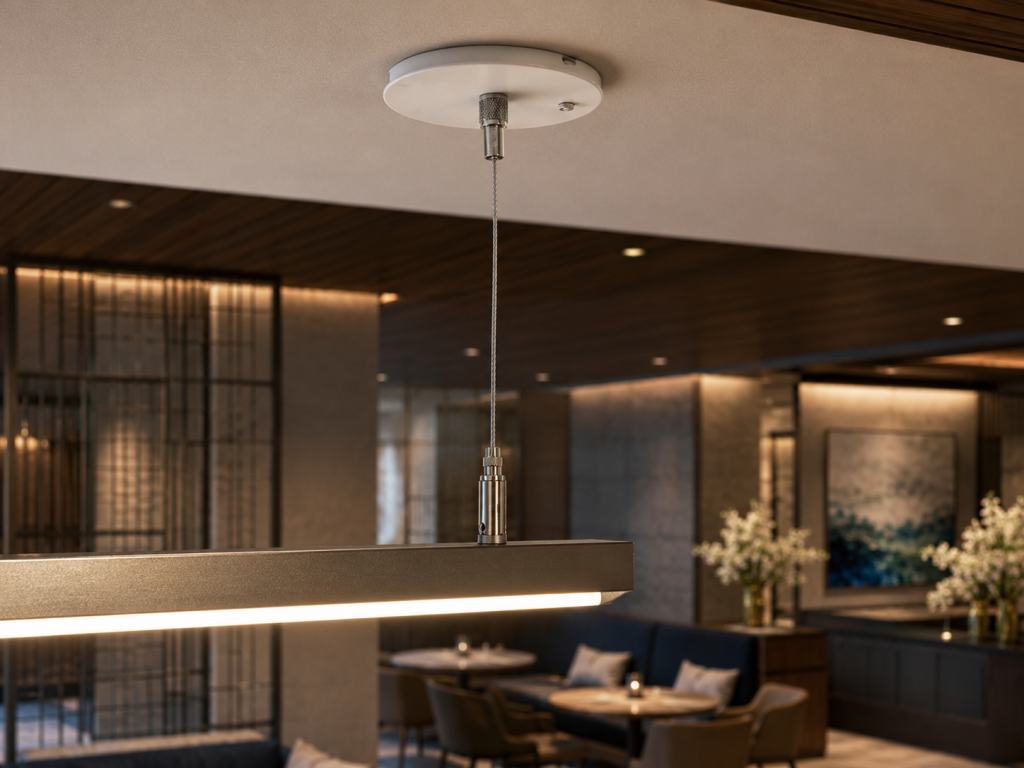

Aircraft cable suspension hardware is used to hang and adjust lighting fixtures from ceilings, ceiling grids, junction boxes, or other mounting points. Instead of rigid stems or bulky brackets, aircraft cable systems provide a clean, low-profile way to suspend fixtures while allowing height adjustment and precise alignment.
Common applications include:
- Linear LED Fixtures
- Suspended LED Panels
- Architectural lighting
- Pendant-style fixtures
- Signage and display lighting
- Commercial ceiling grid installations
Section 2: The Main Components in a Suspension System
Canopies
Canopies create the finished ceiling connection point. They help cover the mounting area and provide a clean transition from the ceiling to the suspension cable or power cord. Some canopies are used for suspension only, while others allow both suspension cable and power pass-through.
Use canopies when the installation needs a clean finished look at the ceiling. Shop Now for Canopies.
Aircraft Cable
Aircraft cable is the main support cable used to suspend the fixture. Pre-cut cable makes installation easier because the ends are already finished, helping avoid field cutting and loose cable strands.
Use aircraft cable when you need an adjustable, low-profile support system for suspended lighting. Shop Now for Aircraft Cable.
Grippers
Grippers hold the aircraft cable in place and allow the fixture height to be adjusted. A self-locking gripper lets the cable slide through in one direction and lock under tension. Many designs also include a release button so the fixture can be repositioned during installation.
Use grippers when the fixture height needs to be adjustable. Shop Now for Grippers.
Couplers
Couplers are used to connect or terminate the suspension cable at the canopy, crossbar, or mounting point. They create the mechanical connection between the cable and the ceiling-side hardware.
Use couplers when you need a clean threaded connection between the cable and the mounting hardware. Shop Now for Couplers.
T-Bar Clips and Ceiling Hardware
T-bar clips are used for suspended ceiling grid installations. They attach directly to standard ceiling grid systems and provide a secure mounting point for lighting hardware.
Use T-bar clips when installing suspended lighting in drop ceilings or commercial ceiling grid systems. Shop Now for T-Bar Clips and Hardware.
Strain Reliefs
Strain relief bushings protect and secure power cords where they pass through canopies, panels, or fixture housings. They help reduce pullout risk and protect the cord from abrasion at the edge of the opening.
Use strain reliefs when power cord routing is part of the suspended fixture installation. Shop Now for Strain Relief Bushings.

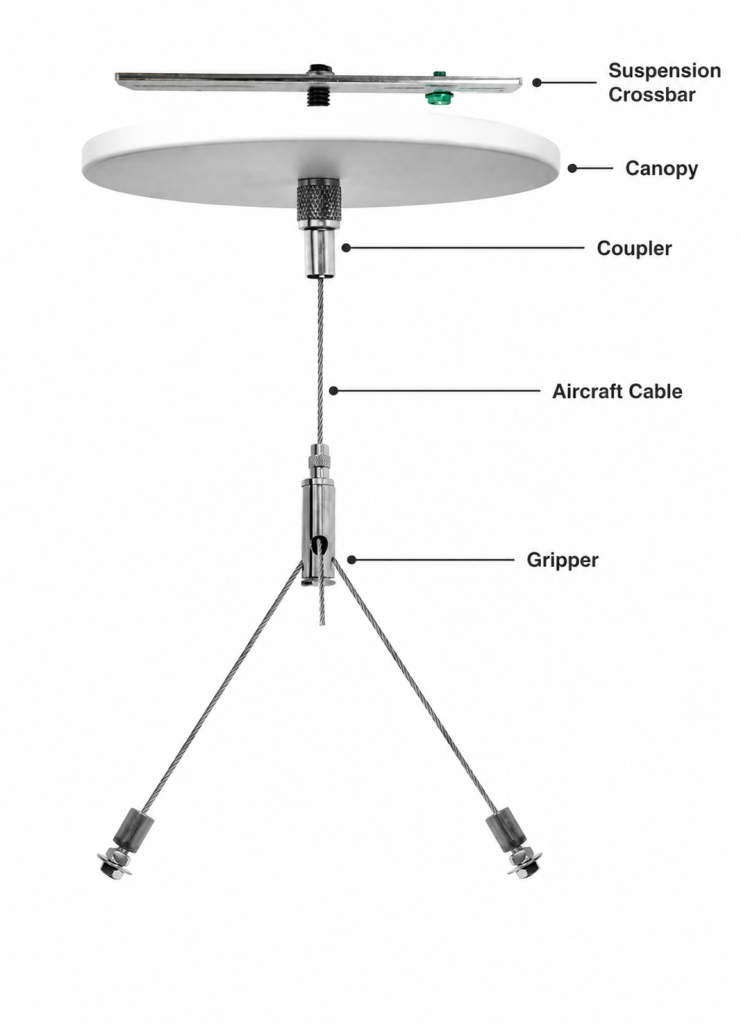

Section 3: How the Parts Work Together
A typical suspended lighting setup may include:
- A ceiling mounting point, crossbar, or T-bar clip
- A canopy to cover the ceiling connection
- A strain relief if power wiring passes through the canopy
- A coupler secures the top of the aircraft cable and threads into the suspension crossbar, creating a clean cable-to-canopy connection
- Aircraft cable running from the ceiling to the fixture
- A gripper to lock and adjust cable height
- A fixture-side cable, bracket, or connection point
The exact combination depends on the ceiling type, fixture design, cable diameter, power routing, and whether the fixture is being mounted individually or as part of a repeated commercial installation.
Section 4: Choosing the Right Suspension Hardware
When selecting lighting suspension hardware, pay attention to:
Cable Diameter
Make sure the cable, gripper, and coupler are compatible. Common aircraft cable sizes include 1/16″, 1/32″, and 3/32″, depending on the system.
Connection Type
Check whether the fixture or mounting point needs a male thread, female thread, horn connection, ball-end cable, or other attachment method.
Cable Exit Direction
Some grippers are side-exit, while others are bottom-exit. Side-exit grippers are useful when the cable feeds in from the ceiling and exits cleanly to the side. Bottom-exit grippers are useful when the cable needs to run straight through the hardware.
Ceiling Type
A junction box, drywall ceiling, metal panel, and suspended T-bar ceiling may all require different mounting hardware.
Power Routing
If power wiring is passing through the canopy, choose a canopy configuration and strain relief that support clean, protected cord routing.
Section 5: Why Hardware Quality Matters
Lighting suspension hardware is small, but it carries a big responsibility. Poor-quality components can make installation harder, create alignment problems, reduce adjustability, or result in an unfinished-looking project.
High-quality suspension hardware should provide:
- Secure mechanical holding strength
- Smooth cable adjustment
- Clean finished appearance
- Consistent fit between components
- Corrosion-resistant materials or finishes
- Proper compatibility between cable, grippers, couplers, and mounting hardware
This is especially important for architectural, commercial, OEM, and repeated fixture installations where the same hardware may be used across many fixtures.
Section 6: Components vs. Kits
Individual components are best when the project requires a custom suspension layout, specific cable lengths, unique fixture connections, or a mix of ceiling conditions.
Suspension kits are best when the project uses a common configuration and the customer wants a simpler way to order all compatible parts together.
As complete kits become available, they will help reduce guesswork by grouping compatible aircraft cable, grippers, canopies, and mounting hardware into ready-to-order suspension solutions.
Section 7: Common Questions
What is a cable gripper used for?
A cable gripper locks aircraft cable in place and allows the suspended fixture height to be adjusted.
What does a canopy do?
A canopy covers the ceiling connection point and creates a clean finished appearance for the suspension cable and, in some cases, power wiring.
Do I need a strain relief?
Use a strain relief when a power cord passes through a canopy, fixture housing, or panel opening. It helps protect the cord and reduce strain on the electrical connection.
Can aircraft cable hardware be used with suspended ceiling grids?
Yes, but the installation may require T-bar clips or other ceiling-grid-compatible mounting hardware.
Should I buy individual parts or a suspension kit?
Buy individual parts for custom installations. Choose a kit when the application matches a common setup and you want the simplest ordering path.
Closing
Aircraft cable lighting suspension systems are clean, adjustable, and highly flexible when the right parts are selected. By matching the canopy, cable, gripper, coupler, mounting hardware, and power cord protection to the application, customers can build a safer, cleaner, and more professional lighting installation.
Explore our Lighting Hardware category to find canopies, aircraft cable, grippers, couplers, T-bar clips, mounting hardware, and suspension kits for your next lighting project.
Need help matching hardware to your fixture or ceiling type? Contact LEDSupply and we’ll help you choose the right components for your lighting project.
