WAGO 221 Series Splicing Connectors – Inline, 2, 3 & 5-Lever
More images
Regular Price: $0.74
Sale Price: $0.67
You Save: $0.07
PART #: 221-x
VOLUME DISCOUNTS
PCS
% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class > $39.99
FREE
First Class
$3.99
Ground
$11.99
2-Day
$13.99
Express
CALC
Purchase
ORDER BY 3PM EST FOR
SAME DAY SHIPPING
SAME DAY SHIPPING
- Clear visible housing
- Fast tool-free splicing
- UL Listed 600V
Share:
Product Details
| UL Listing: Rated 600V / 20A (UL 486C) | Wire Range: Accepts 24–12 AWG Copper |
| Connection Type: Tool-Free CAGE CLAMP® Lever | Housing: Transparent Polycarbonate (PC) |
| Wire Types: Solid, Stranded & Fine-Stranded | Strip Length: 11mm (0.43 Inches) |
| Conductors: Inline (2), 2-, 3-, or 5-Lever Configurations | Test Port: Included on All Lever Models |
| Temperature Rating: T85 (85°C) / 105°C Max | Material Quality: Tin-Plated Copper Current Bar |
| Safety: Gas-Tight, Vibration-Proof Connection | Design: Finger-Safe, No Tools Required |
Description
WAGO’s 221 Series provides fast, reliable, and completely tool-free wire splicing for lighting, electrical, and low-voltage installations. Each connector uses WAGO’s proven CAGE CLAMP® spring technology, delivering a gas-tight, corrosion-resistant connection that outperforms screw terminals and prevents loosening from vibration or thermal cycling.

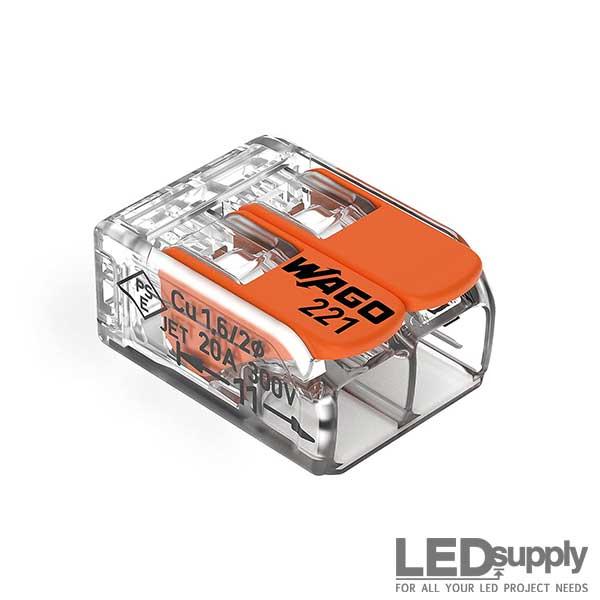

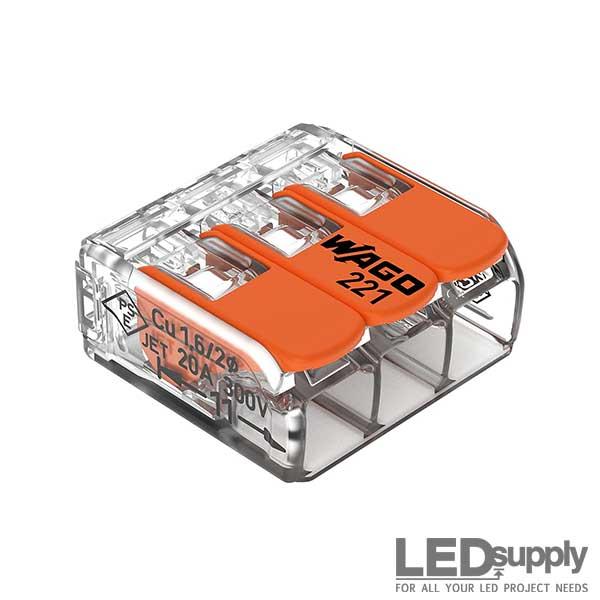

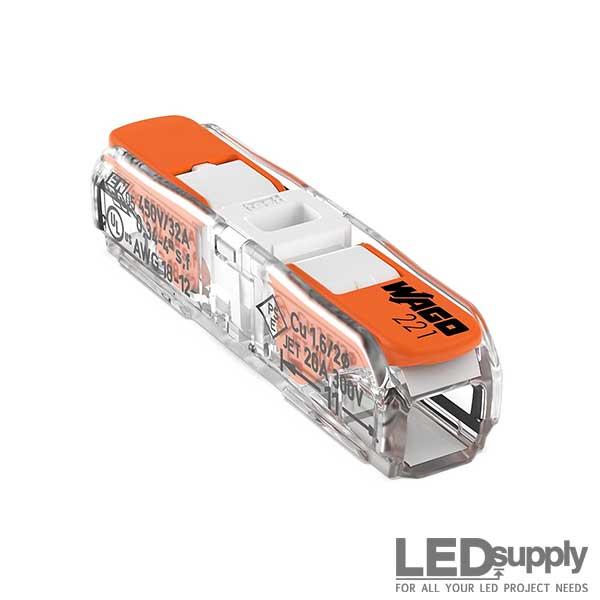

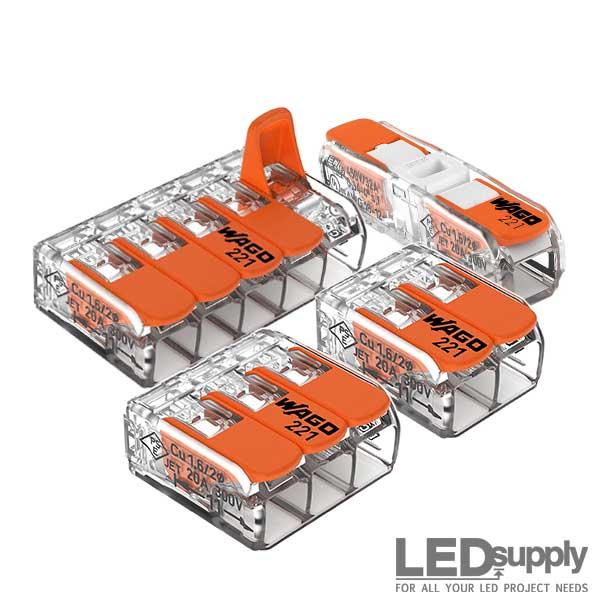

Available in four versions—Inline (221-2401), 2-Lever (221-412), 3-Lever (221-413), and 5-Lever (221-415)—these connectors support 24–12 AWG solid, stranded, and fine-stranded copper conductors. The transparent housing allows installers to visually confirm conductor seating, while the lever models include an integrated test port for easy verification.
All connectors are UL Listed to UL 486C for 600V/20A applications and are rated for T85 (85°C ambient) with a continuous temperature rating up to 105°C. With compact sizes, wide wire compatibility, and industry-leading long-term reliability, the WAGO 221 Series is the professional choice for quick, safe, and maintenance-free splicing installations.
Technical Documentation
P/N
Type
Conductors
Wire Range
(mm² / AWG)
(mm² / AWG)
Rated Voltage
(V)
(V)
Rated Current
(A)
(A)

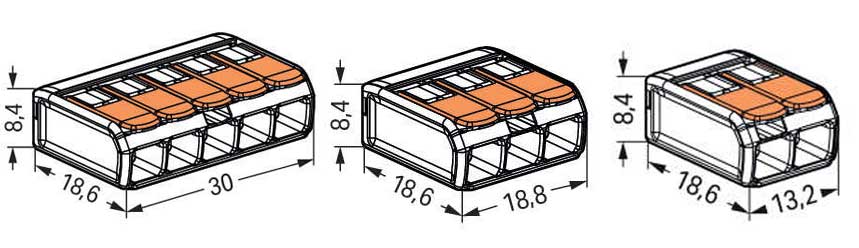

Dimensions
(W × H × L mm)
(W × H × L mm)
Weight
(g)
(g)
Documentation
221-2401
Inline Splicing Connector
2
0.2–4.0 mm² (24–12 AWG) solid/stranded;
0.34–4.0 mm² fine-stranded
0.34–4.0 mm² fine-stranded
450 (EN) / 600 (UL)
32 (EN) / 20 (UL)
8.1 × 8.9 × 35.5
2.4
221-412
2-Lever Splicing Connector
2
0.14–4.0 mm² (24–12 AWG)
450 (EN) / 600 (UL)
32 (EN) / 20 (UL)
13.1 × 8.3 × 18.6
1.7
221-413
3-Lever Splicing Connector
3
0.14–4.0 mm² (24–12 AWG)
450 (EN) / 600 (UL)
32 (EN) / 20 (UL)
18.8 × 8.4 × 18.6
2.5
221-415
5-Lever Splicing Connector
5
0.14–4.0 mm² (24–12 AWG)
450 (EN) / 600 (UL)
32 (EN) / 20 (UL)
30.0 × 8.4 × 18.6
4.0
Certifications & Compliance
Category
Specification
UL Certification
UL Listed to UL 486C — 600V / 20A Rating
EN / IEC Standards
EN 60998, EN 60664, IEC Safety & Connection Standards
Rated Voltage
450V (EN) / 600V (UL)
Rated Current
32A (EN) / 20A (UL)
Impulse Withstand Voltage
4 kV Rated Surge Voltage
Temperature Rating
T85 (85°C Ambient), 105°C Continuous Operation
Housing Material
Transparent Polycarbonate (PC) with Orange Lever
Conductor Material
Tin-Plated Copper Current Bar — Corrosion Resistant
Safety Features
Finger-Safe Housing, Clear Visibility, Tool-Free Operation
Environmental Compliance
RoHS Compliant, Halogen-Free Housing Materials
Full Documentation
221-2401
×
