12 Volt LED Light Engine - DynaSquare

More images

Regular Price: $4.94
Sale Price: $4.49
You Save: $0.45
PART #: LE202-R013xx12
10 - 49
50 - 99
100 - 249
250 - 499
First Class > $39.99
First Class



  • Outputs 150 Lumens!
  • Connect up to 20 at a time!
  • LED module designed and made in USA

Product Details

NO Driver Required! 12Vdc Constant Voltage Input Mid-Power LEDs: High-Performance Nichia 757 Diode
Lumen Output: Typically 150 Lumens Wattage: 1.5W
Typical Drive Current: 120mA Efficacy: 85 Lumens/Watt
Board Size: 1-Inch Square Optics: Compatible with Carclo 3-Up Optics
Color Temperatures: 2700K ~ 6500K & Horticulture Colors: Red, Green, Blue & Yellow

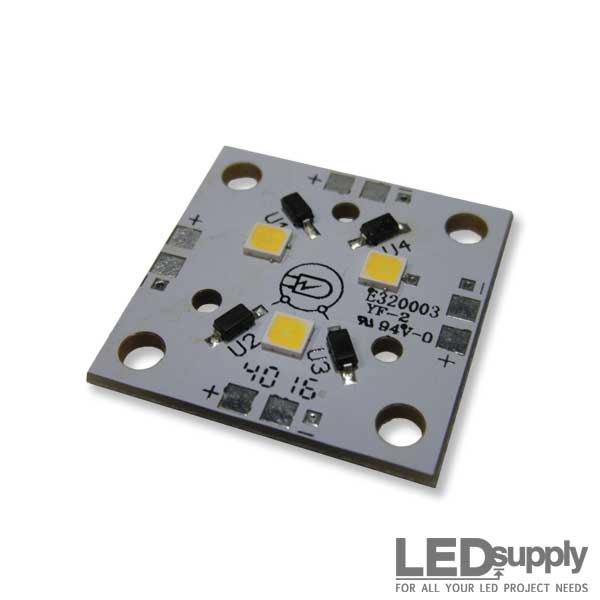

The LUXdrive™ DynaSquare is a discrete, constant voltage 12V LED light engine (No CC Driver Required!). The 1” square PCB houses 3 Nichia 757 high-performance, mid-power LEDs along with on-board drivers. The on-board driver circuitry makes it possible for the DynaSquare to accept constant voltage DC input from 11-15VDC. The DynaSquare is PWM dimmable, adding to the flexibility of the unit. The board and 757 LEDs can be used with Carclo 3-up Optics.

The DynaSquare runs at about 1.5 Watts and outputs up to 150 Lumens! It's perfect for lamp and luminaire applications and can also be extremely useful in panel and display lighting.

CCT, Colors and Horticulture Options

The DynaSquare LED is offered in a full-Color temperature (CCT) range from 2700K-6500K. Need color? We have that too: offered in Red, Yellow, Green & Blue.

There are also Horticulture options for small grow applications. The Horticulture DynaSquare utilizes Nichia 757 LEDs with a broad spectrum ideal for growing.


The LE202 DynaSquare accepts constant voltage from 11-15VDC, typically powered at 12V. At 12VDC the LEDs are receiving 120mA and the DynaSquare runs at 1.52 Watts. See below for the specific Electrical Specifications. Easily power the Draco from a USB port with this USB booster cable.


The DynaSquare LED light engine works with PWM dimming. This stands for Pulse Width Modulation which is a method of pulsing the current through the LEDs. Find a PWM dimmer that works with your system to control the light output of the DynaSquare!  You may also dim the DynaSquare with any of our 12Vdc constant voltage power supplies that include dimming, like the Mean Well ODLV, PWM, or HLG series.

Board Design

The DynaSquare PCB board has convenient .125" diameter mounting holes, that are .125" from each corner. We recommend 4-40 machine mounting screws and the washers should not exceed .25" in diameter.

The board design makes it possible to connect multiple boards together (as shown below). The solder connections on each of the four sides make for plenty of different wiring setups. Please contact us at LEDSupply before connecting more than 20 DynaSquares together at one time. The LEDs can also be wired in parallel off of the same power supply. Just make sure your power supply has sufficient wattage (1.5 Watts for every DynaSquare).

Technical Documentation

Product Selection (TJ= 25° C @ 120mA)

Color LEDSupply
Part Number
Part Number
Performance @ 120mA
Typical Forward Voltage
Luminous Flux
Board Dimensions
Inches (LxWxH)
Min. Typ. Max.
2700K LE202-R01382712 NFSL757G-27 11 12 15 130 1 X 1 X 0.115
3000K LE202-R01383012 NFSL757G-30 11 12 15 130 1 X 1 X 0.115
3000K GROW LE202-R013H3012 NFSL757GT-Rsp0a 11 12 15 130 1 X 1 X 0.115
3500K LE202-R01383512 NFSL757D-35 11 12 15 130 1 X 1 X 0.115
4000K LE202-R01384012 NFSL757G-40 11 12 15 132 1 X 1 X 0.115
5000K LE202-R01385012 NFSW757G-50 11 12 15 132 1 X 1 X 0.115
5000K GROW LE202-R013H5012 NFSW757GT-Rsp0a 11 12 15 135 1 X 1 X 0.115
6500K LE202-R01386512 NFSW757G-65 11 12 15 136 1 X 1 X 0.115

Absolute Maximum Ratings

Parameter Maximum Performance
Input Voltage 15VDC
LED Junction Temperature 120°C
Operating Temperature -40°C - 100°C
Storage Temperature -40°C - 100°C
