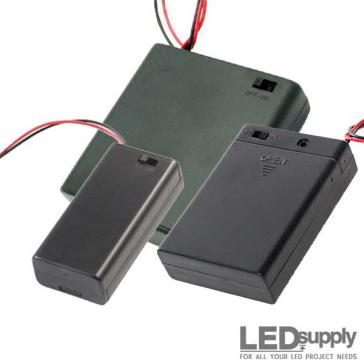

AA Battery Holders with Switch and Leads
Click to enlarge
More images
|
|
; "AA Battery Holders with Switch and Leads")
; "AA Battery Holders with Switch and Leads")
; "AA Battery Holders with Switch and Leads")
; "AA Battery Holders with Switch and Leads")
; "AA Battery Holders with Switch and Leads")
Product Details
Featured Specifications
| Standard AA Battery Holders | Includes 6-Inch Red/Black Wire Leads |
| Includes On/Off Switch | Material: Black ABS Resin |
| Wire: AWG #26, Black and Red, Stripped & Tinned 5mm | 0.6mm 65C Spring Wire |
| RoHS Complaint | Contact Plating: Nickel |
Description
The AA Battery Holders here are made from black ABS resin and designed with a removable cover that includes an on/off power switch; the battery holder also includes wire leads to make it easy to connect.
Available options include: 2-Cell, 3-Cell, 4-Cell and 8-Cell holders, each circuit designed with the batteries in-series. Using a standard 1.5V AA battery for example would give the following outputs with each holder: 2AA=3V, 3AA=4.5V, 4AA=6V and 8AA=12V.
Technical Characteristics
| MODEL No. | BH-XAA-SWITCH (X = number of cells) |
| BH-2AA-SWITCH DIMENSIONS | 2.69" (L) x 1.39" (W) x 0.73" (H), 68.4mm (L) x 35.4mm (W) x 18.6mm (H) |
| BH-3AA-SWITCH DIMENSIONS | 2.70" (L) x 1.89" (W) x 0.736" (H), 68.5mm (L) x 48mm (W) x 18.7mm (H) |
| BH-4AA-SWITCH DIMENSIONS | 2.68" (L) x 2.56" (W) x 0.748" (H), 68.0mm (L) x 65mm (W) x 19mm (H) |
| BH-8AA-SWITCH DIMENSIONS | 4.76" (L) x 2.31" (W) x 0.65" (H), 120.9mm (L) x 58.67mm (W) x 16.51mm (H) |
| SPRING | 0.6mm 65C Spring Wire Nickel Platel |
| CONTACT | 0.3m/m Thick Iron Nickel Plated |
| PLASTIC MATERIAL | A.B.S. Black Resin IPS |
| SIDES | Single Sided |
| WIRE | AWG #26 Black and Red Strip and Tinned 5mm |
