Antares Cree XP-G3 LED Light Module by LUXdrive

More images

Regular Price: $13.19
Sale Price: $11.99
You Save: $1.20
PART #: 0J016
VOLUME DISCOUNTS
PCS
% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class > $39.99
FREE
First Class
$3.99
Ground
$11.99
2-Day
$13.99
Express
CALC

Purchase

82 PCS IN-STOCK

ORDER BY 3PM EST FOR
SAME DAY SHIPPING
  • 4 XP-G3 LED Emitters
  • Super-Bright!
  • Mates with Khatod Nactus Optic

Product Details

XLamp Reliability: SC3 Silicone Carbide Technology Colors: Cool-White, Neutral-White & Warm-White
Lumen Output: Up to 2800 Viewing Angle: 125-230° (No Optic)
Secondary Optics: Khatod Nactus Gasketed Optics Board Size: 2.3" x 2.9"
Max Drive Current: Up to 2000mA Efficacy: 147 Lumen per Watt


Description

The LUXdrive™ (Made in the USA) Antares Cree XP-G3 LED light module is an off-the-shelf solution to quickly move from prototype to finished LED lighting fixture. The rectangular printed circuit board employs four (4) Cree XP-G3 emitters. The Antares is built with all 4 LEDs connected in series by 0-ohm jumpers, however, if needed the LEDs can be addressed individually. The LED light module was built to work with Khatod Nactus Smart (Nactus 4) optics, silicone gasket and non-gasket options.

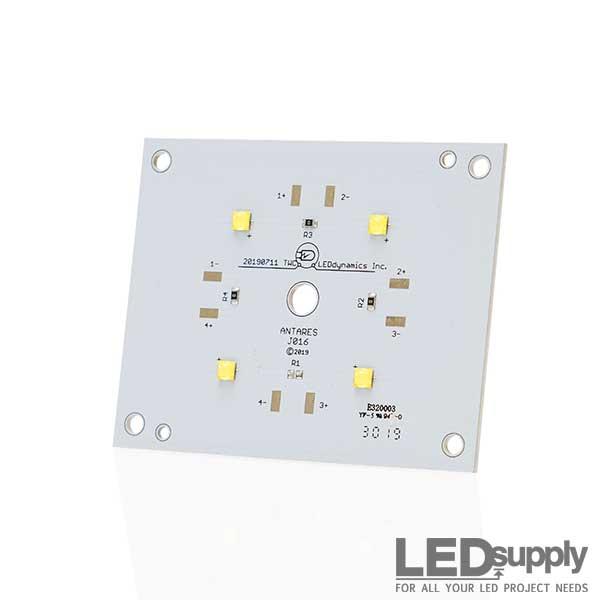

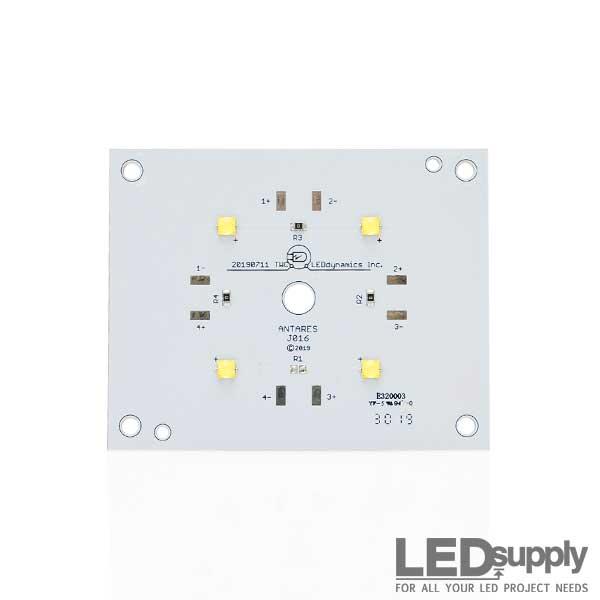

The Antares PCB and LED:

The board itself (2.3" x 2.9") can be mounted in several ways; first it has four cutouts in each corner that can be used for mounting screws (#4 screws), in addition it has a center hole for mounting without the optic.

The landpad on this PCB is 3.45 X 3.45mm and can be used with the Cree XLamp: XT-E, XP-E2, XP-G3, XP-L2, etc. and any other LED manufacturer using a 3535 pad. Currently, we offer the Antares with a Cree XLamp XP-G3 LED. Please find CCT, CRI and more LED details in the tables below and or contact us with your specific requirements.

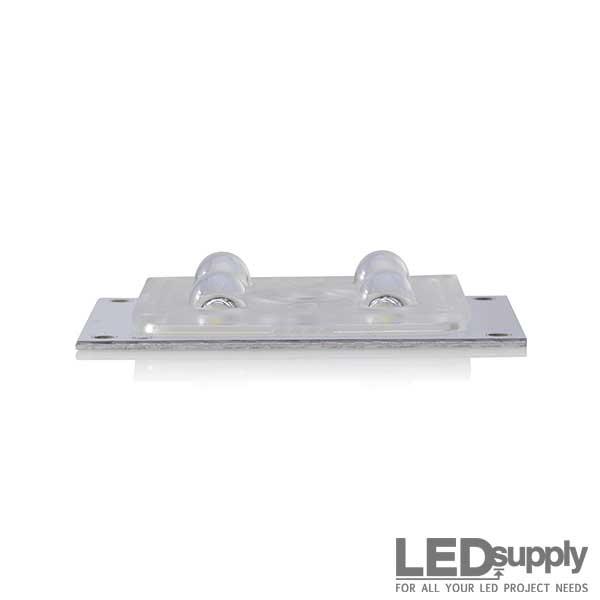

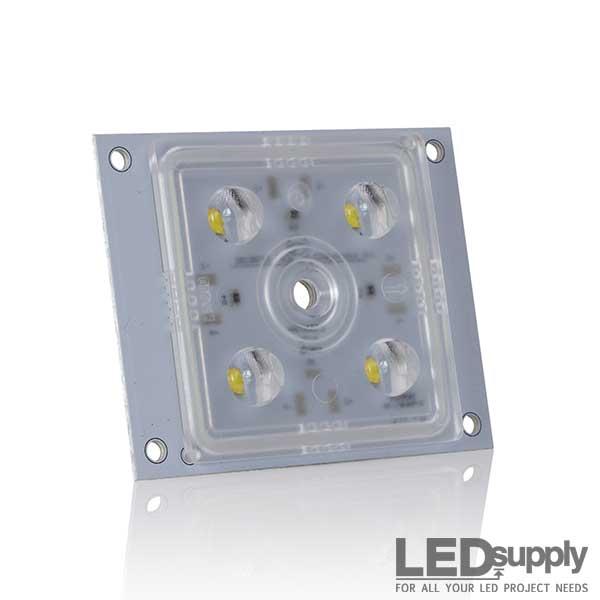

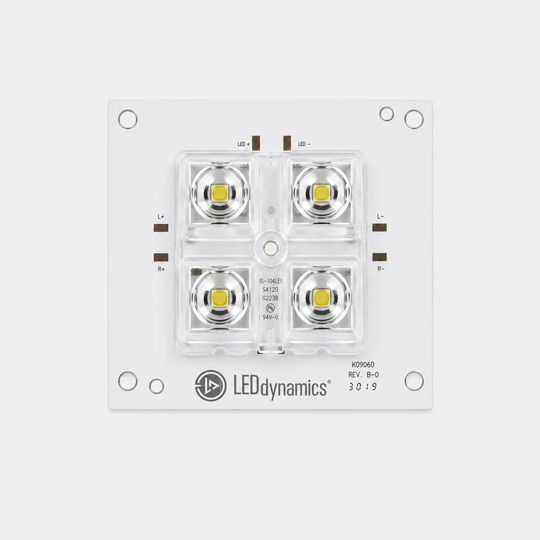

Antares LED with Khatod Lens

Khatod Lens:

The LUXdrive Antares LED board was made to work with the Khatod Nactus SMART Optical system with 5 lenses. The Nactus SMART optic line features a variety of models that offer many different ways to customize your LED lighting fixtures. These premium optics have the option to come with a silicone gasket to make your unit IP protected. The Antares paired with these optics are perfect for street lighting and general directional lighting of all kinds.



Technical Documentation

FLUX CHARACTERISTICS (TJ= 85° C)

Part Number CCT
(Kelvins)
CRI Base Order Codes
Min. Luminous Flux (lm) @ 350mA
Khatod Optics
Group Flux (lm)
@ 85°C
Vf
@ 350mA
Name Angle (FWHM) Part #
J016-CG30827R4 2700 K 80 R4 476 10.8 Narrow Beam 47° KO-KNAC0420AIP
J016-CG30830R5 3000 K R5 556 Medium Beam 85° KO-KNAC0407AIP
J016-CG30840S2 4000 K S2 592 Medium Beam 90° KO-KNAC0421AIP
J016-CG30750S3 5000 K 70 S3 624 Wide Beam 135° KO-KNAC0419AIP
J016-CG30765S4 6500 K S4 656 Rectangular Beam 145° x 120° KO-KNAC0418AIP



Characteristics
Unit
Min.
Typical
Max.
Thermal Resistance, junction to solder point (XP-G3)
°C/W
1.75
Viewing Angle
°Degree
125°
DC Forward Current
mA
350
2000
Forward Voltage (85°C)
V
10.8
12.24



Full Documentation
