Luxeon C - RGB High Power LED Star

More images

Regular Price: $10.99
Sale Price: $9.99
You Save: $1.00
PART #: J036-L1C1RGB00
VOLUME DISCOUNTS
PCS
% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class > $39.99
FREE
First Class
$3.99
Ground
$11.99
2-Day
$13.99
Express
CALC

Purchase

31 PCS IN-STOCK

ORDER BY 3PM EST FOR
SAME DAY SHIPPING
  • Red, Green & Blue diodes on 20mm Star
  • Control Colors Individually
  • Great for color changing & mixing

Product Details

Luxeon C Part#: L1C1-RED1000000000 - (Red) 2.00 Vf (Red) - Forward Voltage 350mA
Luxeon Rebel Part#: L1C1-GRN1000000000 - (Green) 3.05Vf (Green) - Forward Voltage 350mA
Luxeon Rebel Part#: L1C1-BLU1000000000 - (Blue) 2.84Vf (Blue)- Forward Voltage 350mA
150° C - Max Junction Temperature 120° - Viewing Angle

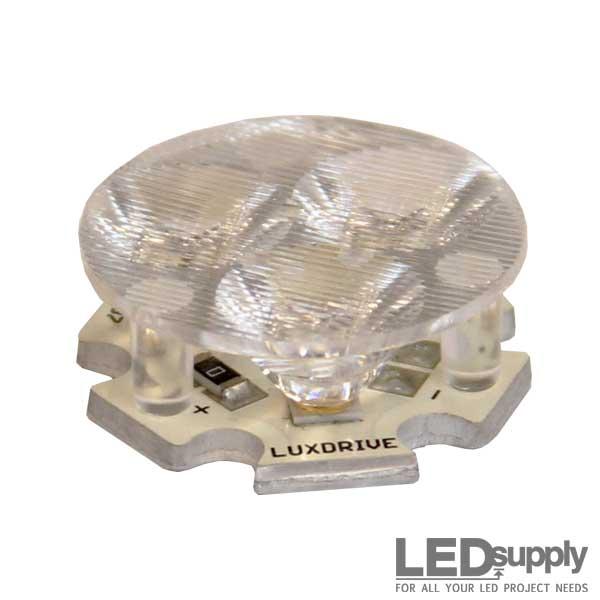

Each Color is individually controllable Fits Carclo Triple (3-Up) Optic


Description

The RGB Luxeon C Saiph Star LED uses the famous Red, Blue, and Green Luxeon C LEDs on a single board. Each of the three LEDs is reflow soldered to a 20mm hexagonal metal core printed circuit board (MCPCB) and is individually addressable via solder pads. The small footprint of the C1 emitter allows for close proximity of the LEDs, creating a more accessible platform for mixing colors. The MCPCB is electronically isolated, 20mm in diameter, and designed to hold Carclo triple (3-Up) optics. These secondary lenses mix the RGB light into one beam in spot, medium, wide and elliptical patterns. Individual specifications and documentation on each color are listed below.



Technical Documentation

Luxeon C Basic Information

Color Luxeon C # Typical @ 350mA
Forward Voltage Luminous Flux
RED L1C1-RED1000000000 2VDC 49
GREEN L1C1-GRN1000000000 3.05VDC 141
BLUE L1C1-BLU1000000000 2.84VDC 43

Notes for Table

  • Lumileds maintains a tolerance of ±6.5% on luminous flux measurements. PC Amber, Mint and Lime are binned by chromaticity coordinates. Far Red, Deep Red, Royal Blue and Violet are binned by peak wavelength. All other colors are binned by dominant wavelength.
  • Far Red, Deep Red, Royal Blue and Violet are binned by radiometric power. All other colors are binned by luminous flux.



Optical Characteristics

Color Dominant OR
Peak Wavelength
Typ. Spectral
Half-Width (nm)
Typ. Temperature Coefficient
of Peak Wavelength (nm/°C)
Typ. Total
Included Angle
(degrees)
Typ. Viewing Angle
(degrees)
Min. Max.
Red 624nm 634nm 20 0.06 175 162
Green 520nm 540nm 30 0.04 175 170
Blue 465nm 485nm 20 0.03 175 170

Notes for Optical Characteristics Table

  • Lumileds maintains a tolerance of ±6.5% on luminous flux measurements. PC Amber, Mint, and Lime are binned by chromaticity coordinates. Far Red, Deep Red, Royal Blue, and Violet are binned by peak wavelength. All other colors are binned by dominant wavelength.
  • Spectral half-width is the spectral bandwidth at 50% of the peak intensity.
  • Total angle at which 90% of total luminous flux is captured.
  • Viewing angle is the off-axis angle from the LED centerline where the luminous intensity is ½ of the peak value.



Electrical Characteristics at 350mA, TJ=85°

Color Part Number Forward Voltage (Vf) Typ. Temperature Coefficient
of Forward Voltage (mV/°C)
Typ. Thermal Resistance
Junction to Thermal Pad (°C/W)
Min. Typ. Max.
Red L1C1-RED1000000000 1.75 2.00 2.50 -1.6 2.8
Green L1C1-GRN1000000000 2.50 3.05 3.50 -2.4 3.5
Blue L1C1-BLU1000000000 2.50 2.84 3.50 -2.6 3.5

Notes for Table

  • Lumileds maintains a tolerance of ±0.06V on forward voltage measurements.
  • Measured between 25°C & 85°C



Absolute Maximum Ratings

Parameter Far Red/Deep Red Red/Red-Orange/Amber/PC Amber Green/Cyan Blue/Royal Blue Lime/Violet
DC Forward Current (mA) 700 1050 1050 1050 1225
Peak Pulsed Forward Current (mA) 875 1300 1300 1300 1500
LED Junction Temperature 135°C 120°C 135°C 135°C 135°C
ESD Sensitivity Class 3B
LED Storage Temperature -40°C - 135°C
Soldering Termperature JEDEC 020c 260°C
Allowable Reflow Cycles 3
Reverse Voltage Luxeon C LEDs are not designed to be driven in reverse bias
