90° Bendable White Indoor LED Strip Light — 24V, 4W/ft, IP20

Description

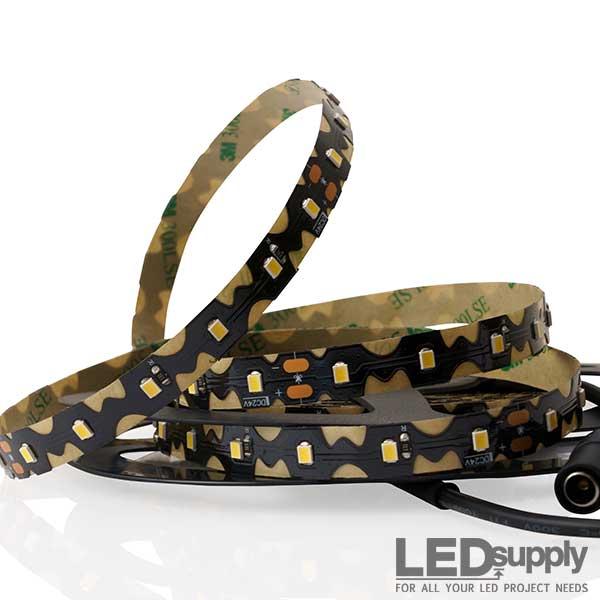

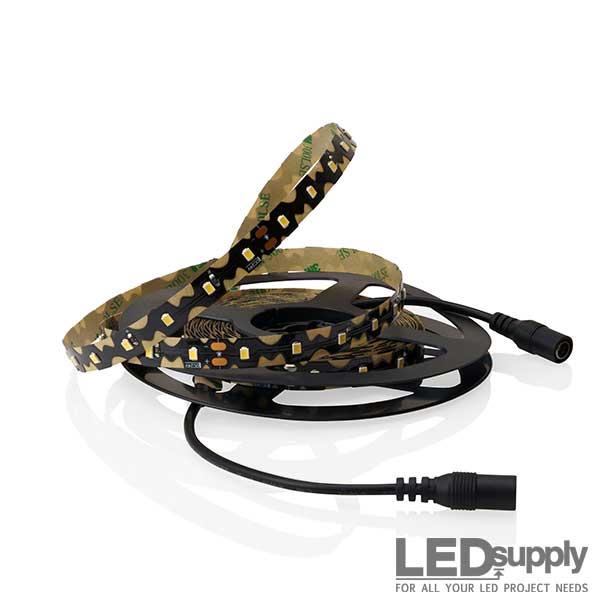

This 24V bendable white LED strip is designed to flex side-to-side and around 90° turns, making it ideal for corners, curves, lettering, displays, signage, and other layouts that are difficult for conventional LED strip. The IP20 strip uses 60 LEDs/m and is available in multiple white color temperatures and custom lengths.

Looking for color-changing output? View the 90° Bendable RGB LED Strip Light.

Available White Color Temperatures

90° Bendable Design

The unique zig-zag PCB allows the strip to bend side-to-side and navigate turns that normally require cutting and reconnecting standard LED strip. This helps simplify installations around corners, curves, letters, shapes, and other custom layouts while reducing the number of wire connections required.

Lengths & Cutting

Available in 3 ft, 6 ft, 9 ft, 12 ft, and full 16.4 ft (5m) roll lengths. The strip can be cut every 4 inches at the marked copper cut points for custom fitting.

Installation & Mounting

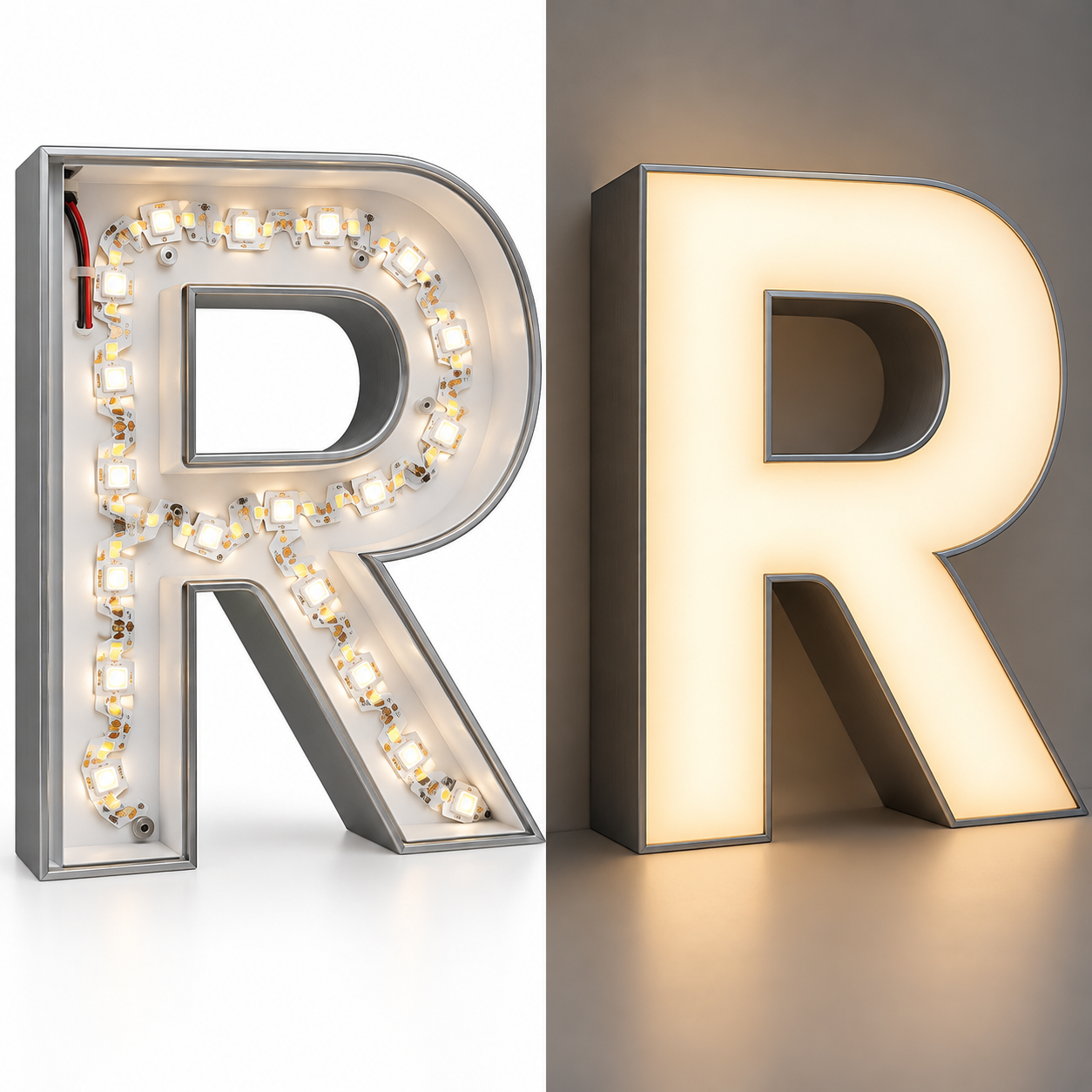

The flexible PCB includes 3M adhesive backing for mounting to clean, smooth surfaces. Its side-bending construction is especially useful for signage, display lighting, shelving, outlines, curved features, and installations where a traditional straight-bending strip would require multiple sections and connections.

Power & Dimming

A 24V DC power supply is required. The strip uses approximately 12W/m and is PWM dimmable using a compatible 24V dimmer installed between the power supply and LED strip. Size the power supply for the total connected strip length with appropriate additional capacity.
