COB LED Flexible Strip Lights

More images

Regular Price: $21.99
Sale Price: $19.99
You Save: $2.00
PART #: LO-10COB-xxx-xx
VOLUME DISCOUNTS
PCS
% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
Shipping Information*
First Class
FREE
Fedex 2-Day
$7.99
FedEx Ground
$8.99
UPS Ground
$9.99
FedEx Express
CALC

Purchase

0 PCS IN-STOCK

ORDER BY 3PM EST FOR
SAME DAY SHIPPING
  • Smooth output, No Spots!
  • 180 degree Wide Beam Angle
  • New LED Strip Tech!

Product Details

LED Density: 512 LEDs / M Colors: Red, Green Blue, White (3000K, 4000K & 6000K)
Lumens: 1400/M Power: 24VDC
Wattage: 14Watts/M Mounting: Doubled-Sided 3M Tape, or Clips
Cuttable: Every 2.46" Custom Lengths: Sold in 3-Foot Increments up to 5M (16.4ft)
Size: 10mm Wide X 1.6mm Tall Connection: 2.1mm Female Plug


Description

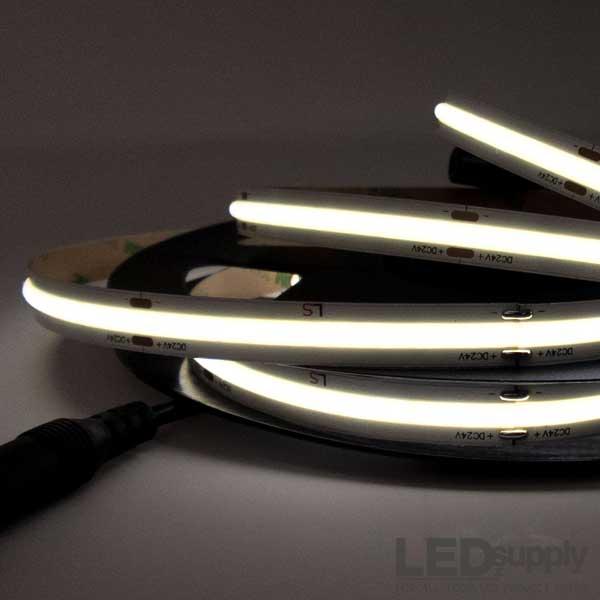

LED Strip Light GuideOur Flexible COB LED Strip Light series creates a seamless line of light from start to finish. The all new strip design uses flip chip LEDs to eliminate visible LED dots (hot spots). The all new chip-on-board technology not only improves light quality, but also improves thermal management and flexibility of the strip. The smaller LEDs can be packed tighter and weigh much less than the bulkier 5050 LEDs, creating a strip that can work around your applications needs. The spotless output make the COB LED strips ideal for narrow applications like display cases and backlighting, or where reflective surfaces such as granite and tile are used.

High Output, Quality Light

The COB LED Flex Strips hold a whopping 512 LEDs per Meter which create 1400 Lumens/M of smooth continuous light emitting at 180 degrees. The wide viewing angle and continuous stream of light make this a serious upgrade from the flexible strip lights you are used to.

Colors

LEDSupply’s COB LED strips are offered in: Red, Green, Blue, Warm White 3000K, Neutral White 4000K & Cool White 6000K.

Custom Lengths

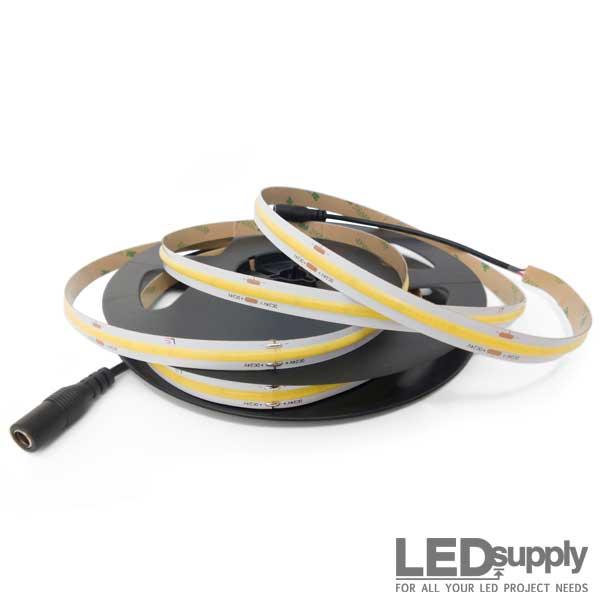

Unlike most suppliers, we offer COB LED strip lights in smaller 3-foot increments up to 16.4 feet long (1 Reel = 5M). Some applications might need a shorter section of strips which is why the LED strips can be cut ever few inches. You can cut the strip along the cut marks which feature a thin black line running over solder pads. Max Run Length = 2 full reels - 32.8ft.

End-to-End Connections

cutting and connecting led flex strip

When there is a break in your application you can still run one strip to another using 20-24 gauge wire or LED strip connectors. TAKE NOTE: COB LED Strips maximum run length is 32.8 feet (2 reels). After the maximum run length the voltage drop becomes too great and you will lose light and efficiency from your system. If your application needs more than the maximum run length you will have to get another power supply or run wire from the extra strip directly back to the first power supply (wiring in parallel).

Connections can be made by soldering wire in between strips or by using solderless clamps. Only one end of the strips come with wires on it so if you want to make more connections you will need to solder or use strip connectors. Here is a good tutorial on wiring the strips together if you'd like more information.

Power

The strips need 24VDC input. This requires either a battery or 24V Power Supply. The strips run at 14 Watts/M. Please make sure you have enough wattage when running your specified length.

Connecting to power can easily be done with simple wire-to-wire techniques such as soldering, wire nuts, electrical tape, etc. If you have a plug-in adapter with a barrel plug on the end, these screw-in terminal power plugs help turn the wire leads into a simple plug in connection.

Dimming

The strips are fully dimmable and can be used with 24V PWM dimmers. The dimmer will go between your power supply and strips. Find compatible controllers below in the PWM Dimmers section.

If you require an AC Dimming Control from Lutron or Leviton, use a dimmable power supply.

Powering and   Dimming LED Flex Strip



Need Help with LED Strips?

Guide to LED Strip Lights

DIY Tutorial: Accent Lighting with LED Flex Strips

DIY Tutorial: Setting Up Color Changing LED Strips



Technical Documenataion

P/N
Color
Kelvin (K), Wavelength (nm)
Beam Angle
°
Luminous Flux
(lm/m>
CRI
Efficacy
(lm/w)
Input Voltage
(VDC)
Power
(W/m)
LO-10COB-WWT
Warm-White
3000K
180°
1400
>90
100
24
14
LO-10COB-NWT
Neutral-White
4000K
180
1400
>90
100
24
14
LO-10COB-CWT
Cool-White
6000K
180
1400
>90
100
24
14
LO-10COB-RED
RED
N/A
180
-
80
-
24
14
LO-10COB-GRN
Green
N/A
180
-
80
-
24
14
LO-10COB-BLU
Blue
N/A
180
-
80
-
24
14
