Slim 15mm Surface Mount LED Channel Kit for 10mm/0.5" LED Strip - 1M Length inc. Optical Lens & End Caps

More images

Slim 15mm Surface Mount LED Channel Kit for 10mm/0.5" LED Strip - 1M Length inc. Optical Lens & End Caps

Slim 15mm Surface Mount LED Channel Kit for 10mm/0.5

Regular Price: $21.71

Sale Price: $18.14

You Save: $3.57

Part No. LO-TRACK-1M

Manufacturer: LEDmate

HIGHLIGHTS

Low-profile 6mm height for discreet surface mounting
Frosted diffuser softens visible LED points for a cleaner finish
Anodized aluminum provides durable mounting and helps dissipate heat
Fits LED strips up to 10mm wide
15.8mm overall width · 1-meter length
Includes diffuser, 2 end caps, and 2 mounting clips

CONFIGURE & BUY

Purchase

PN: LO-TRACK-1M

THIS OPTION IS TEMPORARILY UNAVAILABLE

QTY

1085 PCS IN-STOCK

Ordering for a larger project?
Ask about volume pricing

VOLUME DISCOUNTS
QTY	10 - 49	50 - 99	100 - 249	250 - 499
% OFF	2.5%	5%	7.5%	10%

Order by 3pm ET for
same-day shipping.

Free shipping available, click here for details.

Product Details

LO-TRACK-1M · Slim15 surface-mount kit

A finished line of light. Just 6mm high.

Give LED strip lighting a clean, durable mounting surface without routing a groove. The Slim15 aluminum channel mounts directly beneath cabinets, shelves, and furniture, with a frosted cover that keeps the installation neat and discreet.

6mm highLow-profile surface mount

Up to 10mmLED strip width

15.8mm wideOverall channel width

1 meterChannel length · approx. 39.4 in.

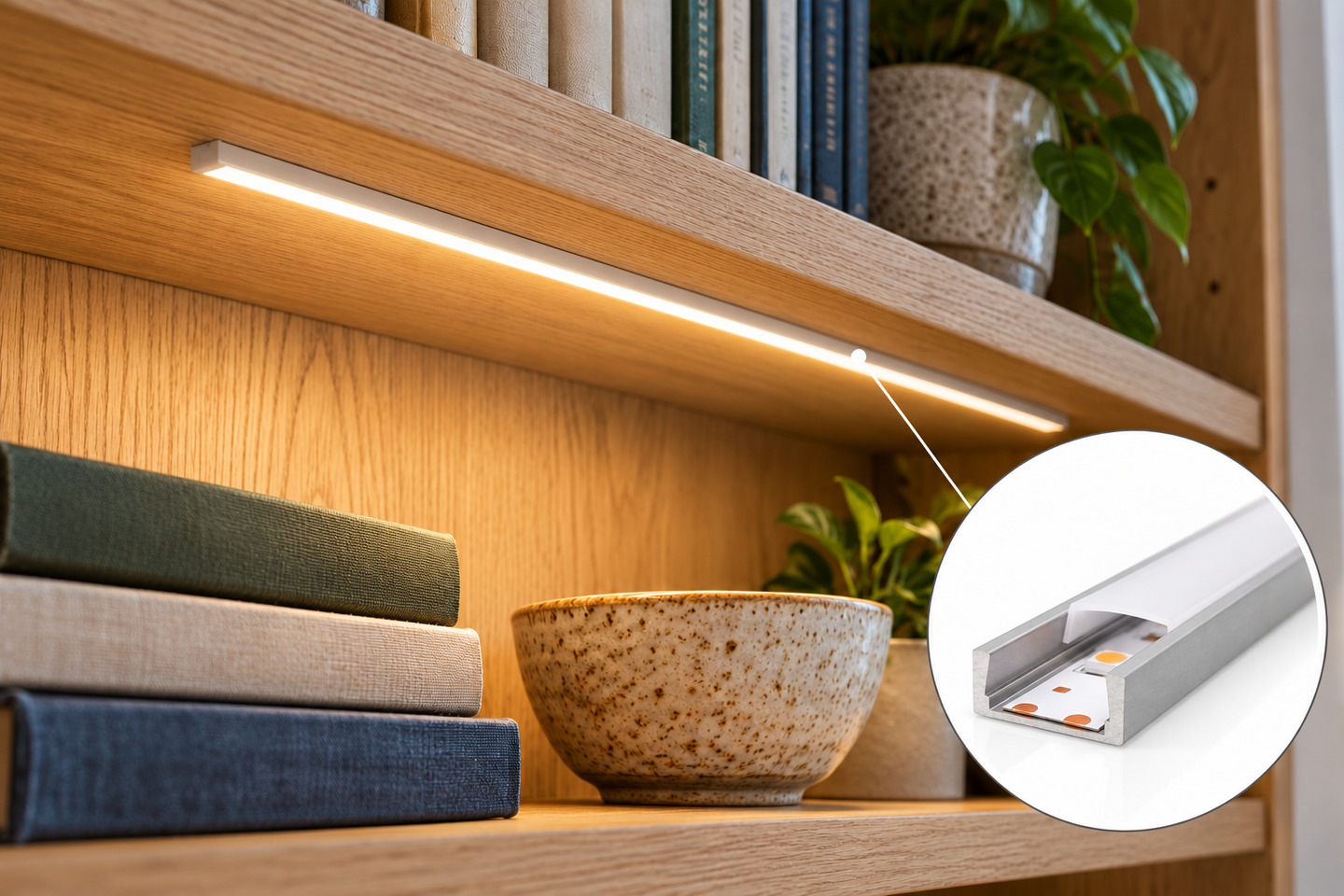

Illustrated shelf-lighting installation with a circular close-up of the LO-TRACK-1M slim aluminum channel and frosted cover — LED strip and power supply sold separately.

A small upgrade. A cleaner installation.

Make the lighting part of the furniture.

Mounted beneath a shelf, Slim15 directs light onto the display below while keeping the strip neatly housed. Its shallow profile also suits under-cabinet task lighting and furniture accents.

A more finished appearance

The frosted cover conceals the exposed strip and softens visible LED points for a cleaner appearance.

A solid mounting surface

Anodized aluminum provides a straight, durable base and helps conduct heat away from the strip.

Simple surface mounting

Use the included clips to secure the channel to a flat surface. Wire-entry end caps finish the ends and provide a tidy path for the leads.

Included with each channel

1-meter anodized aluminum surface-mount channel
Frosted diffuser cover
2 end caps and 2 mounting clips

LED strip, power supply, mounting screws, and optional mounting tape are sold separately.

Check your fit

LO-TRACK-1M cross-section: 15.8mm overall width, 6mm height and 11.2mm internal width

Choose a strip up to 10mm wide. Check connector width and height, especially beneath this shallow lens. Dimensions shown in millimeters.

For the smoothest visible line in this shallow channel, consider a compatible COB strip. Visible LED points depend on the strip selected; the diffuser alone does not guarantee a dot-free result.

Building a complete lighting solution? Explore LED strips or call (802) 728-6031 for help matching your strip, power, and controls.
