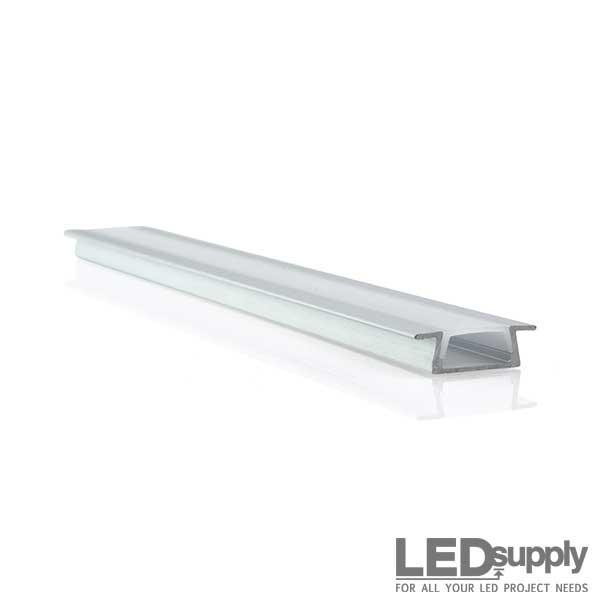

Recessed Mount, Slim (6mm Height) for 10mm LED Strip - inc. Diffuser Lens, End Caps, Mounting Clips

More images

Recessed Mount, Slim (6mm Height) for 10mm LED Strip - inc. Diffuser Lens, End Caps, Mounting Clips

Regular Price: $17.56

Sale Price: $14.99

You Save: $2.57

Part No. LO-TRACK-RS

Manufacturer: LEDmate

HIGHLIGHTS

Recessed profile creates a clean, built-in lighting finish
Trim flanges neatly cover the edges of the mounting groove
Frosted diffuser softens visible LED points
Anodized aluminum supports the strip and helps dissipate heat
Fits strips up to 10mm wide · 21.7mm overall width × 5.7mm height
1-meter kit includes diffuser, 2 end caps, and 2 mounting clips

CONFIGURE & BUY

Purchase

PN: LO-TRACK-RS

THIS OPTION IS TEMPORARILY UNAVAILABLE

QTY

179 PCS IN-STOCK

Ordering for a larger project?
Ask about volume pricing

VOLUME DISCOUNTS
QTY	10 - 49	50 - 99	100 - 249	250 - 499
% OFF	2.5%	5%	7.5%	10%

Order by 3pm ET for
same-day shipping.

Free shipping available, click here for details.

Product Details

LO-TRACK-RS · Slim recessed channel kit

Build the light into the surface.

Give cabinets, shelves, and millwork an integrated line of light. This shallow aluminum channel sits inside a routed groove, with slim trim flanges covering the groove edges for a neat, built-in finish.

RecessedFlanged trim for a finished edge

Up to 10mmLED strip width

21.7 × 5.7mmOverall width × height

1 meterChannel length · approx. 39.4 in.

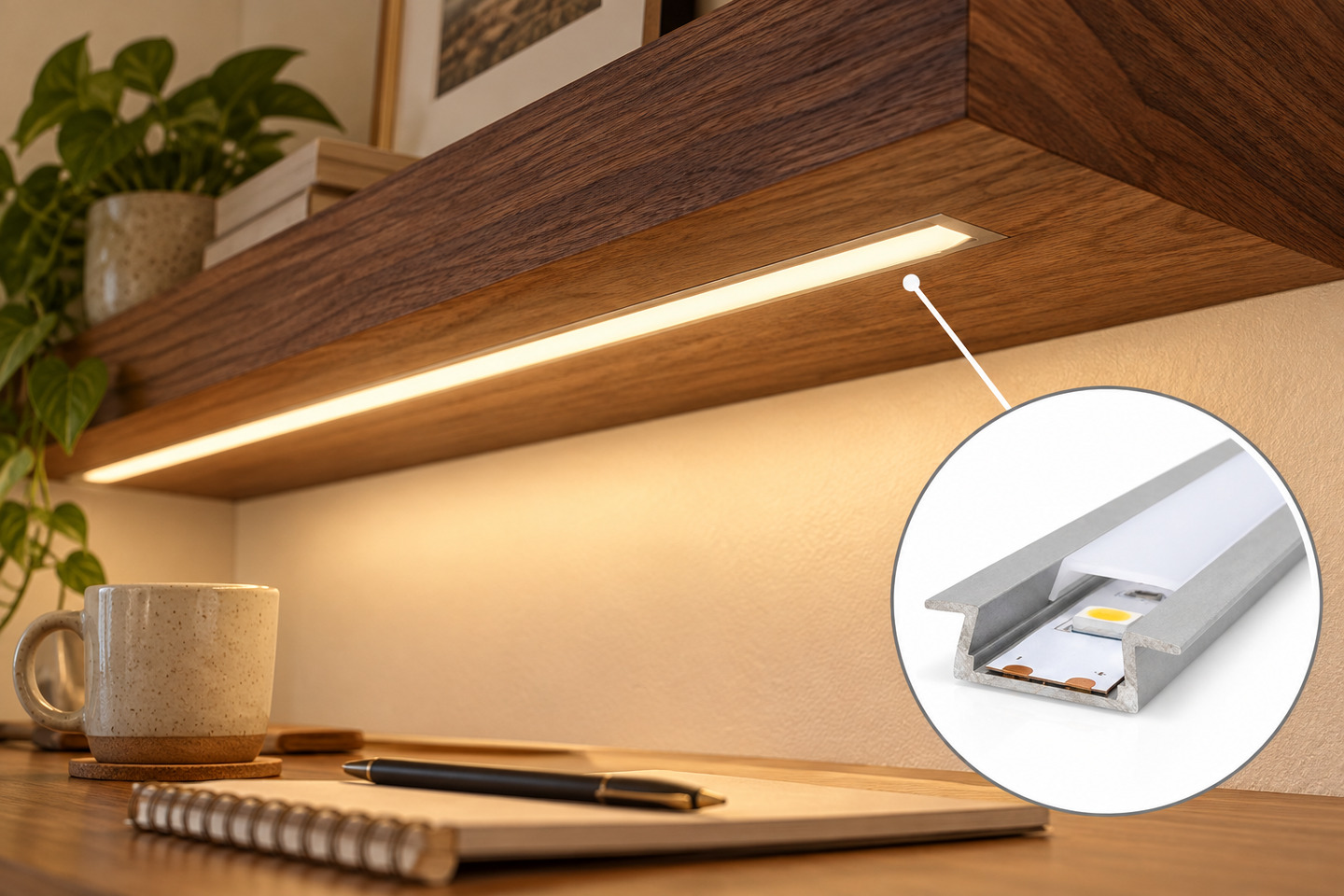

Illustrative walnut shelf installation showing an LED channel recessed into the underside, with thin trim edges and a circular product close-up — LED strip and power supply sold separately.

A small upgrade. A cleaner installation.

A built-in finish for custom millwork.

Set the channel into the underside of a shelf or cabinet to light the surface below. The body is concealed within the wood, leaving the diffuser and narrow aluminum trim visible.

Clean edges around the recess

The flanges overlap the groove edges, creating a tidy transition between the channel and surrounding surface.

A softer line of light

The frosted cover conceals the exposed strip and softens visible LED points for a more finished appearance.

A durable aluminum base

Anodized aluminum keeps the strip neatly supported and helps conduct heat away from the LEDs.

Included with each channel

1-meter anodized aluminum recessed channel
Frosted diffuser cover
2 end caps and 2 mounting clips

LED strip, power supply, mounting screws, and optional mounting tape are sold separately.

Plan the recess. Check the fit.

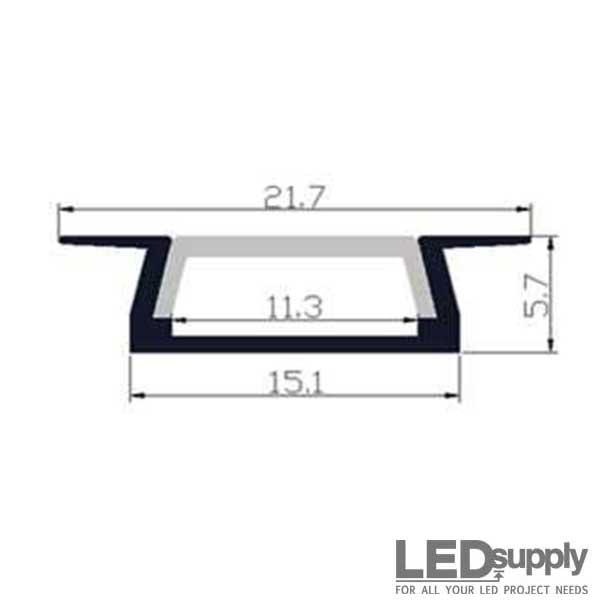

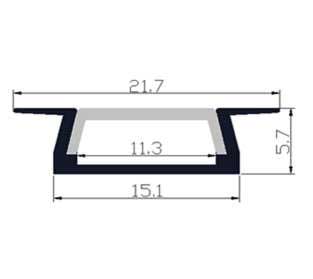

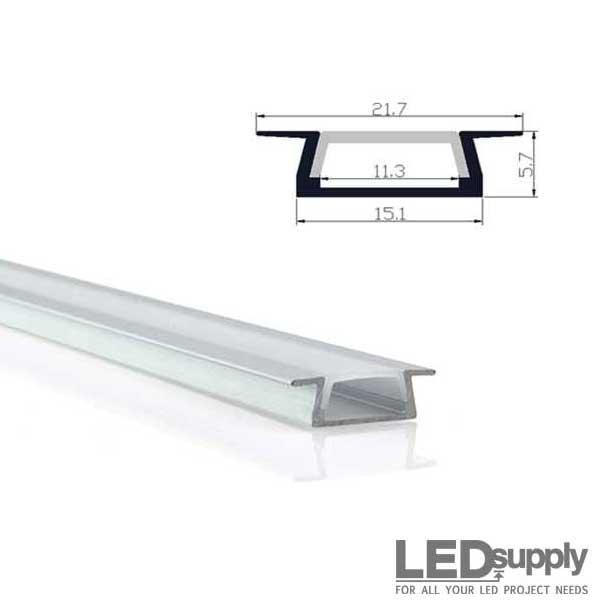

Channel cross-section: 21.7mm overall flange width, 15.1mm body width, 11.3mm internal width and 5.7mm height

Fits LED strips up to 10mm wide. The drawing shows a 15.1mm body width; 21.7mm is the overall width across the trim flanges. Dimensions are in millimeters.

Measure the actual channel, mounting hardware, and wire path before routing. Allow clearance for connectors and strip coatings beneath the shallow lens.

For the smoothest visible line, consider a compatible COB strip. The diffuser alone does not guarantee a dot-free result.

Building a complete lighting solution? Explore LED strips or call (802) 728-6031 for help matching your strip, power, and controls.
