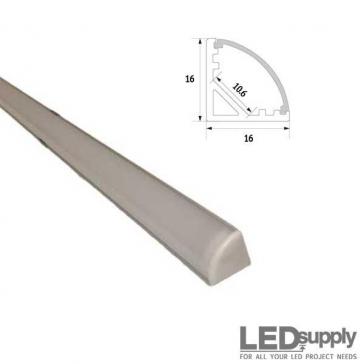

16mm Corner Channel Kit for 10mm LED Strip - Inc. Rounded Diffuser Lens, End Caps

More images

16mm Corner Channel Kit for 10mm LED Strip - Inc. Rounded Diffuser Lens, End Caps

Regular Price: $18.71

Sale Price: $15.14

You Save: $3.57

Part No. LO-TRACK-AM

Manufacturer: LEDmate

HIGHLIGHTS

45° corner profile directs light beneath cabinets and shelves
Frosted diffuser softens visible LED points for a cleaner finish
Anodized aluminum provides durable mounting and helps dissipate heat
Fits LED strips up to 10mm wide
Compact 16 × 16mm profile · 1-meter length
Includes diffuser, 2 end caps, and 2 mounting clips

CONFIGURE & BUY

Purchase

PN: LO-TRACK-AM

THIS OPTION IS TEMPORARILY UNAVAILABLE

QTY

193 PCS IN-STOCK

Ordering for a larger project?
Ask about volume pricing

VOLUME DISCOUNTS
QTY	10 - 49	50 - 99	100 - 249	250 - 499
% OFF	2.5%	5%	7.5%	10%

Order by 3pm ET for
same-day shipping.

Free shipping available, click here for details.

Product Details

LO-TRACK-AM · Corner channel kit

Give your strip lighting a finished home.

Turn an exposed LED strip into a neatly mounted line of light. This compact aluminum corner channel positions the strip at 45°—ideal for directing light out from beneath cabinets, shelves, and display corners.

45°Strip mounting orientation

Up to 10mmLED strip width

16 × 16mmCompact corner profile

1 meterChannel length · approx. 39.4 in.

LED strip and power supply sold separately.

A small upgrade. A cleaner installation.

Light where you need it.

Fit the channel into the junction beneath a cabinet or shelf. Its angled strip position directs light down and outward toward the surface below.

A more finished appearance

The rounded frosted cover conceals the exposed strip and softens the appearance of individual LEDs.

A solid mounting surface

Anodized aluminum provides a straight, durable base and helps conduct heat away from the strip.

Tidy edges and ends

The cover and end caps enclose the strip for a cleaner look, with mounting clips included to secure the channel.

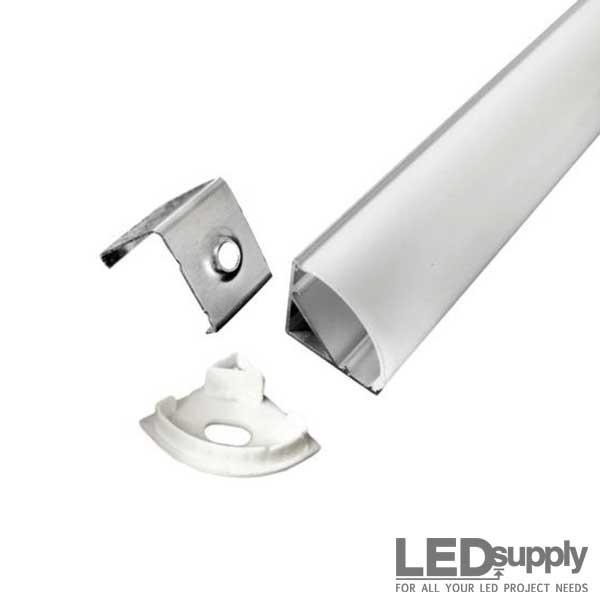

Included with each channel

1-meter anodized aluminum corner channel
Rounded frosted diffuser cover
2 end caps and 2 mounting clips

LED strip, power supply, mounting screws, and optional mounting tape are sold separately.

Check your fit

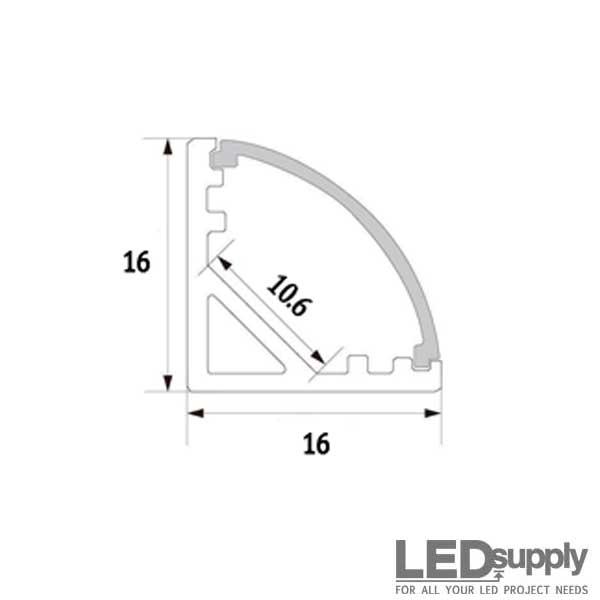

LO-TRACK-AM cross-section: 16mm wide by 16mm high, with 10.6mm internal diagonal strip bed

Choose a strip up to 10mm wide. Allow space for any connectors or coating beneath the lens. Dimensions shown in millimeters.

For the smoothest visible line, consider a compatible COB or closely spaced LED strip. The diffuser alone does not guarantee a dot-free result.

Building a complete lighting solution? Explore LED strips or call (802) 728-6031 for help matching your strip, power, and controls.
