90° Bendable RGB Indoor LED Strip Light — 24V, 4W/ft, IP20

Description

This 24V bendable RGB LED strip combines vibrant color-changing light with a unique side-to-side flexible design that can navigate 90° turns without cutting and reconnecting the strip. It is ideal for corners, curves, lettering, displays, signage, outlines, and other custom indoor layouts.

Looking for white light? View the 90° Bendable White LED Strip Light.

RGB Configuration

90° Bendable Design

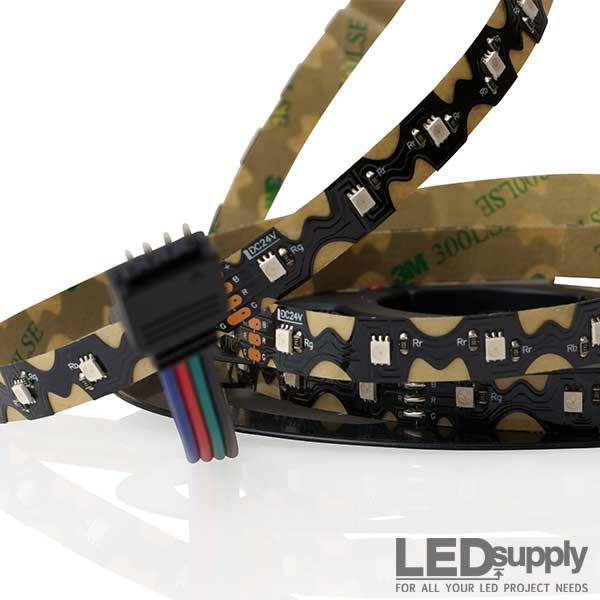

The unique zig-zag PCB allows the strip to bend side-to-side and around 90° turns that would normally require cutting and reconnecting standard LED strip. This can simplify complex installations while reducing wire connections, installation time, and extra materials.

RGB Color Control

An RGB controller is required to independently control the red, green, and blue channels. Compatible controllers allow you to mix colors, adjust brightness, and create dynamic color-changing effects.

Lengths & Cutting

Available in 3 ft, 6 ft, 9 ft, 12 ft, and full 16.4 ft (5m) roll lengths. The strip can be cut every 4 inches at the marked copper cut points for custom fitting.

Installation & Mounting

The flexible PCB includes 3M adhesive backing for mounting to clean, smooth surfaces. Its side-bending construction is especially useful for signage, display lighting, shelving, outlines, curved features, and installations where traditional LED strip would require multiple sections and connections.

Power & Control

A 24V DC power supply and compatible RGB controller are required. The strip uses approximately 14.4W/m. Size the power supply for the total connected strip length with appropriate additional capacity.
