LED Wall Washer Strip with 20° Optics – High CRI & Tight Beam Angle
More images
Regular Price: $108.89
Sale Price: $98.99
You Save: $9.90
PART #: R3030-IP67-xxx
VOLUME DISCOUNTS
PCS
% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class > $39.99
FREE
First Class
$3.99
Ground
$11.99
2-Day
$13.99
Express
CALC
Purchase
ORDER BY 3PM EST FOR
SAME DAY SHIPPING
SAME DAY SHIPPING
- 20° Integrated Lens for Precise Grazing
- 90+ CRI, Warm to Cool White & RGBW
- 24VDC Input, Cut Every 1.31”
Share:
Product Details
| LUMEN OUTPUT: Up to 1800 lm/m (549 lm/ft) | CRI: High CRI >90 (1-bin, 3-step MacAdam) |
| CCT OPTIONS: 2700K, 4000K, 6500K & RGBW (2700K White) | BEAM ANGLE: 20° Secondary Optics for Grazing |
| INPUT VOLTAGE: 24VDC | POWER CONSUMPTION: 18W/m (5.49W/ft) |
| LED TYPE: SMD 3030 (3-step binning) | LED DENSITY: 30 LEDs/m |
| CUTTABLE LENGTH: Every 33.3mm (1.31") | MAX RUN LENGTH: 5M (16.4ft) |
| IP RATING: IP67 – Indoor/Outdoor Use | LIFESPAN: 50,000 hours, 3-5 Year Warranty |
Description

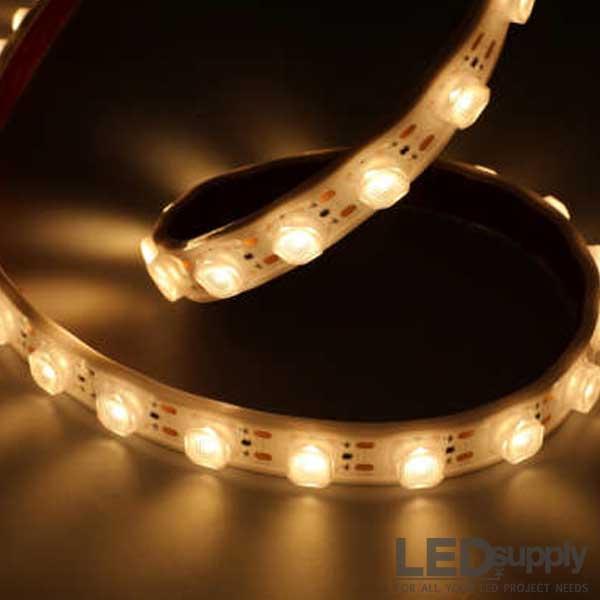

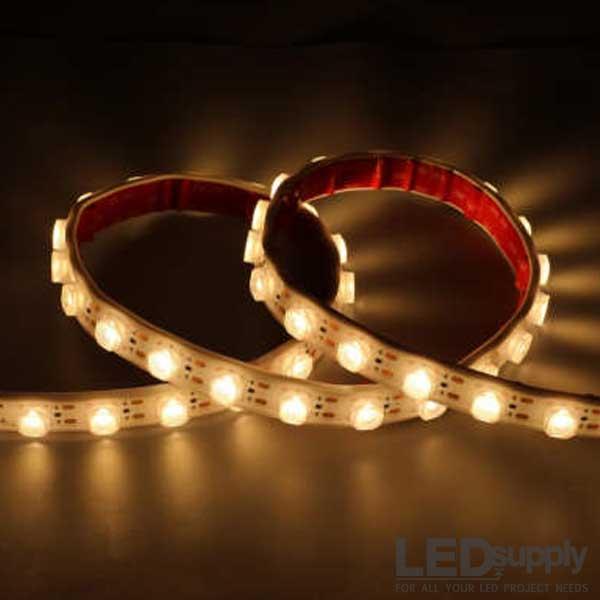

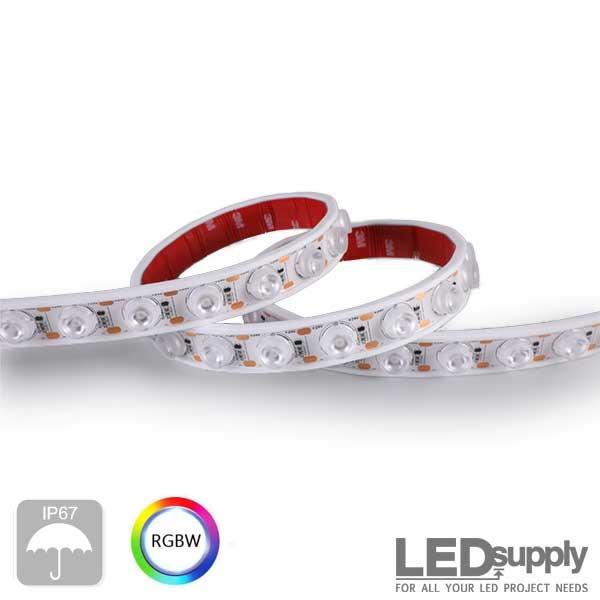

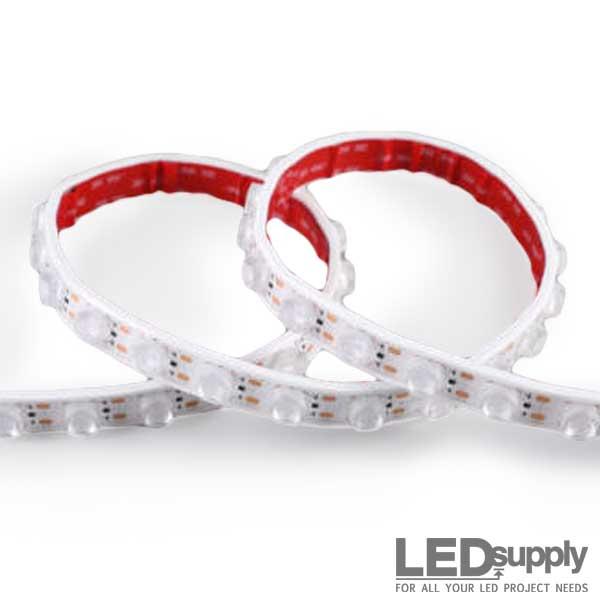

The LED Flexible Wall Washer Strip redefines architectural lighting by combining high-performance 3030 LEDs with integrated 20° optical lenses, creating a precise, narrow beam ideal for wall grazing, façade contouring, and accent applications.
Designed with high CRI >90, 3-step MacAdam binning, and available in 2700K, 4000K, 6500K and RGBW (with 2700K white), this strip delivers consistent and vibrant illumination with minimal color shift. The tight beam angle creates a strong vertical gradient perfect for hotels, museums, retail spaces, and exterior facades.
This 24VDC flexible strip consumes only 18W per meter, with cut points every 33.3mm (1.31") for precision fitting. Each strip is IP67 rated, encapsulated in silicone for long-lasting outdoor durability.
Whether you're grazing textured stone or highlighting trim features, this LED wall washer provides unmatched control and aesthetic impact with ease of installation.

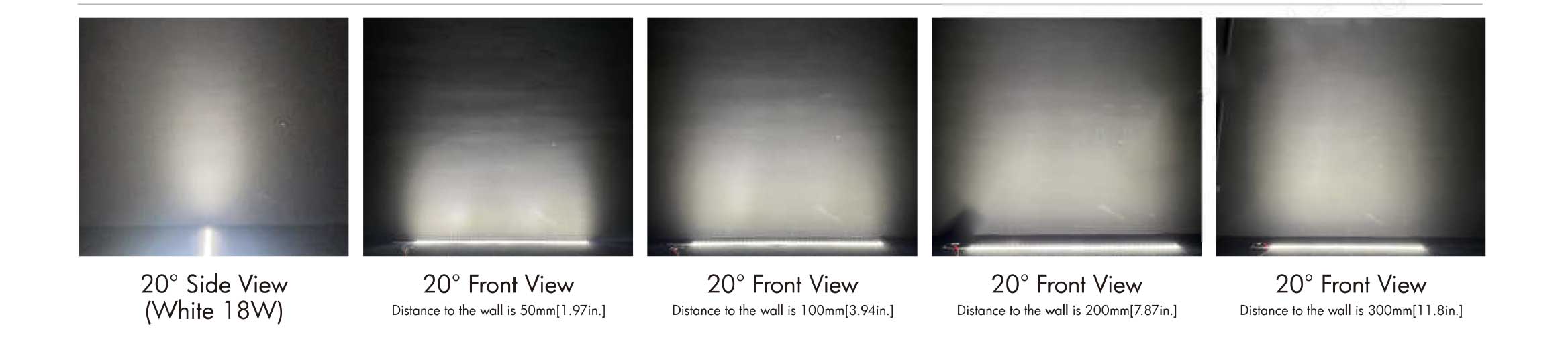

Beam Patterns:
Technical Documentation
Specifications
Specification
Details
Beam Angle
20° (Integrated Secondary Optic)
Input Voltage
24VDC
Power Consumption
18W/m (5.49W/ft)
Lumen Output
Up to 1800 lm/m (549 lm/ft)
LED Type
SMD 3030 (3-Step MacAdam Bin)
LED Density
30 LEDs/m
Color Options
2700K, 4000K, 6500K, RGBW (2700K White)
CRI
>90 (High CRI)
Cuttable Segment
Every 33.3mm (1.31")
Max Run Length
5 meters (16.4 ft)
Dimensions
W23mm x H13.5mm (0.9" x 0.53")
IP Rating
IP67 – Indoor/Outdoor Use
Lifespan
50,000 Hours
Warranty
3-5 Years (Outside/Inside Application)
×
