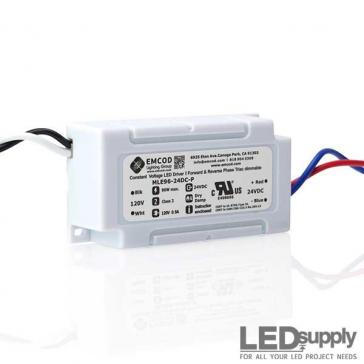

EMCOD MLE-P TRIAC Dimmable Power Supplies

More images

Regular Price: $55.60
Sale Price: $51.71
You Save: $3.89
PART #: MLEXX-XXDC-P
VOLUME DISCOUNTS
PCS
% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class > $39.99
FREE
First Class
$3.99
Ground
$11.99
2-Day
$13.99
Express
CALC

Purchase

0 PCS IN-STOCK

ORDER BY 3PM EST FOR
SAME DAY SHIPPING
  • TRIAC Dimmable 12/24V Power Supply
  • Use your current dimmer for LED strips!
  • Works with most Lutron and Leviton!

Product Details

INPUT: 120V 50/60Hz OUTPUT VOLTAGE: 12VDC or 24VDC Options
DIMMABLE: Standard MLV, ELV, CL: Incandescent TRIAC (Leading Edge)  Efficiency: 87-89%
WATTAGE: 60W (12V only),  or 96W (24V only) CONNECTION: 18AWG Wire Connections
MINIMUM LOAD: 5% CERTIFIED: UL Recognized 8750 & 1310, Class 2, IP20
WARRANTY: 5-Years SAFETY: Short Circuit & Over-Voltage Auto-Reset


Description

Introducing the MLE-P Series from Electro-Magnetic Component Optimal Design (EMCOD), now available at LEDsupply.com. Assembled in the USA, this exceptional line of products offers a cost-effective solution for your 12V and 24V applications with TRIAC dimming. The MLE-P Series features an extremely compact, low-profile design that fits seamlessly into a 4" junction box, making it ideal for a variety of installations. With its constant voltage, phase-dimmable capabilities, this driver is compatible with both forward and reverse phase dimmers, ensuring smooth, flicker-free dimming performance. Click here for a list of compatible dimmers.

Engineered with a robust plastic housing, the MLE-P Series provides superior protection against overloads and short circuits while maintaining excellent line and load regulation. Operating at a wattage of 60W or 96W, it supports both 12VDC and 24VDC outputs at 120Hz and requires an input voltage of 120V 50/60Hz. Recognized by UL for the US and Canada, and certified under Class 2, UL8750, and UL1310 standards, this driver is suitable for both dry and damp locations. Experience the reliability and efficiency of the MLE-P Series, and elevate your lighting projects with this high-quality, American-assembled solution.



Technical Documentation

Comparison Specifications

Model Max Load Input Output Dimensions
(L) x (W) X (H)
Inches
VAC Current @
Max Load
VDC Current @
Max Load
MLE60-12DC-P 60W 120 0.54A 12V 5.0A 3.3 X 1.57 X 0.98
MLE96-24DC-P 96W 120 1A 24V 4A 3.34 X 1.77 X 1.02


Full Documentation
