Luxeon C Color LEDs

More images

Regular Price: $4.95
Sale Price: $4.49
You Save: $0.46
PART #: J03x-L1C1xxx
VOLUME DISCOUNTS
PCS
% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
Shipping Information*
First Class
FREE
Fedex 2-Day
$9.99
FedEx Ground
$8.99
UPS Ground
$9.99
FedEx Express
CALC

Purchase

0 PCS IN-STOCK

ORDER BY 3PM EST FOR
SAME DAY SHIPPING
  • Many colors for a wide spectrum range
  • Flawless color mixing!
  • Architectural & specialty lighting

Product Details

Colors: Far Red, Deep Red, Red, Red-Orange, Amber, PC Amber, Lime, Green, Cyan, Blue, Royal-Blue & Violet Max Drive Current: Varies by Color, see Table below
One Focal Length: allows for flawless color mixing & max. optical efficiency Wide Viewing Angle: 145-170°
Secondary Optics: Compatible with Single & Triple Carclo Optics Binned: High Flux and Leading Hot & Cold Performance
C Emitter Size: 2mm X 2mm Max. Junction Temp.: 135°C



Description

The Luxeon C Color Line of LEDs are designed for flawless color mixing. The focal length of each LED is identical which maximizes optical efficiency in design. This makes the LED perfect for delivering accurate colors for a wide variety of applications. With an all new low dome design, it keeps the light source small while still improving upon light output. The Luxeon C Color line is fantastic for architectural lighting, entertainment lighting, emergency vehicle lighting as well as color tunable lights.

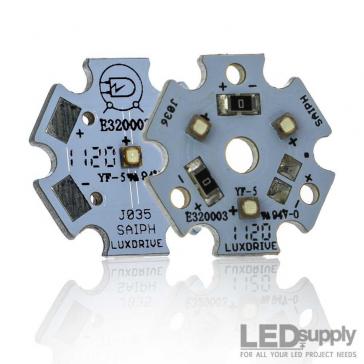

1-up luxeon c led star versus 3-up led star

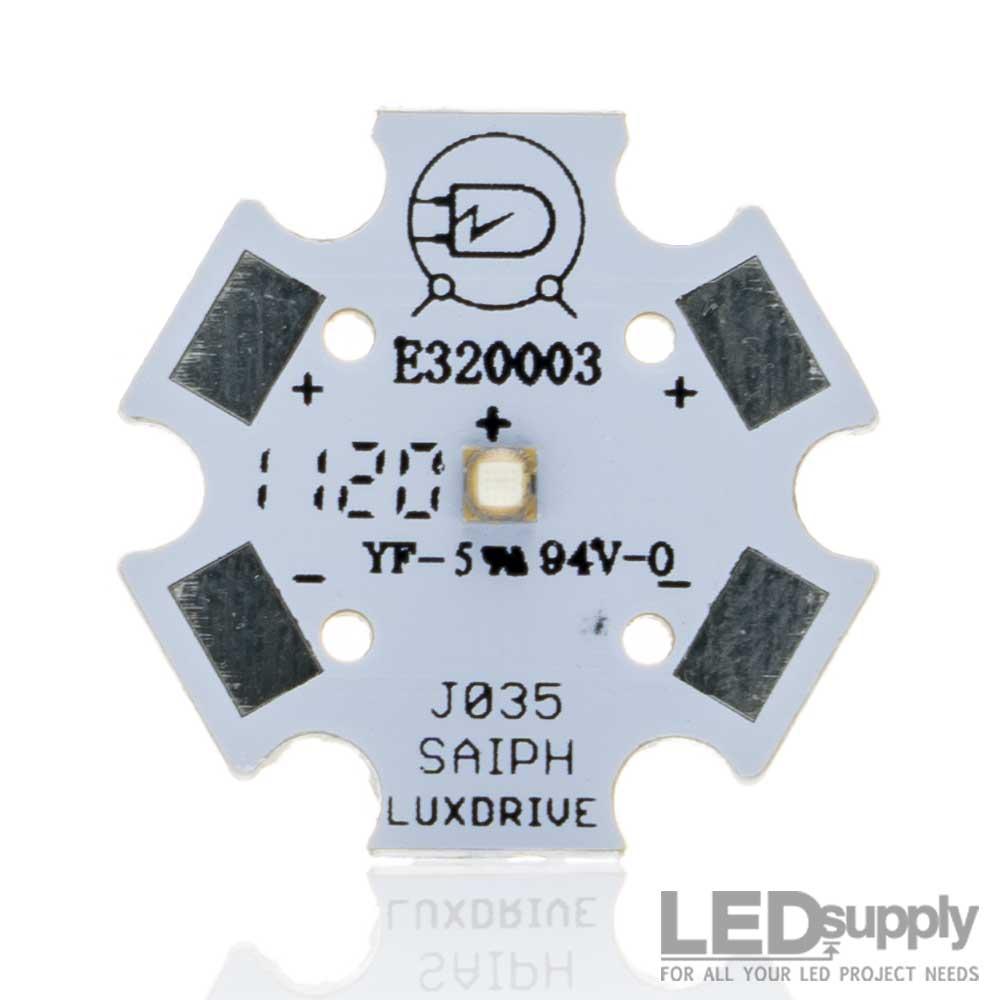

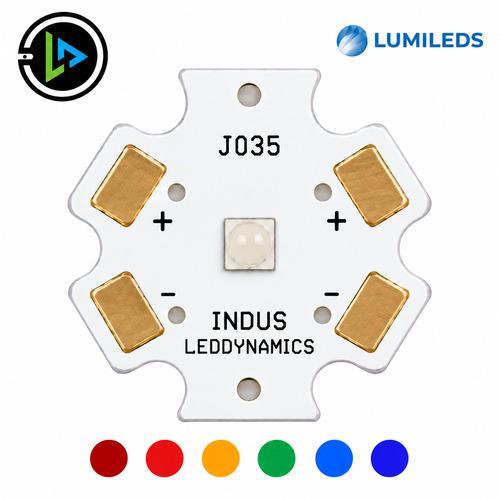

LED Star MCPCB

LuxDrive created a new Saiph Star metal core printed circuit board to account for the smaller 2x2mm package. The Saiph Star MCPCB comes in a single (1-Up: 1 LED) and a triple (3-Up: 3 LEDs). The 1-Up Saiph Star board is a single LED reflow soldered to a 20mm hexagonal (LED Star) MCPCB. The MCPCB has four large solder pads for easy solder connections. The 3-Up Saiph Star board is three (3) LEDs reflow soldered in-series to a 20mm hexagonal MCPCB. The 3-Up MCPCB has two solder pads for connections, mounting holes for secondary carclo optics and a center hole for wires or securing the LED star to a heat sink.

Colors

The colors available are:  Far Red, Deep Red, Red, Red-Orange, Amber, PC Amber, Lime, Green, Cyan, Blue, Royal Blue & Violet. Dominant or Peak Wavelength for each color can be found in the performance table below.

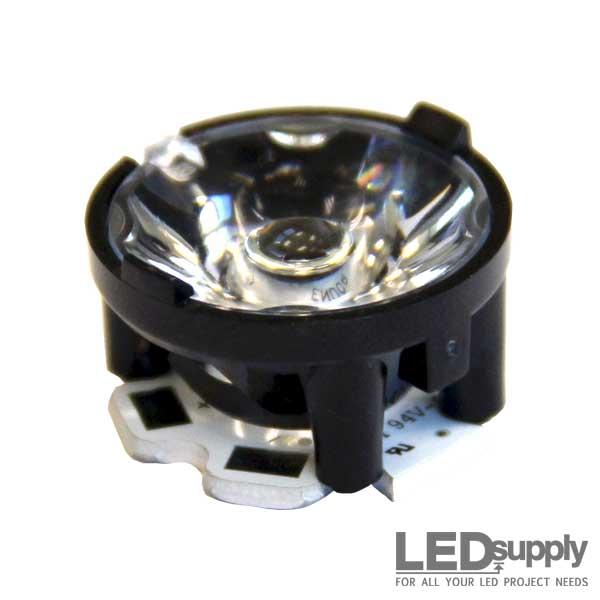

1-up led star optic versus 3-up led star optic

Secondary Optics

Both versions (1-Up & 3-Up) are designed to work with secondary optics from Carclo; Carclo is a leader in molded poly-carbonate lens systems. The 1-Up secondary lens system combines a plastic holder and lens that sits on top of the 1-Up MCPCB, while the 3- Up optic is a one-piece system with three legs that sit down into corresponding holes on the 3-Up MCPCB. These secondary optics focus light into narrow, medium, wide and elliptical patterns. More option informatino and options are available on this page under the Accessories tab above.

Images, Part Numbers & Notes

Select the LED options near the 'add to cart' button to see the corresponding product image and part number. For referencing detailed specifications there are tables and downloadable documentation below.  Important Note: Unless noted otherwise the specifications list are for a single Luxeon C Color LED. This means that in most cases the values need to be tripled for applications with the 3-Up version. For Example, if the forward voltage listed is 2.95V @ 350mA, the 3-Up version would be 8.85V.



Technical Documentation

Product Performance at 350mA, TJ= 85° C

Color LEDSupply # Luxeon # Luminous Flux (lm) or Radiometric Power (mW)
1-Up # 3-Up # Minimum Typical
Far Red J035‐L1C1FRD J036‐L1C1FRD L1C1-FRD1000000000 190 340
Deep Red J035‐L1C1DRD J036‐L1C1DRD L1C1-DRD1000000000 280 380
Red J035‐L1C1RED J036‐L1C1RED L1C1-RED1000000000 35 49
Red-Orange J035‐L1C1RDO J036‐L1C1RDO L1C1-RNG1000000000 45 60
Amber J035‐L1C1AMB J036‐L1C1AMB L1C1-AMB1000000000 20 30
PC Amber J035‐L1C1PCA J036‐L1C1PCA L1C1-PCA1000000000 80 94
Lime J035‐L1C1LME J036‐L1C1LME L1C1-LME1000000000 125 135
Green J035‐L1C1GRN J036‐L1C1GRN L1C1-GRN1000000000 90 141
Cyan J035‐L1C1CYN J036‐L1C1CYN L1C1-CYN1000000000 65 100
Blue J035‐L1C1BLU J036‐L1C1BLU L1C1-BLU1000000000 25 43
Royal Blue J035‐L1C1ROY J036‐L1C1ROY L1C1-ROY1000000000 480 532
Vioilet J035‐L1C1VLT J036‐L1C1VLT L1C1-VLT1000000000 480 595

Notes for Table

  • Lumileds maintains a tolerance of ±6.5% on luminous flux measurments. PC Amber, Mint and Lime are binned by chromaticity coordinates. Far Red, Deep Red, Royal Blue and Violet are binned by peak wavelength. All other colors are binned by dominant wavelength.
  • Far Red, Deep Red, Royal Blue and Violet are binned by radiometric power. All other colors are binned by luminous flux.



Optical Characteristics

Color Dominant OR
Peak Wavelength
Typ. Spectral
Half-Width (nm)
Typ. Temperature Coefficient
of Peak Wavelength (nm/°C)
Typ. Total
Included Angle
(degrees)
Typ. Viewing Angle
(degrees)
Min. Max.
Far Red 720nm 750nm 20 0.06 175 162
Deep Red 655nm 675nm 20 0.06 175 162
Red 624nm 634nm 20 0.06 175 162
Red-Orange 614nm 624nm 20 0.06 175 162
Amber 585nm 600nm 20 0.06 175 162
PC Amber - - 80 -0.01 175 150
Lime - - 80 -0.01 175 145
Green 520nm 540nm 30 0.04 175 170
Cyan 490nm 510nm 30 0.03 175 170
Blue 465nm 485nm 20 0.03 175 170
Royal Blue 440nm 460nm 20 0.03 175 165
Violet 420nm 430nm 20 0.03 175 165

Notes for Optical Characteristics Table

  • Lumileds maintains a tolerance of ±6.5% on luminous flux measurments. PC Amber, Mint and Lime are binned by chromaticity coordinates. Far Red, Deep Red, Royal Blue and Violet are binned by peak wavelength. All other colors are binned by dominant wavelength.
  • Spectral half-width is the spectral bandwidth at 50% of the peak intensity.
  • Total angle at which 90% of total luminous flux is captured.
  • Viewing angle is the off axis angle from LED centerline where the luminous intensity is ½ of the peak value.



Electrical Characteristics at 350mA, TJ=85°

Color Part Number Forward Voltage (Vf) Typ. Temperature Coefficient
of Forward Voltage (mV/°C)
Typ. Thermal Resistance
Junction to Thermal Pad (°C/W)
Min. Typ. Max.
Far Red L1C1-FRD1000000000 1.50 1.90 2.30 -1.7 2.8
Deep Red L1C1-DRD1000000000 1.50 2.05 2.30 -1.7 2.8
Red L1C1-RED1000000000 1.75 2.00 2.50 -1.6 2.8
Red-Orange L1C1-RNG1000000000 1.75 2.05 2.50 -1.6 2.8
Amber L1C1-AMB1000000000 1.75 2.05 2.50 -2.0 2.8
PC Amber L1C1-PCA1000000000 2.50 2.75 3.50 -1.7 3.0
Lime L1C1-LME1000000000 2.50 2.75 3.50 -2.7 2.8
Green L1C1-GRN1000000000 2.50 3.05 3.50 -2.4 3.5
Cyan L1C1-CYN1000000000 2.50 3.05 3.50 -2.4 3.5
Blue L1C1-BLU1000000000 2.50 2.84 3.50 -2.6 3.5
Royal Blue L1C1-ROY1000000000 2.50 2.75 3.50 -1.7 2.8
Violet L1C1-VLT1000000000 2.50 2.83 3.50 -1.7 3.8

Notes for Table

  • Lumileds maintains a tolerance of ±0.06V on forward voltage measurements.
  • Measured between 25°C & 85°C



Absolute Maximum Ratings

Parameter Far Red/Deep Red Red/Red-Orange/Amber/PC Amber Green/Cyan Blue/Royal Blue Lime/Violet
DC Forward Current (mA) 700 1050 1050 1050 1225
Peak Pulsed Forward Current (mA) 875 1300 1300 1300 1500
LED Junction Temperature 135°C 120°C 135°C 135°C 135°C
ESD Sensitivity Class 3B
LED Storage Temperature -40°C - 135°C
Soldering Termperature JEDEC 020c 260°C
Allowable Reflow Cycles 3
Reverse Voltage Luxeon C LEDs are not designed to be driven in reverse bias
