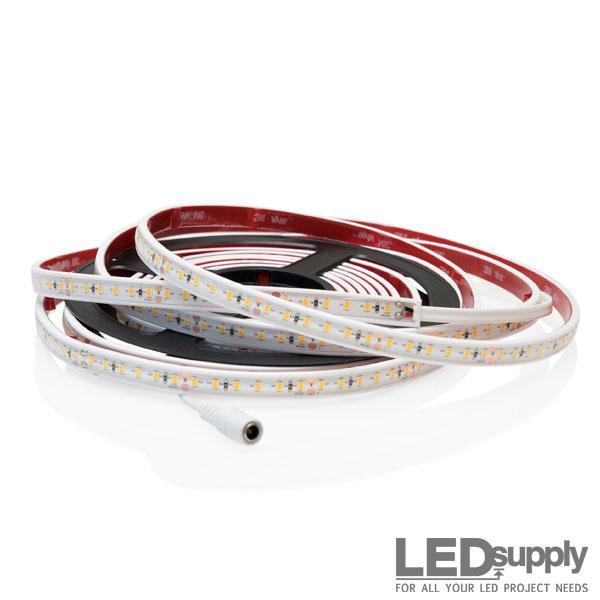

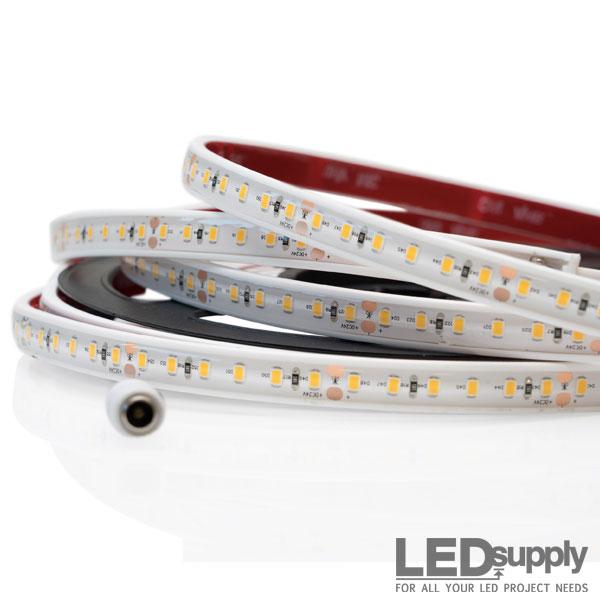

10mm Sauna-Rated White LED Strip Light — 24V, 3W/ft, High-Temp IP68
More images
Purchase
SAME DAY SHIPPING
- Element Series
- IP68 — Rated to 90°C / 194°F
- 90 CRI — 120 LEDs/m, Up to 320 lm/ft
Product Details
High-quality white light engineered for sauna heat and moisture
This 24V sauna-rated strip combines a high-temperature IP68 housing with 90 CRI light and five fixed color-temperature choices. Use it for dependable indirect lighting beneath benches, behind backrests, in coves and along architectural details.
Confirm these three decisions before ordering
Product specifications
| Series: Element Series | Light Type / Color: Fixed white, multiple CCT choices |
| LED Density: 120 LEDs/m | Input Voltage: 24V DC |
| Light Output: Up to 320 lm/ft | Power: 3W/ft |
| CRI: 90 | IP Rating: IP68 — High-Temp / Submersible |
| Operating Temperature: -30°C to 90°C | Cut Length: Every 6 LEDs / 2 in. |
| Finished Strip Width: 10mm | Maximum Continuous Run: 32.8 ft |
| Available Length: 16.4 ft (5m) roll | Mounting: 3M adhesive backing or mounting clips |
| LED Type: 2835 SMD | Dimming / Control: PWM dimmable |
| Housing: High-temp TPU / silicone blend | Fire Rating: V1 |
Choose your white color temperature
Every option provides the same fixed-white operation. Choose based on the atmosphere and visual appearance you want in the finished sauna.
| Part Number | CCT | Light Output | Power | CRI |
|---|---|---|---|---|
| HT120-IP6824V12M-W27 | 2700K Warm White | 274 lm/ft | 3W/ft | 90 |
| HT120-IP6824V12M-W30 | 3000K Warm White | 287 lm/ft | 3W/ft | 90 |
| HT120-IP6824V12M-W40 | 4000K Neutral White | 305 lm/ft | 3W/ft | 90 |
| HT120-IP6824V12M-W50 | 5000K Cool White | 320 lm/ft | 3W/ft | 90 |
| HT120-IP6824V12M-W65 | 6500K Cool White | 320 lm/ft | 3W/ft | 90 |
The strip is one part of the lighting system
Plan all five parts together so the components are compatible and the installation can be completed without last-minute substitutions.
LED Strip
Choose the CCT and determine the total footage and number of separate runs.
You are viewing this componentConnections
Use the compatible 10mm IP68 high-temperature connector or request soldered leads and custom wiring.
View Sauna Connectors →24V Power
Size a constant-voltage driver for the combined load plus headroom. Install it outside the sauna.
Shop 24V Power Supplies →Dimming
Add a compatible PWM dimmer, or select a dimmable driver that matches the planned wall-control method.
Shop PWM Dimmers →Wire & Mounting
Plan wire gauge, clips and any channel or lens. Confirm that every in-sauna material suits the installation temperature.
Shop Accessories →Size the driver before you buy
Calculate the strip load, then add at least 20% capacity so the driver is not operated continuously at its maximum rating.
- Load: total strip feet × 3W/ft
- Minimum driver: calculated load × 1.20
- Add the wattage of parallel runs together when they share one driver.
| Strip Length | Approx. Load | With 20% Headroom | Practical Minimum |
|---|---|---|---|
| 3 ft | 9W | 10.8W | 12W or greater |
| 6 ft | 18W | 21.6W | 24W or greater |
| 10 ft | 30W | 36W | 40W or greater |
| 16.4 ft full roll | Approx. 49W | Approx. 59W | 60W or greater |

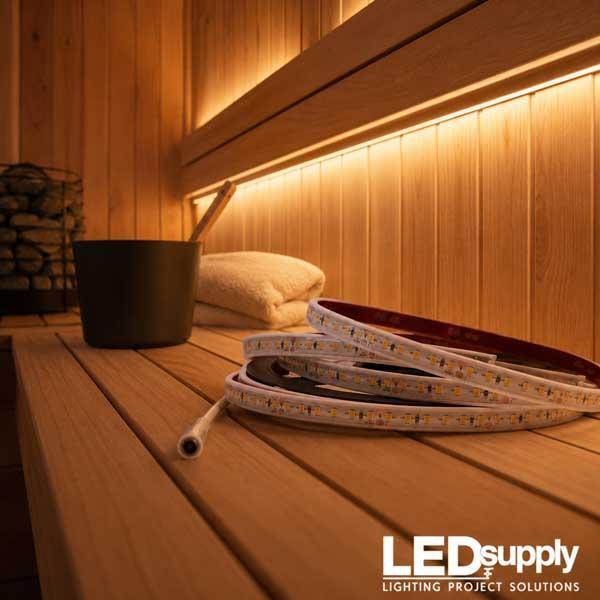

Designed for indirect sauna lighting
- Position the strip beneath benches, behind backrests, under toe kicks or inside architectural recesses.
- Keep the strip away from the heater and localized areas that can exceed its 90°C maximum rating.
- Install the power supply, dimmer and other sensitive electronics outside the sauna.
- Use the supplied mounting clips for added mechanical support; do not rely solely on adhesive in elevated temperatures.
- For runs longer than 32.8 ft, use separate parallel feeds back to the power source to help control voltage drop.
Cutting changes the factory-sealed installation
The strip can be cut every 2 inches at the marked cut points, but cutting the factory-sealed strip forfeits the manufacturer's IP68 rating at that cut end. Properly reseal every field-cut end and connection wherever IP68 protection is required. If you want to reduce field work, LEDSupply can cut the strip to length, solder leads and provide custom wiring or assembly before shipment.
Want LEDSupply to review the complete sauna system?
We can review your project or BOM, confirm component compatibility, prepare a custom quote, cut strip to length, solder leads, create custom wiring and provide assembly when needed.
Need adjustable white or color?
Tunable White
Adjust from warm 2700K light to brighter 6500K white with a compatible tunable-white control.
View Tunable White →RGBW
Combine full-color scenes with a dedicated white channel for more flexible everyday use.
View RGBW →Sauna and LED strip planning resources
Review the environment, installation and complete-system requirements before purchasing or installing the components.
Fixed-white sauna strip questions
Can this LED strip be installed inside a sauna?
Yes. It is engineered for high-temperature and high-moisture environments and has an operating range up to 90°C / 194°F. Keep it away from the heater and any localized area that may exceed that rating.
Can I change the white color temperature after installation?
No. This is a fixed-white strip, so you select one CCT before ordering. If you need adjustable white light, choose the Tunable White version and a compatible controller.
What size power supply does one full roll require?
A 16.4 ft roll uses approximately 48–49W. With at least 20% headroom, use a 24V constant-voltage power supply rated 60W or greater.
Can the power supply or dimmer go inside the sauna?
No. Install the power supply, dimmer and other control electronics outside the sauna, where they are protected from excessive heat and moisture.
Can the strip be cut to length?
Yes. It can be cut every 2 inches at the designated cut points. A field cut breaks the factory seal at that end, so the end must be properly resealed wherever IP68 protection is required.
Can LEDSupply prepare the strip before shipping?
Yes. LEDSupply can provide cut-to-length strip, soldered leads, custom wiring, project or BOM review, custom quotes and assembly when needed. Send the project details to sales@ledsupply.com.
Technical datasheet
Review complete product specifications before finalizing the installation.
Installation conditions vary. Confirm component ratings, sauna-manufacturer requirements and applicable electrical codes before installation.
