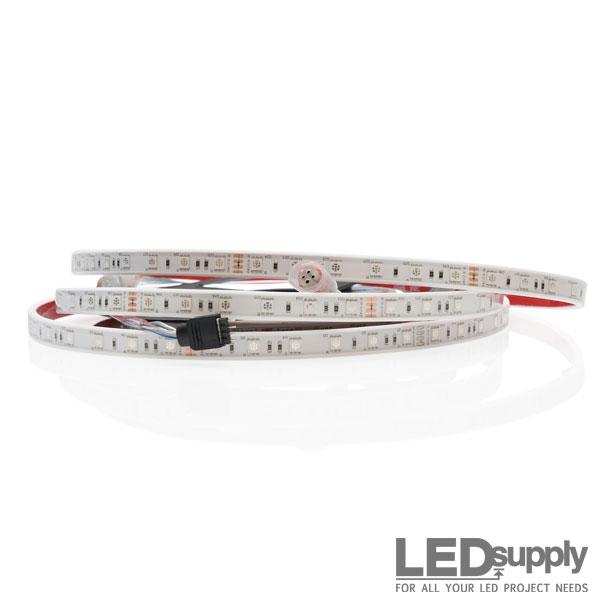

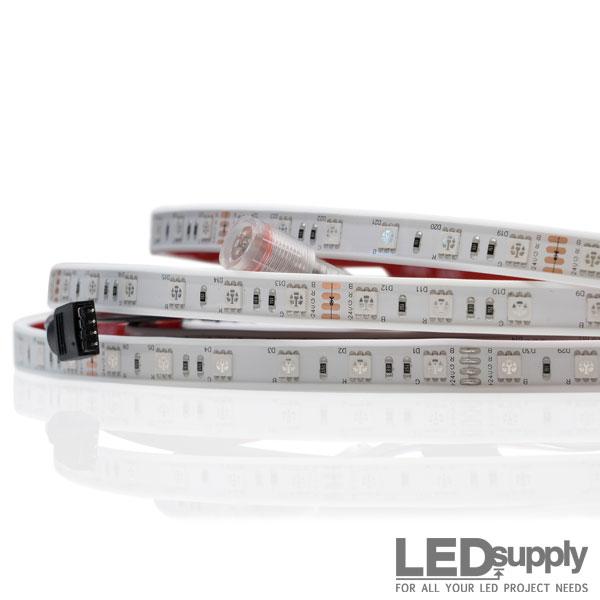

10mm Sauna-Rated RGB LED Strip Light — 24V, 5W/ft, High-Temp IP68
More images
Purchase
SAME DAY SHIPPING
- Element Series
- IP68 — Rated to 90°C / 194°F
- RGB Color-Changing — 60 LEDs/m
Product Details
Color-changing light engineered for sauna heat and moisture
This 24V sauna-rated strip combines red, green and blue LEDs with high-temperature IP68 construction. Add a compatible RGB controller to select custom colors, adjust brightness and create dynamic effects for sauna, spa and wellness-room installations.
Confirm these three decisions before ordering
Product specifications
| Series: Element Series | Light Type / Color: RGB Color-Changing |
| LED Density: 60 LEDs/m | Input Voltage: 24V DC |
| Control: RGB controller required | Power: 5W/ft |
| Connection: 4-pin waterproof wire harness | IP Rating: IP68 — High-Temp / Submersible |
| Operating Temperature: -30°C to 90°C | Cut Length: Every 6 LEDs / 4 in. |
| Finished Strip Width: 10mm | Maximum Continuous Run: 32.8 ft |
| Available Length: 16.4 ft (5m) roll | Mounting: 3M adhesive backing or mounting clips |
| LED Type: 5050 RGB SMD | Wiring: Four-conductor / common-positive RGB |
| Housing: High-temp TPU / silicone blend | Form Factor: Flexible LED strip |
Mix colors and change the atmosphere after installation
A compatible controller independently adjusts the red, green and blue channels. Blend the channels for custom static colors, dim the installation or use the effects supported by the selected controller.
| Part Number | Color | LED Density | Power | Control |
|---|---|---|---|---|
| HT60-IP6824V12M-RGB | RGB Color-Changing | 60 LEDs/m | 5W/ft | RGB controller required |
The strip is one part of the lighting system
Plan all five parts together so the components are compatible and the installation can be completed without last-minute substitutions.
LED Strip
Determine the total footage, number of separate runs and locations where each run will begin and end.
You are viewing this component24V Power
Size a constant-voltage power supply for the total 5W/ft load plus headroom. Install it outside the sauna.
Shop 24V Power Supplies →RGB Controller
Use a compatible 12–24V, three-channel RGB controller to select colors, dim the output and activate supported effects.
View Compatible Controller →Connections
Use the compatible 10mm, 4-pin IP68 high-temperature RGB push-down connector, or request soldered leads and custom wiring.
View RGB Connector →Mounting
Plan clips and any channel or lens. Confirm that every material installed inside the sauna suits the temperature.
Shop Accessories →Size the driver before you buy
Calculate the strip load, then add at least 20% capacity so the driver is not operated continuously at its maximum rating.
- Load: total strip feet × 5W/ft
- Minimum driver: calculated load × 1.20
- Also confirm that the RGB controller can carry the total load and current at 24V.
| Strip Length | Approx. Load | With 20% Headroom | Practical Minimum |
|---|---|---|---|
| 3 ft | 15W | 18W | 20W or greater |
| 6 ft | 30W | 36W | 40W or greater |
| 10 ft | 50W | 60W | 60W or greater |
| 16.4 ft full roll | Approx. 82W | Approx. 98W | 100W or greater |
Designed for indirect sauna lighting
- Position the strip beneath benches, behind backrests, under toe kicks or inside architectural recesses.
- Keep the strip away from the heater and localized areas that can exceed its 90°C maximum rating.
- Install the power supply, RGB controller and other sensitive electronics outside the sauna.
- Use the supplied mounting clips for added mechanical support; do not rely solely on adhesive in elevated temperatures.
- For runs longer than 32.8 ft, use separate parallel feeds back to the power source to help control voltage drop.
Cutting changes the factory-sealed installation
The strip can be cut every 4 inches at the marked cut points, but cutting the factory-sealed strip forfeits the manufacturer's IP68 rating at that cut end. Properly reseal every field-cut end and connection wherever IP68 protection is required. If you want to reduce field work, LEDSupply can cut the strip to length, solder leads and provide custom wiring or assembly before shipment.
Want LEDSupply to review the complete sauna system?
We can review your project or BOM, confirm component compatibility, prepare a custom quote, cut strip to length, solder leads, create custom wiring and provide assembly when needed.
Need dedicated white light or more flexibility?
Fixed White
Choose one dedicated color temperature for a simpler white-light system without an RGB controller.
View Fixed White →Tunable White
Adjust from warm 2700K to cool 6500K white while controlling brightness from the same strip.
View Tunable White →RGBW
Combine full-color scenes with a dedicated white channel for more flexible everyday use.
View RGBW →Sauna and LED strip planning resources
Review the environment, installation and complete-system requirements before purchasing or installing the components.
RGB sauna strip questions
Can this LED strip be installed inside a sauna?
Yes. It is engineered for high-temperature and high-moisture environments and has an operating range up to 90°C / 194°F. Keep it away from the heater and any localized area that may exceed that rating.
How does RGB LED strip create different colors?
The strip contains red, green and blue LED channels. A compatible three-channel RGB controller varies each channel to mix custom colors, adjust brightness and run any effects supported by that controller.
Is an RGB controller required?
Yes. A standard single-channel dimmer cannot independently control the red, green and blue channels. Use a compatible 12–24V RGB controller sized for the connected load.
Can RGB strip produce white light?
It can mix red, green and blue to create an approximate white appearance, but it does not have a dedicated white LED channel. Choose fixed white or tunable white when white-light quality is the main goal, or RGBW when the project needs both color effects and dedicated white light.
What size power supply does one full roll require?
A 16.4 ft roll uses approximately 82W based on the 5W/ft rating. With at least 20% headroom, use a 24V constant-voltage power supply rated 100W or greater.
Can the power supply or controller go inside the sauna?
No. Install the power supply, controller and other control electronics outside the sauna, where they are protected from excessive heat and moisture.
Can the strip be cut to length?
Yes. It can be cut every 4 inches at the designated cut points. A field cut breaks the factory seal at that end, so the end must be properly resealed wherever IP68 protection is required.
Can LEDSupply prepare the strip before shipping?
Yes. LEDSupply can provide cut-to-length strip, soldered leads, custom wiring, project or BOM review, custom quotes and assembly when needed. Send the project details to sales@ledsupply.com.
Technical datasheet
Review complete product specifications before finalizing the installation.
Installation conditions vary. Confirm component ratings, sauna-manufacturer requirements and applicable electrical codes before installation.
