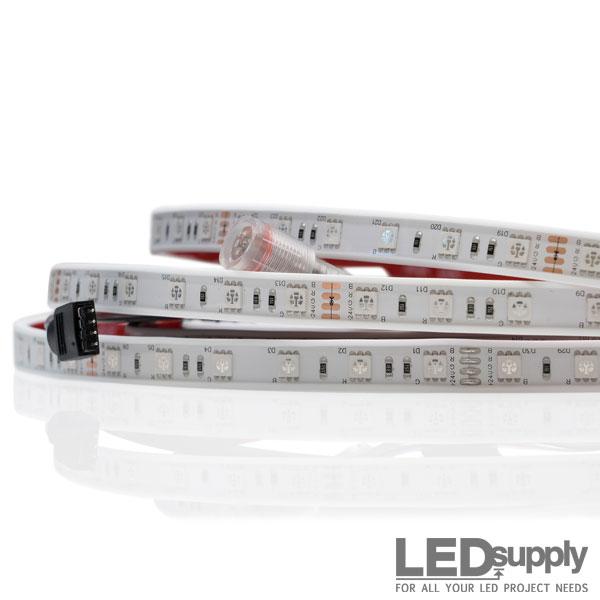

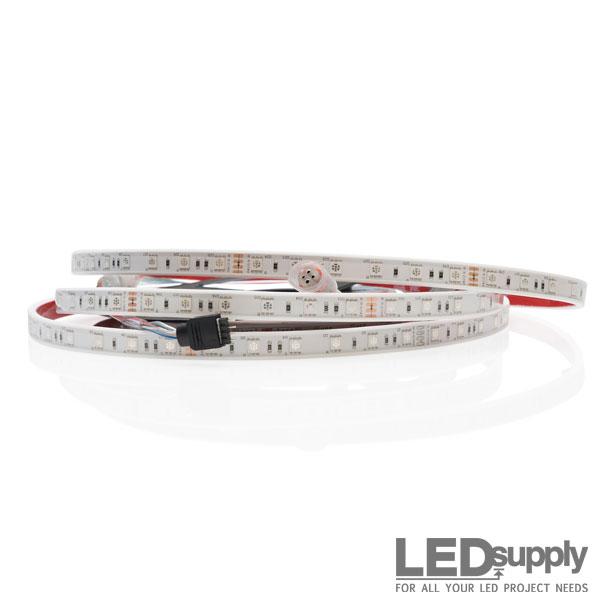

Sauna-Rated IP68 High Temp RGBW LED Strip Light — 24V, 10mm, 5W/ft

More images

Regular Price: $178.99
Sale Price: $165.99
You Save: $13.00

PART #: HT60-IP6824V12M-RGBW30
VOLUME DISCOUNTS
PCS
% OFF
10 - 49
2.5%
50 - 99
5%
100 - 249
7.5%
250 - 499
10%
First Class > $49.99
FREE
First Class
$5.99
Ground
$11.99
2-Day
$15.99
Express
CALC

Purchase

TEMPORARILY OUT OF STOCK

0 PCS IN-STOCK
ORDER BY 3PM EST FOR
SAME DAY SHIPPING
  • Element Series
  • IP68 — Rated to 90°C / 194°F
  • RGB + Dedicated 3000K Warm White

Product Details

Element Series · RGBW Color + White

Full-color effects and dedicated warm white for demanding sauna environments

This 24V sauna-rated strip combines red, green and blue color-changing light with a dedicated 3000K Warm White channel. High-temperature IP68 construction supports sauna, steam-room, spa and wellness projects that need both decorative color and comfortable everyday white illumination.

RGB + 3000KColor plus dedicated warm white
Up to 90°C / 194°FHigh-temperature operation
IP68Encapsulated environmental protection
60 LEDs/m5050 RGBW LED density

Confirm these three decisions before ordering

Choose RGBW for color plus useful white RGBW adds a dedicated 3000K channel, giving the project warm everyday white light without sacrificing color-changing effects.
Include an RGBW controller A compatible 12–24V four-channel RGBW controller is required to manage red, green, blue and white independently.
Plan power and five-conductor wiring Allow 5W/ft, size both the power supply and controller for the connected load, and plan every field cut, lead and sealed termination.
Technical details

Product specifications

Series: Element Series Light Type / Color: RGBW — RGB + 3000K Warm White
LED Density: 60 LEDs/m Input Voltage: 24V DC
White CCT: 3000K Warm White Power: 5W/ft
Connection: 5-conductor waterproof wire harness IP Rating: IP68 — High-Temp / Submersible
Operating Temperature: -30°C to 90°C Cut Length: Every 6 LEDs / 4 in.
Finished Strip Width: 10mm Maximum Continuous Run: 32.8 ft
Available Length: 16.4 ft (5m) roll Mounting: 3M adhesive backing or mounting clips
LED Type: 5050 RGBW SMD Control: RGBW controller required
Housing: High-temp TPU / silicone blend Fire Rating: V1
Color and white-light flexibility

Move from saturated color to comfortable 3000K white

A compatible RGBW controller independently manages the red, green, blue and dedicated warm-white channels. Use one installation for decorative scenes, custom colors and practical everyday white illumination.

Full-Color Scenes Mix red, green and blue for saturated colors, custom static colors and supported dynamic effects.
Dedicated 3000K White Use the separate warm-white channel for comfortable indirect illumination and everyday sauna use.
Blended Color + White Add the white channel to RGB colors for softer tints and more flexible atmosphere control.
An RGBW controller is required. A standard RGB controller cannot independently operate the additional white channel. Place the controller between the 24V power supply and strip, use the correct five-conductor wiring, and keep the controller and power supply outside the sauna. On-screen colors are a relative guide only.
Part Number Color White CCT LED Density Power
HT60-IP6824V12M-RGBW30 RGB + White 3000K Warm White 60 LEDs/m 5W/ft
Build the complete project

The strip is one part of the lighting system

Plan all five parts together so the components are compatible and the installation can be completed without last-minute substitutions.

1

LED Strip

Determine the total footage, number of separate runs and locations where each run will begin and end.

You are viewing this component
2

24V Power

Size a constant-voltage power supply for the total 5W/ft load plus headroom. Install it outside the sauna.

Shop 24V Power Supplies →
3

RGBW Controller

Use a compatible 12–24V four-channel RGBW controller to manage color, dedicated white, brightness and supported effects.

View Compatible Controller →
4

Connections

Use the compatible 10mm, 5-pin IP68 high-temperature RGBW push-down connector, or request soldered leads and custom wiring.

View RGBW Connector →
5

Mounting

Plan clips and any channel or lens. Confirm that every material installed inside the sauna suits the temperature.

Shop Accessories →
Power planning

Size the driver before you buy

Calculate the strip load, then add at least 20% capacity so the driver is not operated continuously at its maximum rating.

  • Load: total strip feet × 5W/ft
  • Minimum driver: calculated load × 1.20
  • Also confirm that the RGBW controller can carry the total load and current at 24V.
Choose a Power Supply
Strip Length Approx. Load With 20% Headroom Practical Minimum
3 ft 15W 18W 20W or greater
6 ft 30W 36W 40W or greater
10 ft 50W 60W 60W or greater
16.4 ft full roll Approx. 82W Approx. 98W 100W or greater

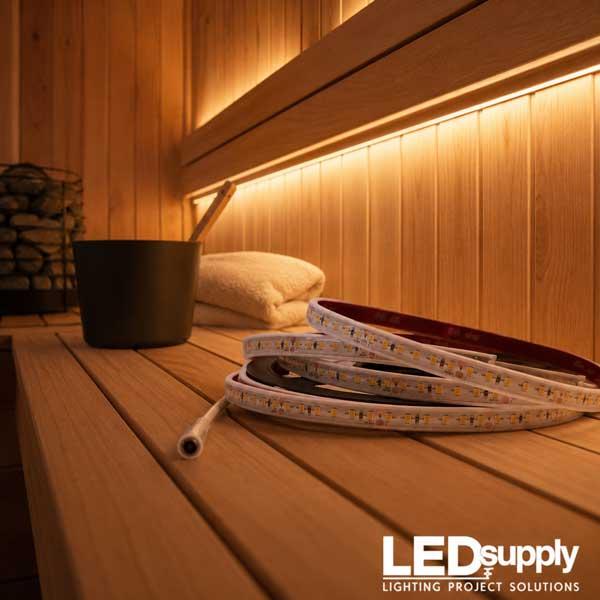

RGBW LED strip lighting installed beneath a sauna bench
Installation planning

Designed for indirect sauna lighting

  • Position the strip beneath benches, behind backrests, under toe kicks or inside architectural recesses.
  • Keep the strip away from the heater and localized areas that can exceed its 90°C maximum rating.
  • Install the power supply, RGBW controller and other sensitive electronics outside the sauna.
  • Use the supplied mounting clips for added mechanical support; do not rely solely on adhesive in elevated temperatures.
  • For runs longer than 32.8 ft, use separate parallel feeds back to the power source to help control voltage drop.
Important IP68 requirement

Cutting changes the factory-sealed installation

The strip can be cut every 4 inches at the marked cut points, but cutting the factory-sealed strip forfeits the manufacturer's IP68 rating at that cut end. Properly reseal every field-cut end and connection wherever IP68 protection is required. If you want to reduce field work, LEDSupply can cut the strip to length, solder leads and provide custom wiring or assembly before shipment.

Want LEDSupply to review the complete sauna system?

We can review your project or BOM, confirm component compatibility, prepare a custom quote, cut strip to length, solder leads, create custom wiring and provide assembly when needed.

Other Element Series options

Would a simpler lighting system fit the project?

Fixed White

Choose one dedicated white color temperature for the simplest control and wiring configuration.

View Fixed White →

Tunable White

Adjust from warm 2700K to cool 6500K white while controlling brightness from the same strip.

View Tunable White →

RGB

Create full-color scenes without the additional dedicated white channel and its fifth conductor.

View RGB →
Helpful before installation

Sauna and LED strip planning resources

Review the environment, installation and complete-system requirements before purchasing or installing the components.

Environment Guide

Understanding IP68 LED Strip Lighting

Read the Guide →
Installation Guide

What to Know Before Installing LED Strip Lights

Read the Guide →
Project Planning

Plan the LED Strip Project in Eight Steps

Start Planning →
Frequently asked questions

RGBW sauna strip questions

Can this LED strip be installed inside a sauna?

Yes. It is engineered for high-temperature and high-moisture environments and has an operating range up to 90°C / 194°F. Keep it away from the heater and any localized area that may exceed that rating.

What is the advantage of RGBW over RGB?

RGBW adds a separate 3000K Warm White LED channel to the red, green and blue channels. That produces more useful everyday white illumination than mixing RGB alone while retaining full-color capability.

Is an RGBW controller required?

Yes. Use a compatible 12–24V four-channel RGBW controller that can independently manage red, green, blue and white and is sized for the connected load.

What color temperature is the dedicated white channel?

The dedicated white channel is 3000K Warm White, a comfortable choice for indirect lighting beneath sauna benches, behind backrests and within architectural recesses.

What size power supply does one full roll require?

A 16.4 ft roll uses approximately 82W based on the 5W/ft rating. With at least 20% headroom, use a 24V constant-voltage power supply rated 100W or greater.

Can the power supply or controller go inside the sauna?

No. Install the power supply, controller and other control electronics outside the sauna, where they are protected from excessive heat and moisture.

Can the strip be cut to length?

Yes. It can be cut every 4 inches at the designated cut points. A field cut breaks the factory seal at that end, so the end must be properly resealed wherever IP68 protection is required.

Can LEDSupply prepare the strip before shipping?

Yes. LEDSupply can provide cut-to-length strip, soldered leads, custom wiring, project or BOM review, custom quotes and assembly when needed. Send the project details to sales@ledsupply.com.

Technical datasheet

Review complete product specifications before finalizing the installation.

Open Product Documentation

Installation conditions vary. Confirm component ratings, sauna-manufacturer requirements and applicable electrical codes before installation.
