LUXshift Dim-to-Warm LED Strip

More images

Regular Price: $43.99
Sale Price: $39.99
You Save: $4.00
PART #: 0N012-382765W60
VOLUME DISCOUNTS
PCS
% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class > $39.99
FREE
First Class
$3.99
Ground
$11.99
2-Day
$13.99
Express
CALC

Purchase

20 PCS IN-STOCK

ORDER BY 3PM EST FOR
SAME DAY SHIPPING
  • Dims from Cool to Warmer Tones
  • Connect up to 20 in a row!
  • Premium architectural LED strip lights

Product Details

NO Driver Required! 24Vdc Constant Voltage Input 3-Step Nichia 757 LEDs: 24 Nichia 2-in-1 tunable diodes per strip
Easily Connectable: Daisy chain up to 20ft! Wattage: 5.8W/ft typical @ 24V input
High Brightness: 690-700 Lumens! High Efficacy: Over 120 Lumens/Watt
Board Size: 12-inch Long - 1-Inch Wide  Poke-Home Connectors: Easily connect with 20-22 AWG Stranded Wire
Adjustable CCT Range: 2700K Warm White ~ 6500K Cool White  Dim-to-Warm Control Type: (1) 0-10V input for fully adjustable CCT


Description

Color Temperature Adjustable Strip Light

Introducing the LUXdrive™ 0N012 LUXshift Dim-to-Warm white LED Strip, a cutting-edge 24VDC light engine, that allows for seamless transition of color temperature using a single 0-10V input signal. With this functionality, the LED light can smoothly shift from a bright and cool 6500K color temperature to a warmer and more inviting 2700K color temperature. This capability emulates the natural dimming behavior of traditional incandescent or halogen lamps, providing a cozy and comforting atmosphere as the light dims down to warmer tones, resembling the relaxing glow of candlelight or sunrise/sunset. The gradual shift in color temperature enhances the ambiance of the space and creates a more pleasant and soothing lighting experience.

The LUXshift strip hosts 24 dual-color (2in1) Nichia 757 LEDs, delivering tunability and an impressive output of up to 700 Lumens. At 24V input, a 12” strip will run at roughly 8 Watts. At this wattage, that’s 120 Lumens/Watt!

Color Tuning and Dimming Controls:

A Single 0-10V dimmer is all you need to seamlessly control the Dim-to-Warm function. This Single Channel 0-10V dimmer was designed specifically for use with this tunable white strip.

Mounting

Each 12" strip is super lightweight at .90 oz (28g) and can be easily mounted with 3M Thermal Transfer Tape. The LUXshift Dim-2-Warm Strip can be enclosed in an Aluminum Channel for a more professional design, this works great for undercabinet lighting as well as recessed options. For added protection we recommend spraying the strips with protective electronic spray like LED Seal.

Linear Strip Design - Connect up to 20 Strips together!

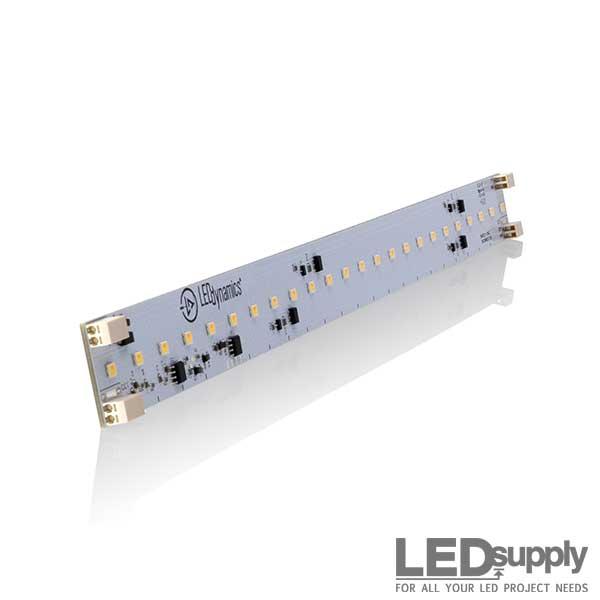

This rigid PCB is 12” long and .95” wide. For easy wiring, there are poke-to-home connectors that work with 20-22 AWG stranded wire. This allows for easy connection to power or daisy-chaining together (up to 20 strips max).

Heatsink Concerns

The 0N021 has fantastic thermal management and can be run without a heatsink in most situations. If there is already a higher ambient temperature in the light's environment, we would advise heatsinking and/or other thermal management practices such as fans.

General Product Information
Shape Rectangle
LED Count 24
Field Cut No
Lumens 690-700
Beam Angle 120°
CCT 2700K to 6500K
CRI 80 absolute minimum


Technical Documentation

Electrical Characteristics (TJ= 25° C @ 60mA)

Electrical Info Performance @ 60mA
Min. Typ. Max.
Input Voltage 19VDC 24VDC 28VDC
Wattage 4.6 W 5.8 W 6.7 W
Efficacy 157 lm/W 125 lm/W 105 lm/W


Product Specifications

Control
Dimming Range 1-100%
Color Temperature 0-10VDC
Brightness 0-10VDC
Environment
Operating Temp -20 to 80°C
Storage Temp -40 to 125°C
Mechanical
Connection Poke-Home 18-22AWG (Max Conductor diameter = 1.2mm)
Mounting Double Sided Adhesive
Dimension 12 x 0.95 x 0.26 in (304.8 x 24.13 x 6.6mm)
Weight 0.90oz (28g)
Regulatory
Compliance RoHS
Warranty 1 Year
