Fusion Optix Sample Pack - Optical Diffusion Sheets (Choose Pack)
More images
Regular Price: $38.48
Sale Price: $34.99
You Save: $3.49
PART #: FO-SAMPLESHEET-6X6
VOLUME DISCOUNTS
PCS
% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class > $39.99
FREE
First Class
$3.99
Ground
$11.99
2-Day
$13.99
Express
CALC
Purchase
ORDER BY 3PM EST FOR
SAME DAY SHIPPING
SAME DAY SHIPPING
- Choose: Microstructured, PMMA, or Polycarbonate Diffusion
- Labeled 6" × 6" Sheets with Optical Specs
- Ideal for Testing, Prototyping, and Specification
Share:
)
Product Details
| AVAILABLE PACKS: Microstructured, PMMA Diffusion, Polycarbonate Diffusion | SHEET SIZE: 6" × 6" (150mm × 150mm) |
| OPTICAL METRICS: Diffusion Angle, Transmission, Haze, Clarity, Thickness | APPLICATIONS: LED testing, prototyping, optical system design |
| SHEET LABELING: Each sample includes product code and specs | REFERENCE CARD: Included in each pack for easy comparison |
| CUSTOMIZATION: Available via Fusion Optix engineering support | MANUFACTURER: Fusion Optix – USA-based optical film experts |
Description
Choose from three premium sample packs by Fusion Optix, designed to showcase high-performance optical materials for LED and lighting applications. Each pack includes 6" × 6" labeled sample sheets featuring clear spec data—ideal for engineers, designers, and OEMs working in optics-heavy projects.
Available Sample Pack Options:

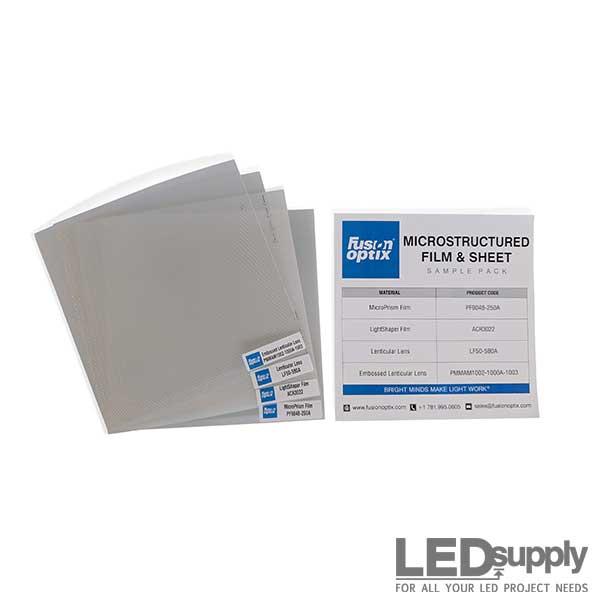

- Microstructured Film & Sheet Pack - #FO-MICROSTRUCT-6X6
Features MicroPrism, Lenticular, and LightShaper films that control beam shape and glare. - PMMA Diffusion Pack - #FO-PMMA-6X6

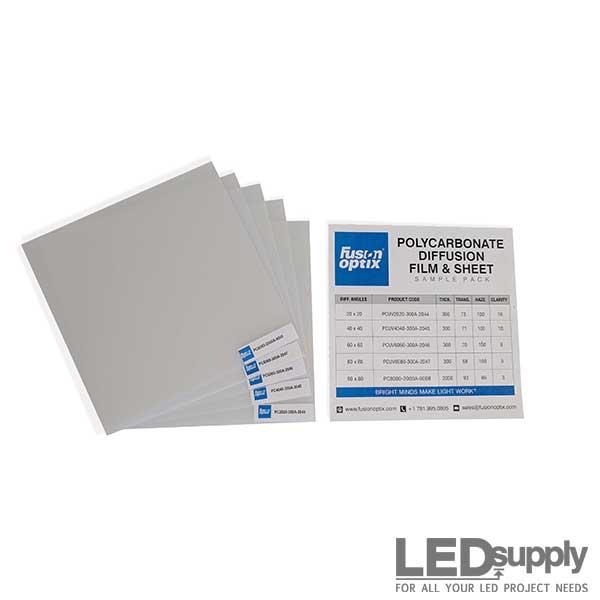

High-transmittance acrylic films with varied haze, clarity, and diffusion angles. Great for glare control and light spread. - Polycarbonate Diffusion Pack - #FO-PC-6X6
Rugged, thermal-resistant films for demanding environments with medium to high diffusion control.
Each pack includes a reference insert with thickness, transmission, haze, clarity, and diffusion angle for every sheet—making it easy to evaluate performance at a glance.
Product Tables
| MATERIAL | PRODUCT CODE |
| MicroPrism Film | PF9048-250A |
| LightShaper Film | ACR3022 |
| Lenticular Lens | LF50-580A |
| Embossed Lenticular Lens | PMMAM1002-1000A-1003 |
| DIFF. ANGLES | PRODUCT CODE | THCK. | TRANS. | HAZE | CLARITY |
| 20 x 20 | PCUV2020-300A-2044 | 300 | 73 | 100 | 16 |
| 40 x 40 | PCUV4040-300A-2045 | 300 | 71 | 100 | 10 |
| 60 x 60 | PCUV6060-300A-2045 | 300 | 70 | 100 | 9 |
| 80 x 80 | PCU8080-300A-2047 | 300 | 68 | 100 | 27 |
| 80 x 80 | PC8080-2000A-9008 | 2000 | 93 | 99 | 3 |
| DIFF. ANGLES | PRODUCT CODE | THCK. | TRANS. | HAZE | CLARITY |
| 10 × 10 | PMMA1010-500A-C13.0-2219 | 500 | 92.2 | 83.6 | 13.0 |
| 20 × 20 | PMMA2020-500A-C7.5-2-2221 | 500 | 92.8 | 96.3 | 7.4 |
| 30 × 30 | PMMA3030-500A-C2.5-2-2223 | 500 | 92.6 | 98.8 | 2.4 |
| 40 × 40 | PMMA4040-500A-C2.0-2-2159 | 500 | 90.9 | 99.2 | 2.1 |
| 50 × 50 | PMMA5050-500A-C1.5-2-2142 | 500 | 89.2 | 99.4 | 1.8 |
| 60 × 60 | PMMA6060-500A-C1.5-2-2212 | 500 | 85.7 | 100 | 1.5 |
| 70 × 70 | PMMA7070-750A-C1.5-2092 | 750 | 82.0 | 100 | 1.1 |
| 80 × 80 | PMMA8080-500A-C1.5-2070 | 500 | 79.5 | 100 | 0.9 |
| 90 × 90 | PMMA9090-1500A-C5-3-0934 | 1500 | 92 | 100 | 0.0 |
×
