Luxeon C White LEDs

More images

Regular Price: $4.29
Sale Price: $3.99
You Save: $0.30
PART #: J03x-L1C1xWHT
VOLUME DISCOUNTS
PCS
% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
Shipping Information*
First Class
FREE
Fedex 2-Day
$9.99
FedEx Ground
$8.99
UPS Ground
$9.99
FedEx Express
CALC

Purchase

0 PCS IN-STOCK

ORDER BY 3PM EST FOR
SAME DAY SHIPPING
  • Max output (lm): 300(1up) & 900(3up)
  • Maximum drive current: 1225mA
  • Low profile dome!

Product Details

CCT Color Temperature: 2700K, 3000K, 4000K, 5000K & 6500K Low Profile LED Star: Symmetrical 2mm2 package with low dome design!
Max Drive Current: Up to 1225mA Wide Viewing Angle: 150°
Secondary Optics: Compatible with Single & Triple Carclo Optics Binned: 85° C
Typ. Forward Voltage: 2.75V @ 350mA Low Thermal Resistance: 2.8C/W
C Emitter Size: 2mm X 2mm Max. Junction Temp.: 135°C



Description

The Luxeon C Line features an advanced portfolio of color and white LEDs. The white portion of the Luxeon C line has expanded to include color temperatures from 2700-6500K with high CRI combinations. The low dome design keeps the light source small while still improving upon light output.

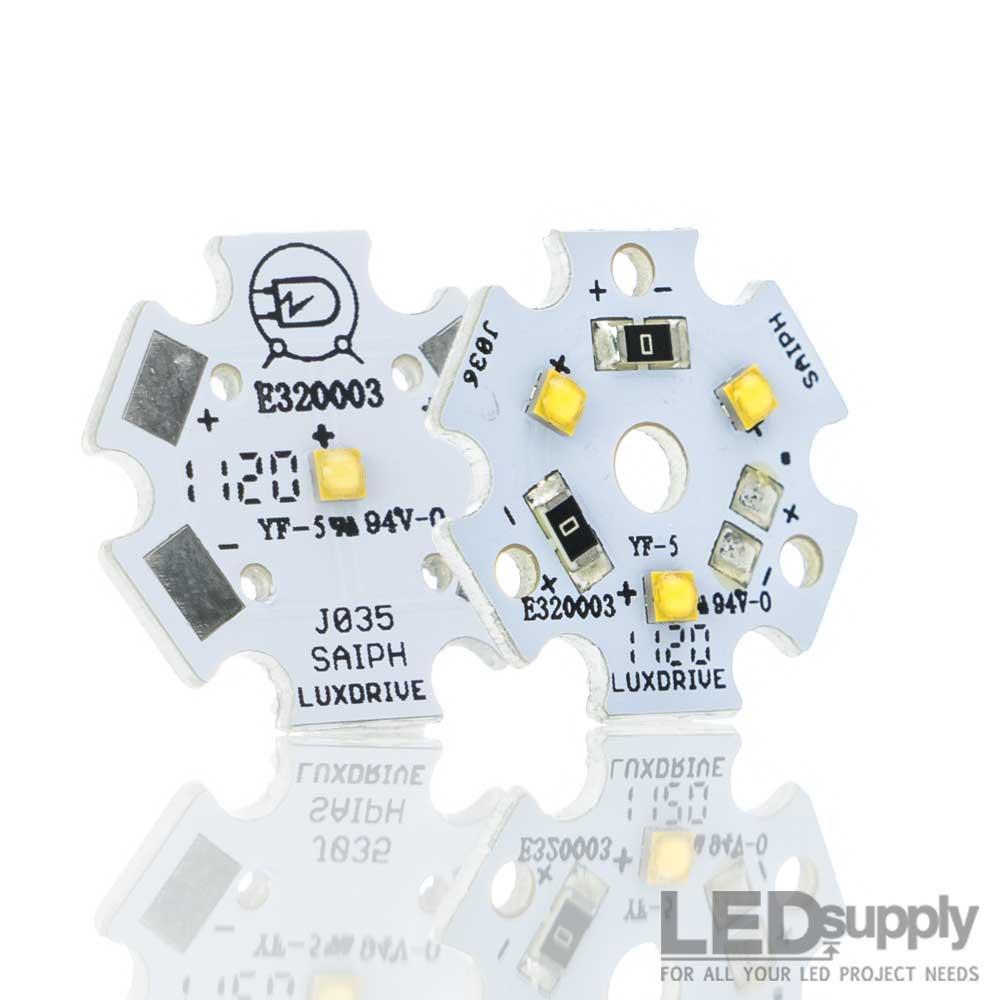

1-up luxeon c led star versus 3-up led star

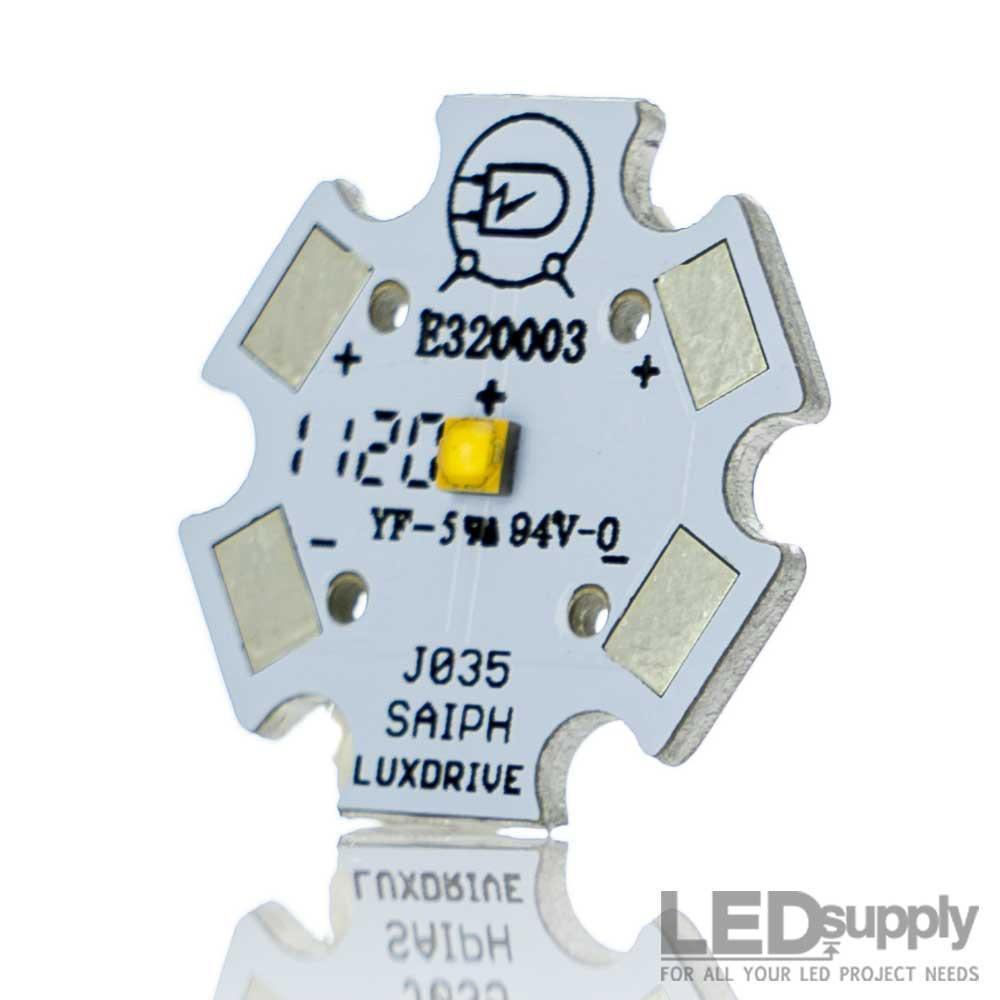

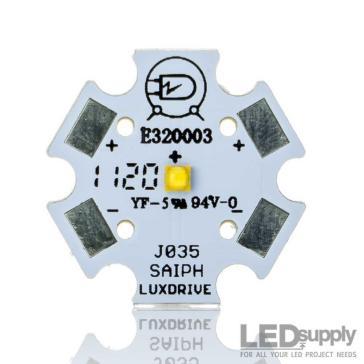

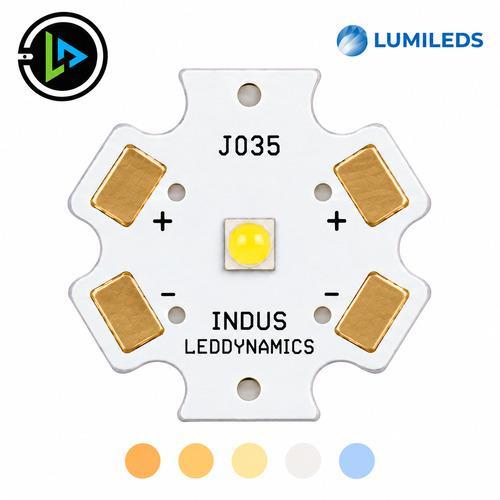

LED Star MCPCB

LuxDrive created a new Saiph Star metal core printed circuit board to account for the smaller 2x2mm package. The Saiph Star MCPCB comes in a single (1-Up: 1 LED) and a triple (3-Up: 3 LEDs). The 1- Up is a single LED reflow soldered to a 20mm hexagonal (LED Star) MCPCB. The MCPCB has four large solder pads for easy solder connections. The 3-Up is three (3) LEDs reflow soldered in-series to a 20mm hexagonal MCPCB. The 3-Up MCPCB has two solder pads for connections, mounting holes for secondary carclo optics and a center hole for wires or securing the LED star to a heat sink.

Color Temperature Options

We currently offer the Luxeon C in 5 CCT options: Warm White (2700K & 300K), Neutral White (4000K) and Cool White (5000K & 6500K).

1-up led star optic versus 3-up led star optic

Secondary Optics

Both versions (1-Up & 3-Up) are designed to work with secondary optics from Carclo; Carclo is a leader in molded poly-carbonate lens systems. The 1-Up secondary lens system combines a plastic holder and lens that sits on top of the 1-Up MCPCB, while the 3- Up optic is a one-piece system with three legs that sit down into corresponding holes on the 3-Up MCPCB. These secondary optics focus light into narrow, medium, wide and elliptical patterns. More option informatino and options are available on this page under the Accessories tab above.

Images, Part Numbers & Notes

Select the LED options near the 'add to cart' button to see the corresponding product image and part number. For referencing detailed specifications there are tables and downloadable documentation below. Important Note: Unless noted otherwise the specifications listed are for a single white LED. This means that in most cases the values need to be tripled for applications with the 3-Up version. For Example, if the forward voltage listed is 2.75V @ 350mA, the 3-Up version would be 8.25V.



Technical Documentation

Product Selection (TJ= 85° C)

Color LEDSupply # Performance @ 350mA
1-Up # 3-Up # Minimum
CRI
Typical
Lm/W
Minimum Luminous
Flux
Typical Luminous
Flux
2700K J035-L1C18270 J036-L1C18270 80 98 70 94
3000K J035-L1C18300 J036-L1C18300 80 106 90 102
4000K J035-L1C18400 J036-L1C18400 70 121 100 116
5000K J035-L1C18500 J036-L1C18500 70 122 100 117
6500K J035-L1C18650 J036-L1C18650 70 124 100 124



Notes for Table

  • Lumileds maintains a tolerance of ±2% on CRI and ±6.5% on luminous flux measurements



Optical Characteristics

Color Typ. Total
Included Angle
(degrees)
Typ. Viewing Angle
(degrees)
White 170 150

Notes for Optical Characteristics Table

  • Typical Total Included Angle = Total angle at which 90% of total luminous flux is captured.
  • Viewing angle is the off axis angle from the LED centerline where the lunious intensity is 1/2 of the peak value.



Electrical Characteristics at 350mA, TJ=85°

Color Part Number Forward Voltage (Vf) Typ. Temperature Coefficient
of Forward Voltage (mV/°C)
Typ. Thermal Resistance
Junction to Thermal Pad (°C/W)
Min. Typ. Max.
Far Red L1C1-FRD1000000000 1.50 1.90 2.30 -1.7 2.8
Deep Red L1C1-DRD1000000000 1.50 2.05 2.30 -1.7 2.8
Red L1C1-RED1000000000 1.75 2.00 2.50 -1.6 2.8
Red-Orange L1C1-RNG1000000000 1.75 2.05 2.50 -1.6 2.8
Amber L1C1-AMB1000000000 1.75 2.05 2.50 -2.0 2.8
PC Amber L1C1-PCA1000000000 2.50 2.75 3.50 -1.7 3.0
Lime L1C1-LME1000000000 2.50 2.75 3.50 -2.7 2.8
Green L1C1-GRN1000000000 2.50 3.05 3.50 -2.4 3.5
Cyan L1C1-CYN1000000000 2.50 3.05 3.50 -2.4 3.5
Blue L1C1-BLU1000000000 2.50 2.84 3.50 -2.6 3.5
Royal Blue L1C1-ROY1000000000 2.50 2.75 3.50 -1.7 2.8
Violet L1C1-VLT1000000000 2.50 2.83 3.50 -1.7 3.8

Notes for Table

  • Lumileds maintains a tolerance of ±0.06V on forward voltage measurements.
  • Measured between 25°C & 85°C



Absolute Maximum Ratings

DC FORWARD CURRENT 1225mA
PEAK PULSED FORWARD CURRENT 1500mA
LED JUNTION TEMP. 135°C
ESD SENSITIVITY Class 3B
LED STORAGE TEMP. -40°C - 135°C
SOLDERING TEMP. JEDEC 020c 260°C
ALLOWABLE REFLOW CYCLES 3
REVERSE VOLTAGE Luxeon C LEDs are not designed to be driven in reverse bias



Full Documentation
