  • LED light engine kit
  • Choose your kit options
  • We will build it for you or DIY!

Product Details

Fits 3-Up Star LED @ 500mA & Optic End Cap: 1/2" NPT Threaded Hole
Fits 1-Up Star LED @ 1000mA & Optic NEW Design: 3-piece threaded housing for easy changeover
Internally Holds Wired BuckPuck Driver Dimensions: 1.25" O.D. & 2.625" Tall

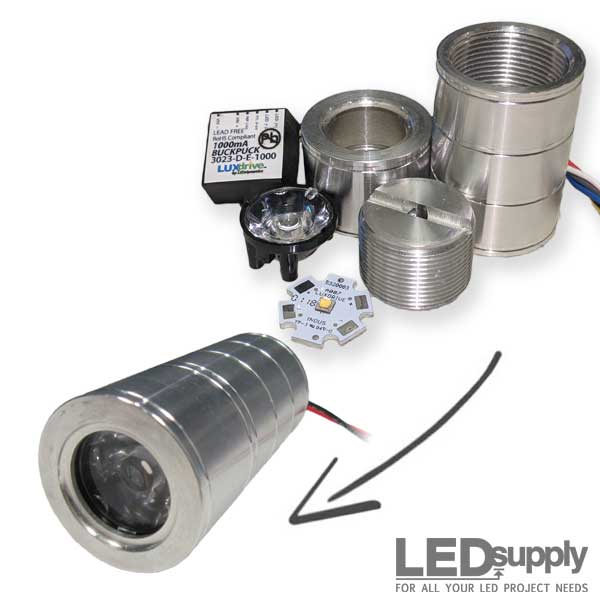

The 5 Watt LED Module is a complete LED light kit. The LED kit consists of:5 Watt LED Light Module Assembly

  • LEDSupply’s Dynamic LED light engine housing
  • (1) LED of your choice
  • (1) LED Optic (Spot, Medium, Wide, Oval)
  • (1) Optic Holder (not needed for 3-Up Kits)
  • (1) Luxdrive 03023-D-E-XXX LED Driver

The LED kit includes a driver so that all the user needs is a constant voltage power supply, preferably 12VDC to power the light engine and make the kit complete. The LED light engine will come pre-assembled with wires coming out the back of the housing. Simply connect constant voltage DC power and it is good to go!

The Heatsink Housing

The heatsink housing is our dynamic LED light engine housing. This is a three piece, 6061-T6 billet aluminum housing. The heatsink will safely house your LED, optic and driver but doubles as a heatsink due to us assembling the unit for you with Arctic Silver thermal grease. The exact dimensions of the heatsink are: 1.25" Outside Diameter, 2.625" Tall.


The LED light kit can be purchased with either a 1-up or 3-up board from any of our Cree or Luxeon offerings. Choose the LED type and color from the drop downs in order to have that specific LED built into the custom LED module.

LED Optic

What type of light output is needed? Spot, Medium, Wide, or Oval throw? Choose from these choices to choose how focused the LED light output will be.

Constant Current LED Driver

For each LED light kit we will include a Wired BuckPuck driver. This driver will make sure the LED runs at a safe drive current while outputting the most possible light. Typical power for the kit will be 4-5 Watts! This is a dimmable driver as well so you can pair with a potentiometer or 0-10V dimmer in order to adjust the light output. The power and dimming wires will come out the back of the unit upon purchase where all you will need is a constant 12VDC to run the unit.

Need more than 5 Watts? Check out the new 10 Watt LED Light Engine. This heatsink is a larger version of the 5 Watt that can handle more power/light output.
