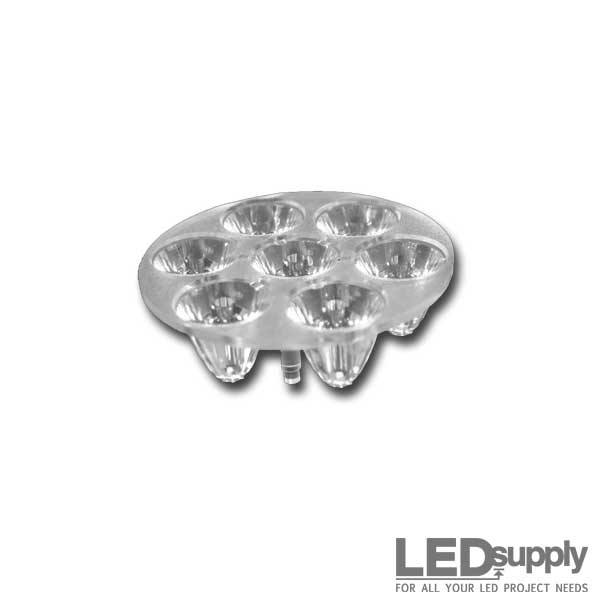

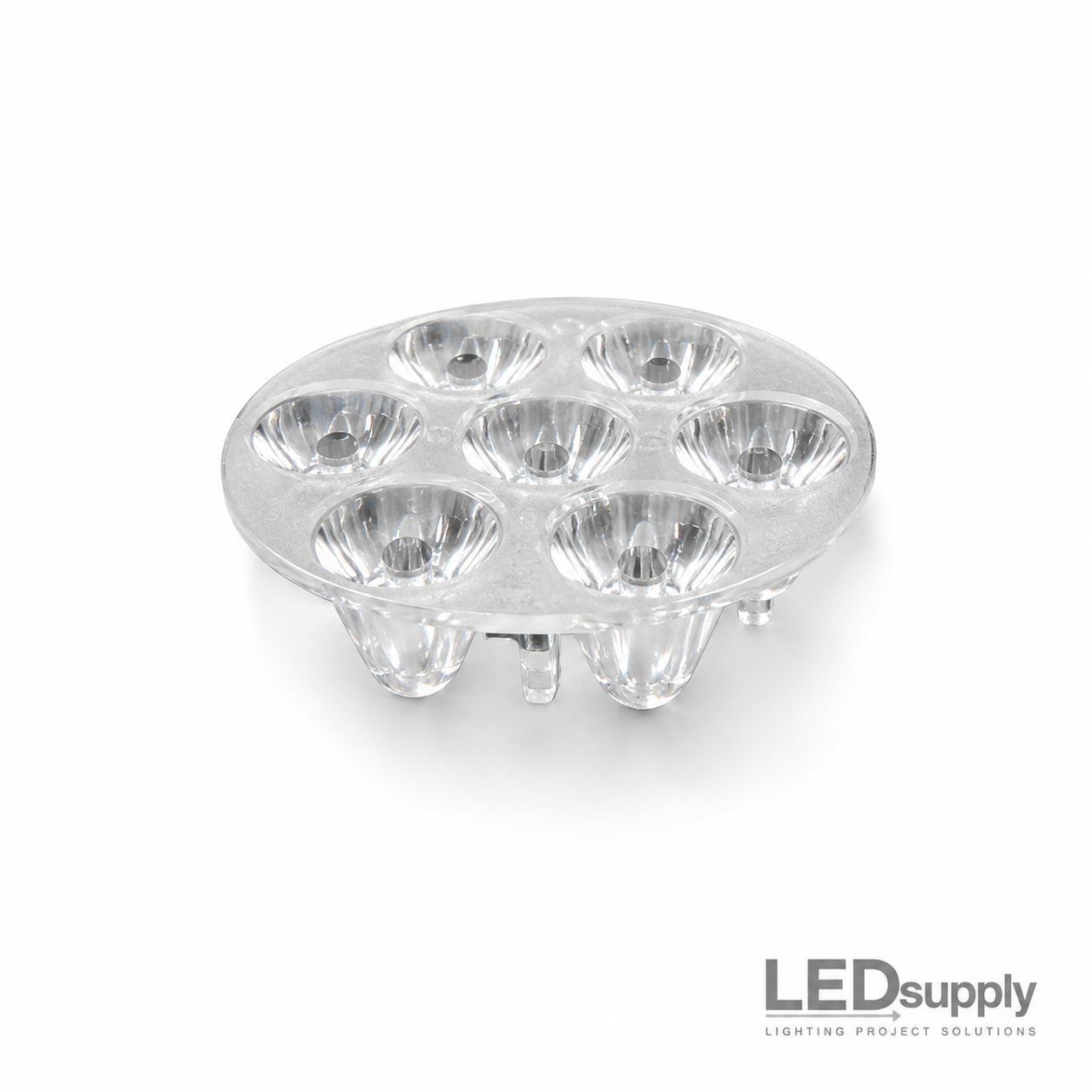

Optic: 40mm 7-Up TIR Lens Array - Narrow Spot LED Optic - Khatod PL121106

More images

Optic: 40mm 7-Up TIR Lens Array - Narrow Spot LED Optic - Khatod PL121106

PL121106 Khatod 7-Up Narrow Spot LED Optic

Regular Price: $6.31

Sale Price: $5.68

You Save: $0.63

PART #: PL121106

HIGHLIGHTS

40mm Cluster Optic - Works great w/ 7up LED
Beam Angle: 13 Degrees
Circular Beam Shape
Compatible with L1C1-7UP-840 Module

CONFIGURE & BUY

Purchase

TEMPORARILY OUT OF STOCK

Get Notified When Back In Stock?

PN: PL121106

THIS OPTION IS TEMPORARILY UNAVAILABLE

QTY

0 PCS IN-STOCK

Ordering for a larger project?
Ask about volume pricing

VOLUME DISCOUNTS
QTY	10 - 49	50 - 99	100 - 249	250 - 499
% OFF	2.5%	5%	7.5%	10%

Order by 3pm ET for
same-day shipping.

Free shipping available, click here for details.

Product Details

LED Compatibility: 2835, 3030	Lens Type: 7 LED Cluster Optic
Beam Shape: Circular (Spot)	Dimensions: 39mm (W) x 13.3mm (H)
Beam Angle: 13°	Mounting Type: Integrated Legs
Lens Material: Polycarbonate
High Lighting Efficiency: >90%	Fits the 7-Up Luxeon C Light perfectly

Description

The Khatod PL121106 is a narrow beam secondary optic from Khatod’s Zeta Lenses line. The 40mm round optic is a cluster type made for 7 LED arrays (like our Luxeon C 7-up LED). The lens is precision molded from optical grade polycarbonate for thermal stability and durability. Superior optical engineering makes for a perfect uniform light distribution and high light collection efficiency (>90%).

The optic includes stand-off legs for mounting directly onto your PCB.

Create your own LED light!

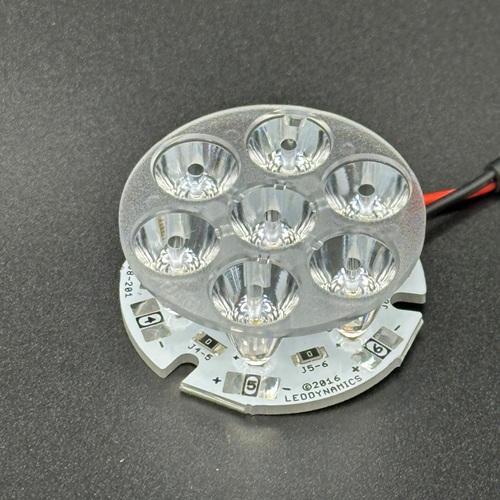

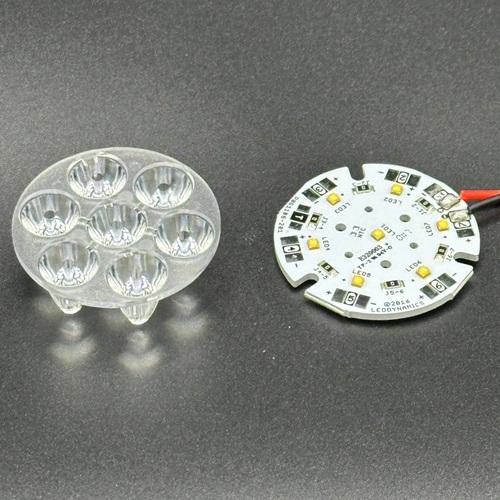

Create your own lighting unit by combining the PL121106 Optic with one of our Luxeon C 7-Up LED light modules. The 40mm diameter lens is perfect for building compact, high flux output LED lights for a variety of lighting applications like:

High Output flashlights
Bicycle headlights
LED downlights
Spotlights
Wall Wash and Accent lighting
High Brightness Lamps

Full Documenation

Khatod PL121106 Narrow Spot Optic Data Sheet
