4-Zone LED Strip Wall Remote Control

Description

Wall Control for LED Strip Lighting Projects

The 4-Zone LED Strip Wall Remote Control gives customers a simple, phone-free way to control compatible LED strip lighting systems. It is designed for use with MiBoxer/Mi-Light 2.4GHz LED controllers and smart lighting products, making it a useful add-on for projects where app control is available but a dedicated wall control is preferred.

Choose the Right Control Type

This wall remote is available in three control styles to match the LED strip setup:

Brightness Control is best for single-color white LED strip installations where the customer mainly needs on/off and dimming.

RGBW Control is used for RGBW LED strip projects where customers want color selection, white mode, dimming, dynamic modes, and multi-zone control.

RGB+CCT Control is the most complete option for RGB+CCT LED strip projects, offering color control, white light control, color temperature adjustment, brightness adjustment, saturation adjustment, and dynamic mode control.

4-Zone Lighting Control

Each remote can control up to four separate lighting zones when paired with compatible receivers or controllers. This is helpful for kitchens, built-ins, display lighting, cove lighting, shelving, retail displays, media rooms, and other projects where multiple lighting areas should be controlled from one wall location.

Better Everyday Control

App control is useful for schedules, scenes, and smart home features, but many customers still want a physical control on the wall. This remote gives the installation a more familiar light-switch experience while keeping the benefits of a wireless LED control system. It is especially useful when multiple people need to control the lights without opening an app.

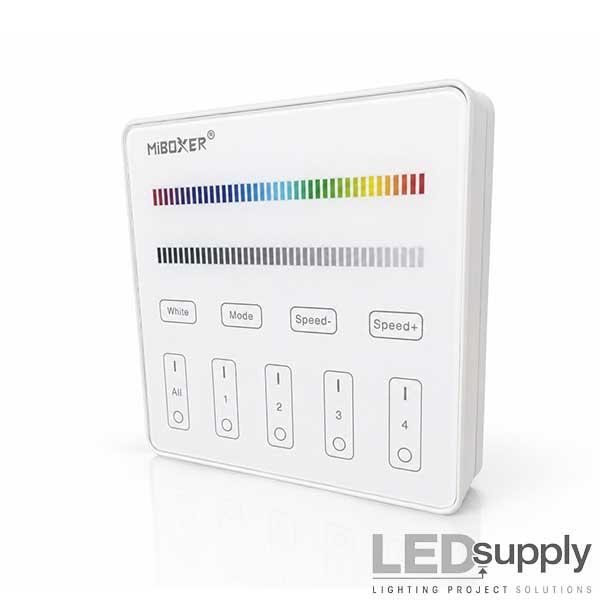

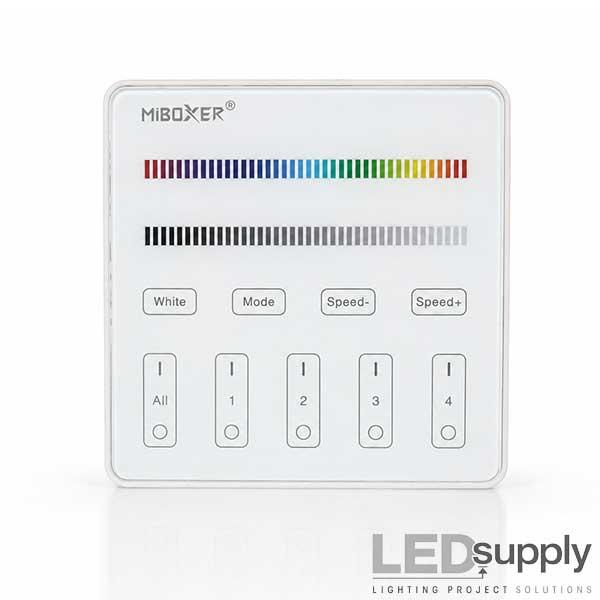

Touch Panel Design

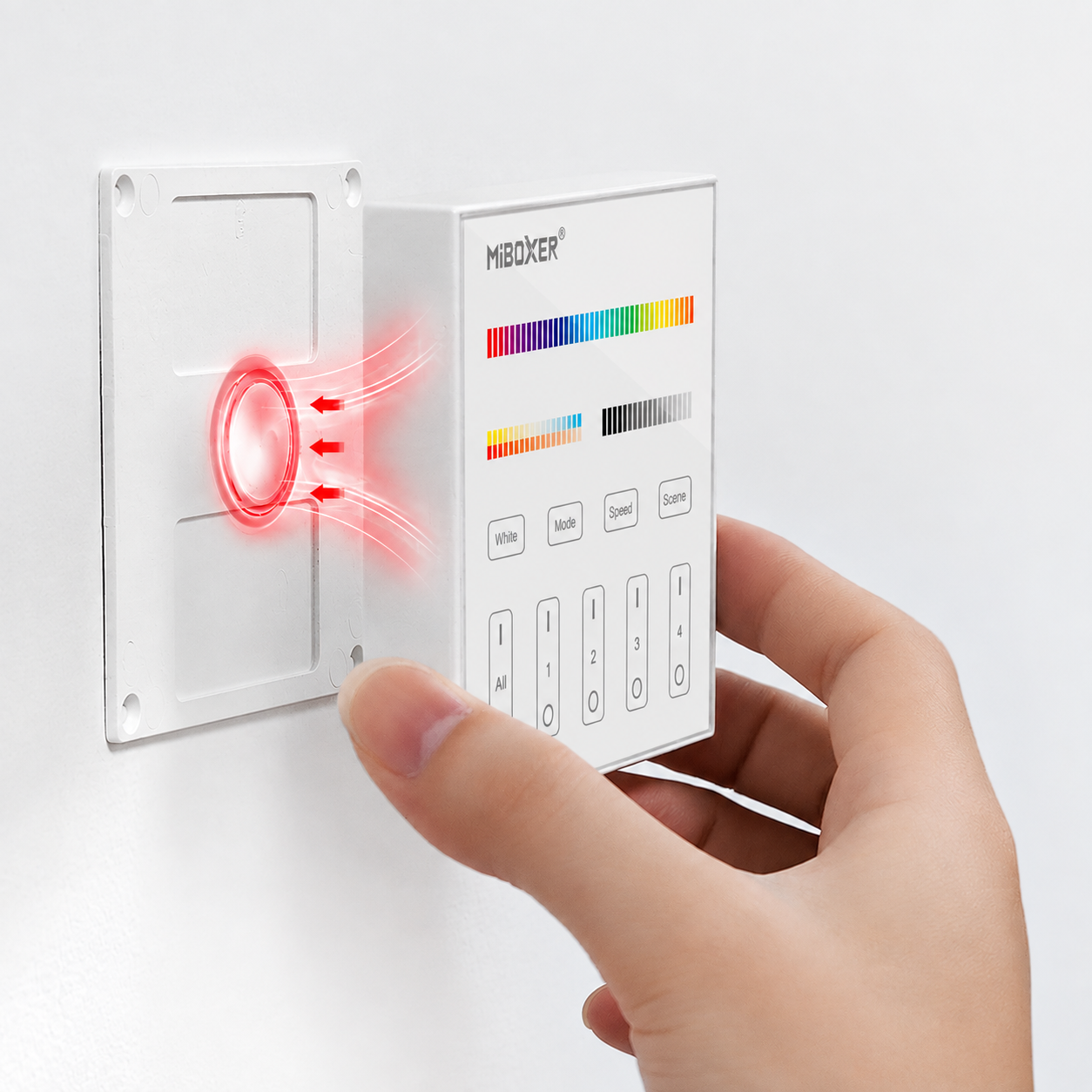

The B-Series panel remotes use a slim capacitive touch interface with a clean 86mm × 86mm wall-mounted design. The remote attaches to the wall holder magnetically, so it can stay in place like a traditional wall control or be removed and used as a handheld remote when needed. Depending on the selected model, the panel may include dimming sliders, color sliders, CCT/saturation control, white mode, mode selection, speed adjustment, zone on/off buttons, and all-on/all-off control..

Installation and Pairing

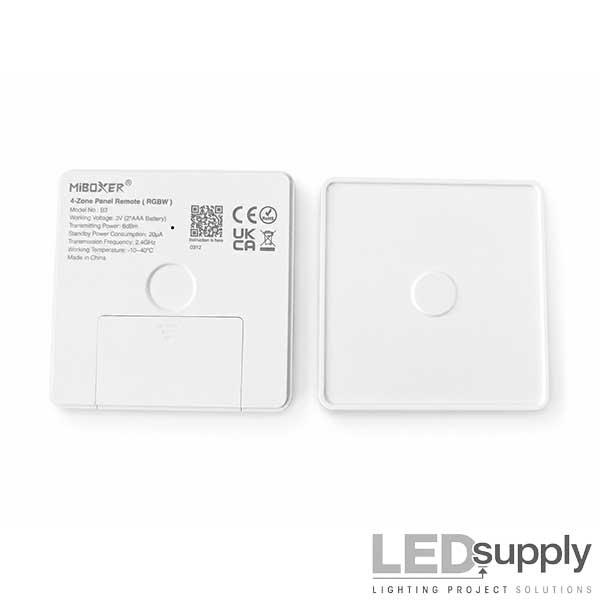

The remote installs using the included wall holder and is powered by two AAA batteries. Pairing is handled through the compatible controller or lighting receiver. To link a zone, power cycle the light, then press the desired zone on button three times within three seconds. A slow three-blink response confirms successful linking. To unlink, press the same zone on button five times within three seconds; ten quick blinks confirm unlinking.

For best wireless performance, avoid installing the remote or receiver near large metal surfaces or strong electromagnetic interference, as this can reduce control distance.
