When an LED landscape light stops working, many homeowners and installers assume the entire fixture needs to be replaced. In reality, the LED board is often the failed component. If the fixture housing is still in good shape, replacing the light source can be a more practical and cost-effective solution.
The challenge is that many landscape lighting systems run on 12VAC, while most standard LEDs are designed for DC constant-current operation. That makes direct replacement harder than it first appears.
To solve this issue, LEDsupply developed the 12VAC LED Kit for Landscape Lighting, a compact retrofit board designed specifically for low-voltage AC landscape fixtures.
Why LED landscape lights are difficult to repair
Unlike fixtures with replaceable MR16 or wedge-base lamps, many modern path lights, spot lights, and well lights use a built-in LED board. These boards are often small, round, and wired directly into the fixture. Once they fail, there may be no obvious replacement bulb to swap in.
There are a few reasons these repairs become difficult:
- The original LED board may be proprietary
- The fixture is powered from a 12VAC landscape transformer
- Many replacement LEDs on the market are not designed for AC input
- Board size, mounting pattern, and light output vary from fixture to fixture
In other words, replacing an LED in landscape lighting is not just about matching brightness. You also need to match the electrical requirements and the physical form factor.
What to check before replacing an LED board
Before selecting a replacement, inspect the fixture and measure a few key details.
1. Input voltage
Confirm the fixture is operating on 12VAC or 12V AC/DC. This is common in low-voltage landscape lighting, but it is important because many standard LED modules will not run correctly on AC power. If you don’t see specs on the product, please email us a photo and we can help.

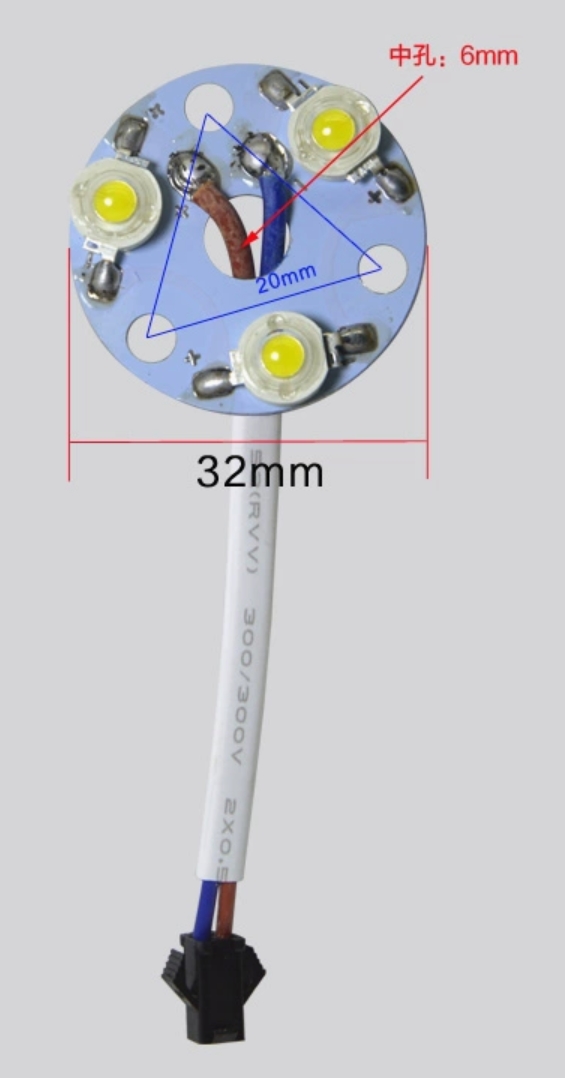

2. Board diameter
Measure the diameter of the original LED board. Compact landscape fixtures often require a small round board, so physical fit matters just as much as electrical compatibility.
3. Wattage and brightness
Many replacement applications fall in the range of 2 to 3 watts, which is often enough for path lights, accent lights, and compact spot lights. Matching output helps preserve the original lighting effect.
4. Color temperature
For landscape lighting, the most common choices are:
- 2700K for a warm residential look
- 4000K for a cleaner neutral white
- 5000K for a cooler, crisper appearance
5. Wiring and polarity

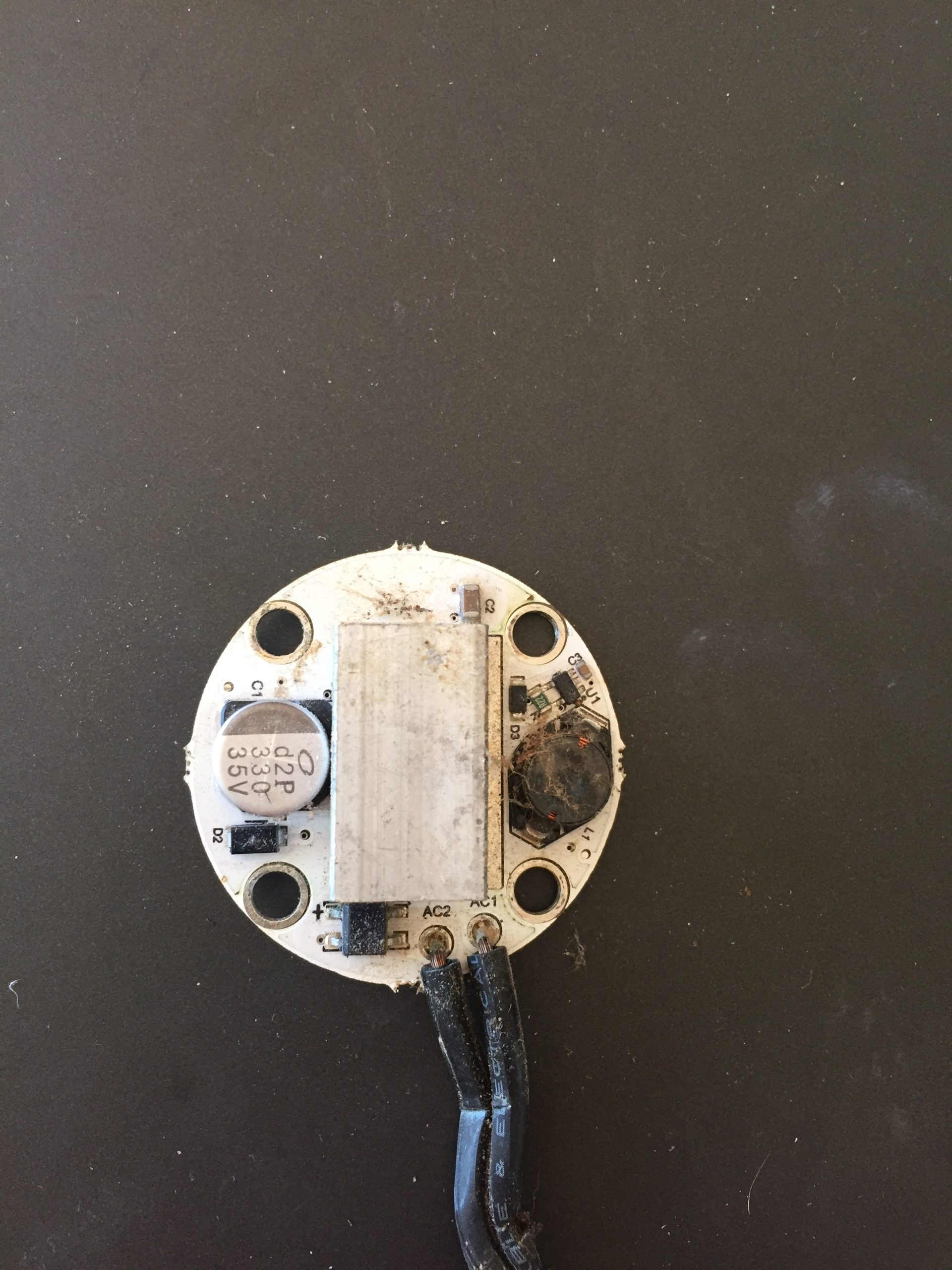

Some original boards are simple two-wire designs, while others include more complex circuitry. In AC landscape systems, a non-polar input can simplify installation.
Why standard LEDs are not always the answer
A common mistake is trying to replace a failed landscape LED board with a standard bare LED or star board. While these products are useful in many lighting projects, they usually require the correct driver and a stable DC supply.
That matters because a low-voltage landscape transformer typically outputs 12VAC, not regulated DC. Without the proper electronics, the replacement may not work, may flicker, or may fail prematurely.
This is why many landscape fixtures have historically been difficult to repair. Even when the original LED board is small and simple, the replacement still has to be compatible with the power source.
A simpler retrofit approach for 12VAC landscape lighting
For many repair and retrofit jobs, the best option is a compact LED board designed specifically for 12VAC landscape lighting.

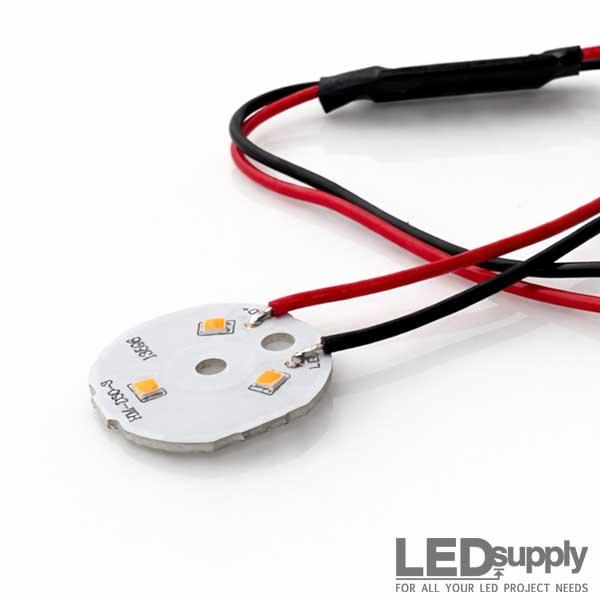

LEDSupply’s 12VAC LED Kit for Landscape Lighting was designed for this exact application. The module is built on a compact 30mm aluminum-core PCB and is designed to run directly from standard 12VAC landscape transformers. Unlike typical LED boards that require DC power, it includes integrated rectification and current regulation for stable performance in low-voltage AC systems.
Key features include:
- 30mm round board for compact fixture retrofits
- Integrated rectifier and current regulation for 12VAC operation
- 5-inch pre-wired leads for faster installation
- Center mounting hole for easier fixture mounting
- 2700K, 4000K, and 5000K options to match the application
A good retrofit board for this application should offer:
- Compatibility with 12VAC landscape systems
- A compact round form factor
- Prewired leads for easier installation
- Output suitable for decorative and accent landscape fixtures
- Multiple color temperature options
Where this type of retrofit works best
A 12VAC LED retrofit kit is especially helpful when the fixture itself is still worth saving. That includes situations where:
- The housing is in good condition
- The original LED board has failed
- The fixture uses an LED instead of a replaceable lamp
- You want to avoid replacing multiple fixtures just because one internal board stopped working
This approach is often a better fit than full fixture replacement when you are dealing with quality metal housings, matching installed fixtures, or hard-to-source legacy products.
Real Examples: Landscape Lights We’re Commonly Asked to Repair

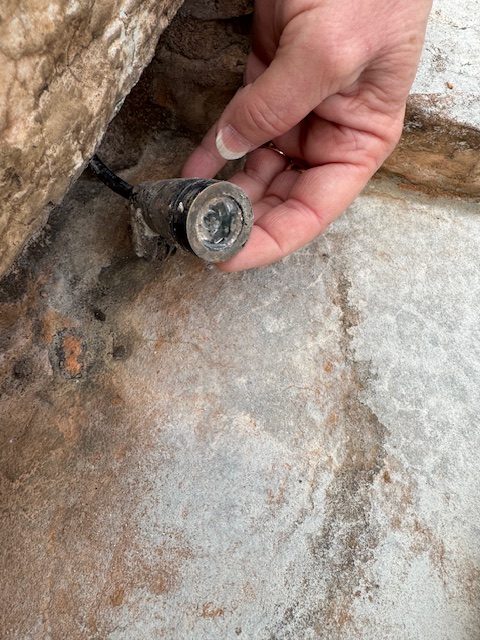

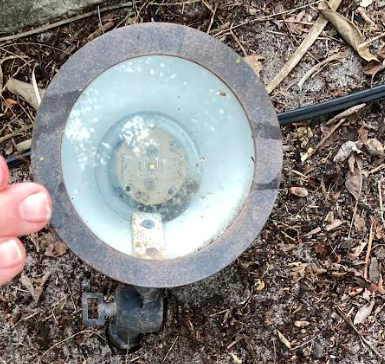

Many customer inquiries involve the same types of fixtures: path lights, spot lights, well lights, deck lights, and other compact low-voltage fixtures with built-in LED boards.

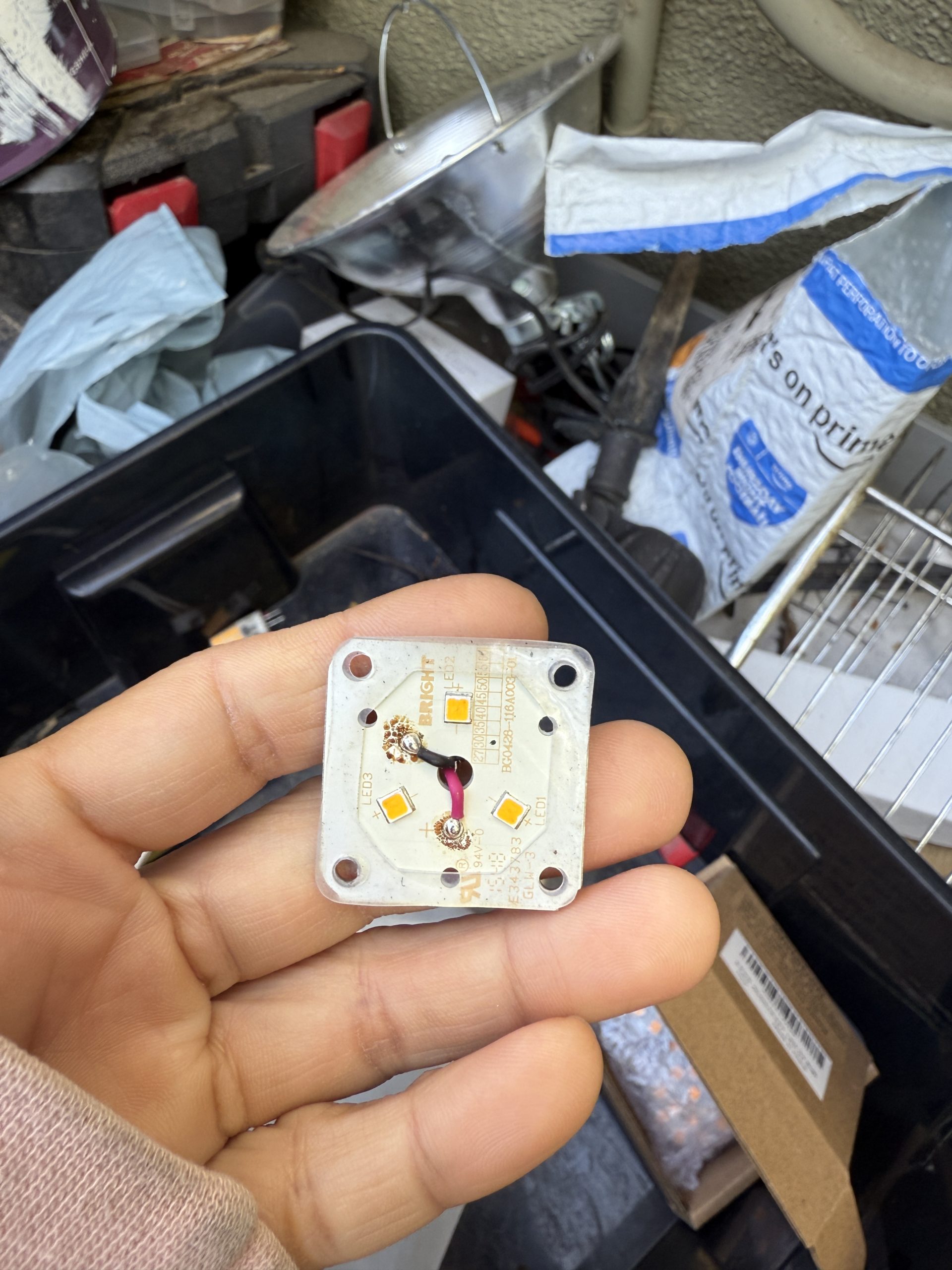

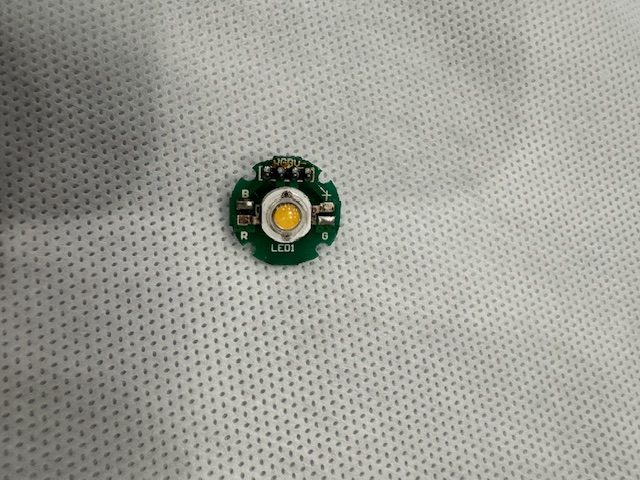

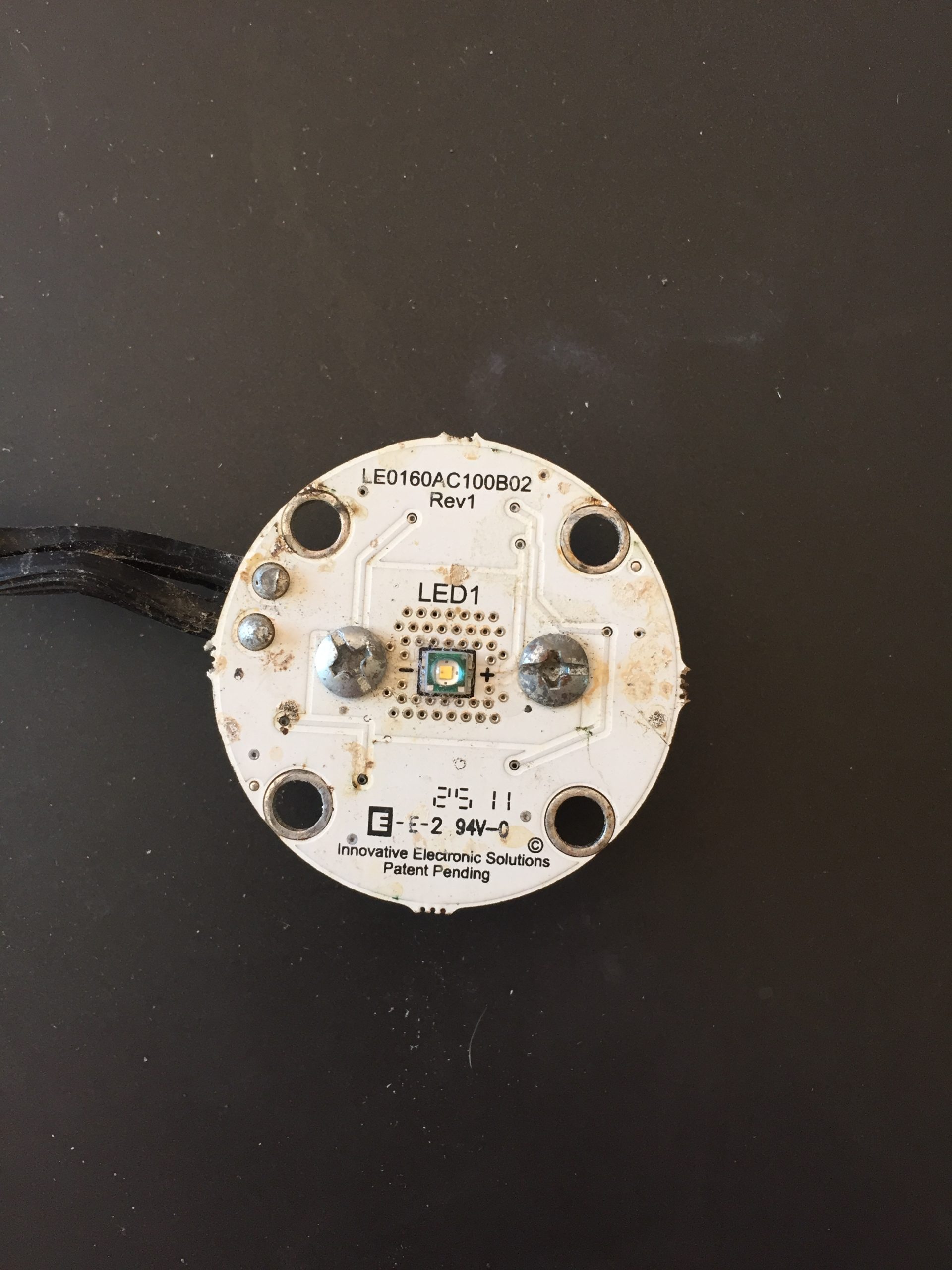

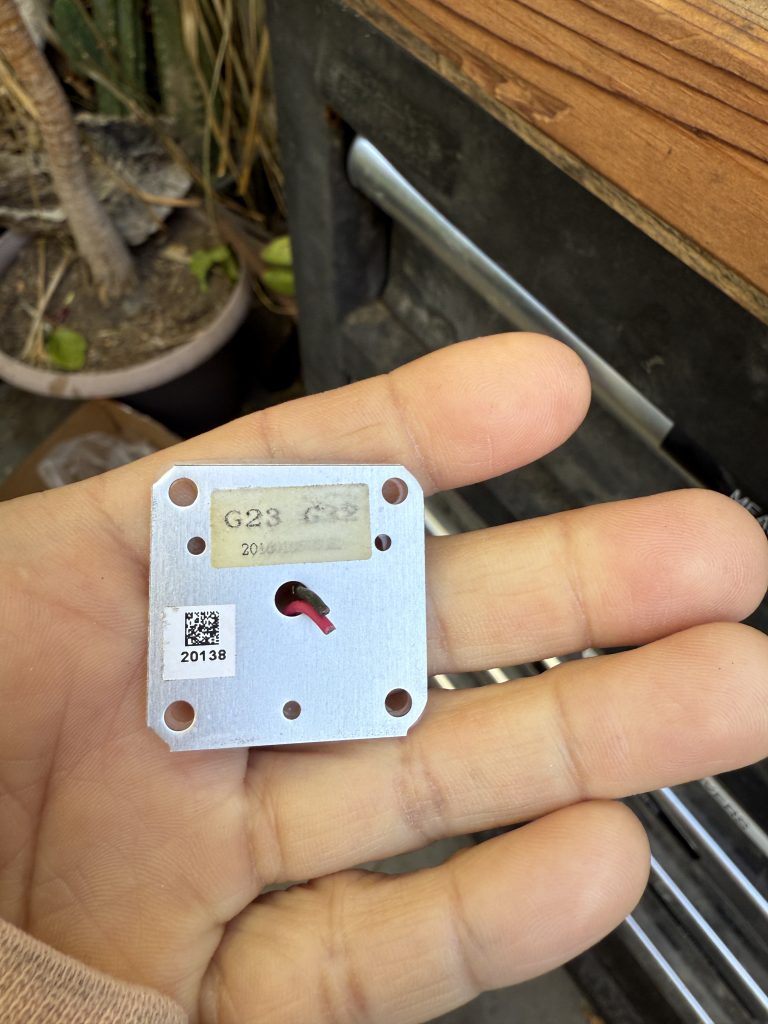

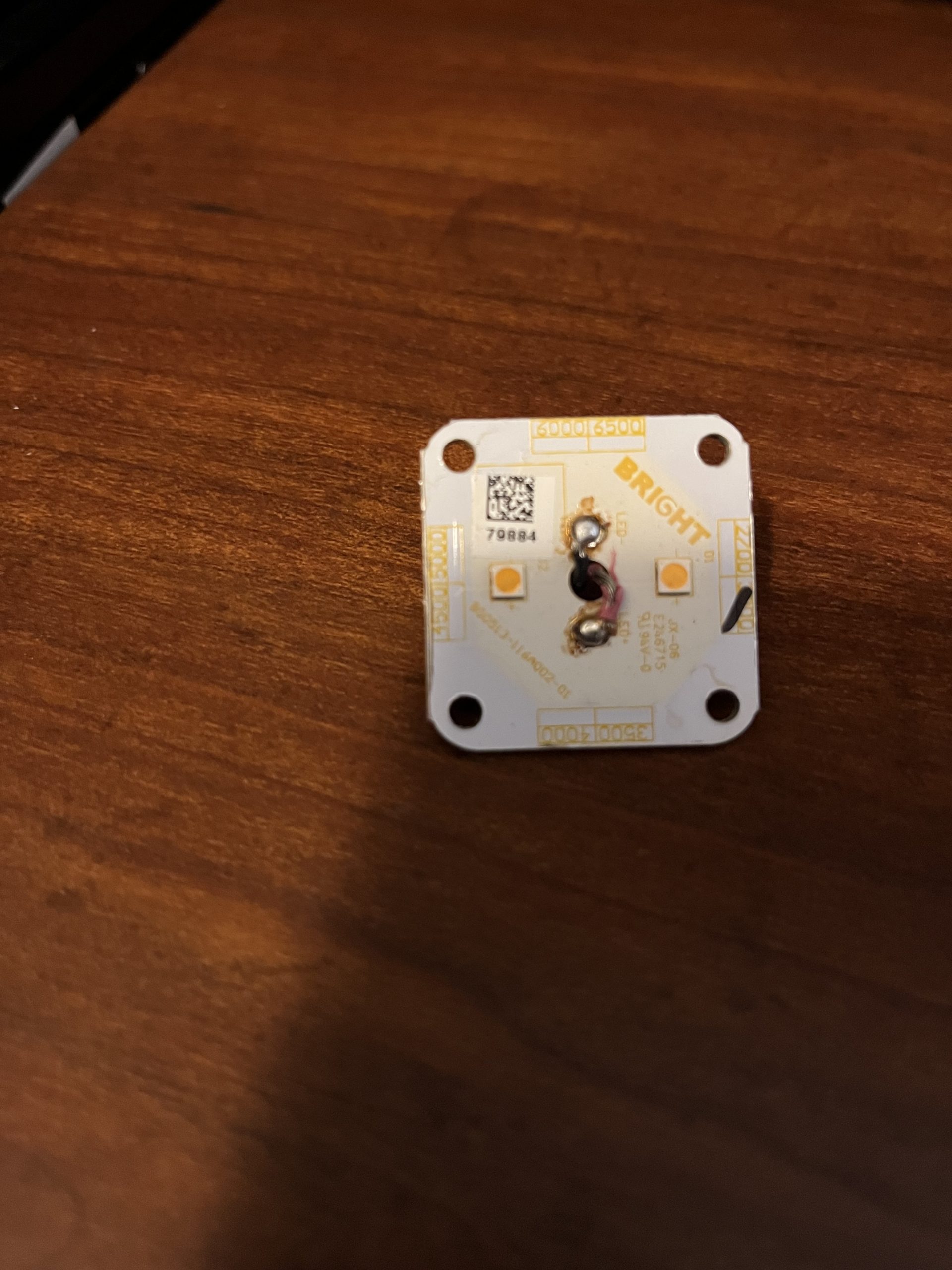

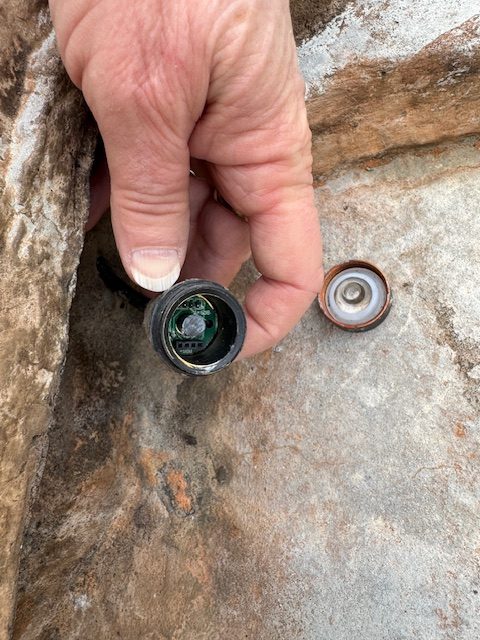

Customer photos can help identify good retrofit candidates. A small round LED board, two-wire connection, and 12VAC transformer are all common signs that a retrofit may be possible.
Some customers also search by brand name, especially when trying to repair older integrated fixtures. We have seen this with brands like Malibu, TimberTech deck lights, and LEONLITE landscape lights. In these cases, the key is not just the brand name – it is matching the input voltage, board size, light output, and color temperature.
That is exactly why LEDSupply developed the 12VAC LED Kit for Landscape Lighting: to offer a compact replacement option for the types of low-voltage fixtures customers ask about most often.
When replacement may still be difficult
Not every fixture can accept a universal retrofit. Some products use unusual board sizes, proprietary mounting features, or additional internal driver components. In those cases, the repair may require modification or may not be practical.
You should be cautious if:
- The original board has a unique shape
- The fixture includes sealed driver electronics
- There is very limited space inside the housing
- The original system uses a multi-board or multi-wire design
Even so, many common landscape fixtures can be repaired successfully if the replacement LED module is sized correctly and built for the electrical conditions of a 12VAC system.
Choosing the right color temperature
Color temperature has a major effect on the final appearance of a landscape lighting project.
2700K is typically the best choice for warm, inviting residential lighting. It works well along walkways, gardens, and architectural features where comfort and atmosphere matter.
4000K creates a more neutral appearance and can be useful when a cleaner, slightly brighter visual effect is desired.
5000K produces a cooler light that may be preferred in some security, task-oriented, or high-visibility outdoor applications.
When replacing one failed fixture in an existing system, it is usually best to match the surrounding fixtures as closely as possible.
Final thoughts
A failed LED does not always mean a failed landscape fixture. In many cases, the real issue is simply finding a replacement that matches both the 12VAC electrical system and the small form factor used inside landscape lights.
That is what makes purpose-built retrofit boards so valuable. Instead of forcing a standard LED into an application it was not designed for, you can use a solution made specifically for low-voltage outdoor lighting. If you are trying to replace a failed integrated LED in a low-voltage outdoor fixture, the 12VAC LED Kit for Landscape Lighting offers a simpler retrofit option than replacing the entire fixture.
