Luxeon Rebel Color LEDs

Luxeon Rebel Color LEDs
Click to enlarge

More images

Sale Price: $4.83
Compared at: $5.31
You Save: $0.48
PART #: 070xx-Px000-x
Volume Discounts
10 - 49
50 - 99
100 - 249
250 - 499
First Class
Priority Mail
FedEx Ground
UPS Ground
FedEx Express
Add to Cart

Product Details

Featured Specifications

Colors: Deep-Red, Red, Red-Orange, Amber, Lime, Green, Cyan, Blue & Royal-Blue Efficiency: Highest Efficacy Available for Colors, allowing for lower power consumption
Max Drive Current: Up to 1000mA Wide Viewing Angle: 125°
Secondary Optics: Compatible with Single & Triple Carclo Optics Binned: High Flux and Leading Hot & Cold Performance
Rebel Emitter Size: 3.17mm X 4.61mm Max. Junction Temp.: 150°C



The Luxeon Rebel Color LEDs continue with the quality and reliability that LUXEON is know for, delivering optimized combinations of light quality and light output needed for reliable lighting applications. The ecosystem of Luxeon Rebel LEDs is fully developed and tested, providing industry highs in use, light output, color stability, flux density and clear saturation.   The combination of colors (green, cyan, blue, royal-blue, red, red-orange, PC amber and amber) gives lighting designers a vast array of color hues to work with.

1-up led star optic versus 3-up led star optic

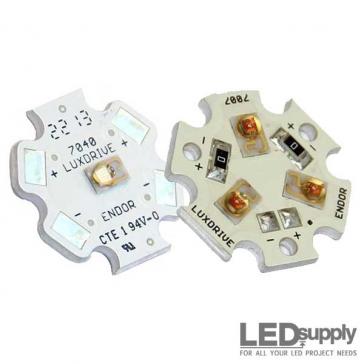

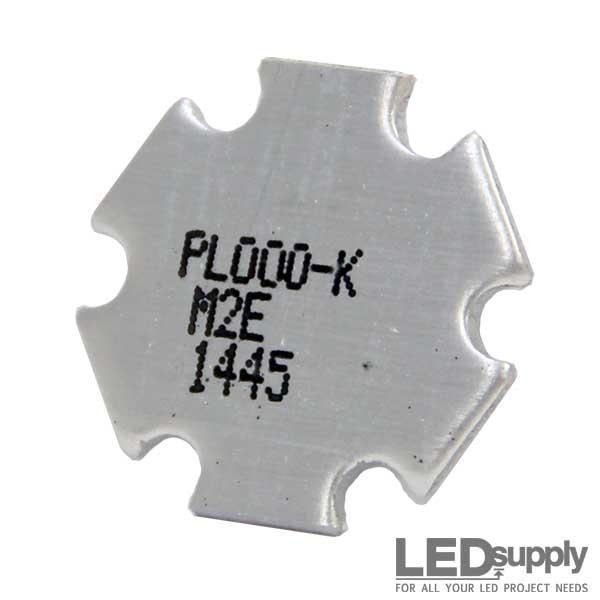

We offer the color Luxeon Rebel LEDs on two different Endor Star metal core printed circuit boards (MCPCB): a single (1-Up: 1 LED) and triple (3-Up: 3 LEDs). The 1-Up Endor Star board is a single Rebel LED reflow soldered to a 20mm hexagonal (LED Star) MCPCB. The MCPCB has four large solder pads for easy solder connections. The 3-Up Endor Star board is three (3) Rebel LEDs reflow soldered in-series to a 20mm hexagonal MCPCB. The 3-Up MCPCB has two solder pads for connections, mounting holes for secondary carclo optics and a center hole for wires or securing the LED star to a heat sink.


The colors available are:  Deep-Red (660nm), Red (627nm), Red-Orange (617nm), Amber (590nm), Lime (567), Green (530nm), Cyan (505nm), Blue (470nm) and Royal-Blue (447.5nm).  More Specifications on each color are listed below.

1-up led star optic versus 3-up led star optic

Secondary Optics

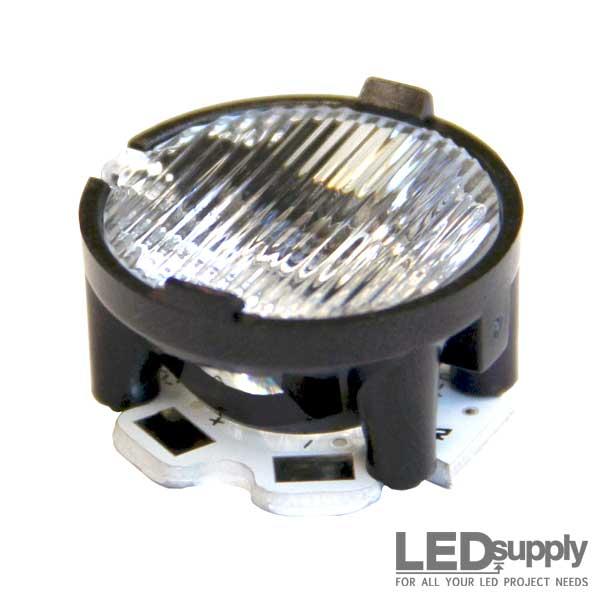

Both versions (1-Up & 3-Up) are designed to work with secondary optics from Carclo; Carclo is a leader in molded poly-carbonate lens systems. The 1-Up secondary lens system combines a plastic holder and lens that sits on top of the 1-Up MCPCB, while the 3- Up optic is a one-piece system with three legs that sit down into corresponding holes on the 3-Up MCPCB. These secondary optics focus light into narrow, medium, wide and elliptical patterns. More option informatino and options are available on this page under the Accessories tab above.

Images, Part Numbers & Notes

Select the LED options near the 'add to cart' button to see the corresponding product image and part number. For referencing detailed specifications there are tables and downloadable documentation below.  Important Note: Unless noted otherwise the specifications list are for a single Color Rebel LED. This means that in most cases the values need to be tripled for applications with the 3-Up version. For Example, if the forward voltage listed is 2.95V @ 350mA, the 3-Up version would be 8.85V.


Technical Documentation

Product Selection (TJ= 25° C)

Color LEDSupply #Luxeon # Performance @ 350mA Performance @ 700mA
1-Up #3-Up #Min. Luminous Flux (lm)
Radiometric Power (mW)
Typ. Flux Typ. Efficacy (lm/W) or
Radiant Efficacy for RB & DR
Typ. Luminous Flux (lm)
Radiometric Power (mW)
Typ. Efficacy (lm/W) or
Radiant Efficacy for RB & DR
Lime 07040-PX000-H 07007-PX000-H LXML-PM02-0000 160 167 174 N/A N/A
Green 07040-PM000-L 07007-PM000-L LXML-PM01-0100 100 102 100 161 68
Cyan 07040-PE000-K 07007-PE000-K LXML-PE01-0080 80 83 81 133 56
Blue 07040-PB000-D 07007-PB000-D LXML-PB01-0040 40 41 38 70 29
Royal-Blue 07040-PR000-E 07007-PR000-E LXML-PR01-0425 500mW 520mW 44% 840mW 37%
Deep Red 07040-PDRED-C 07007-PDRED-C LXM3-PD01-0350 350mW 360mW 46% 720mW 42%
Red 07040-PD000-F 07007-PD000-F LXM2-PD01-0040 40 48 65 90 56
Red-Orange 07040-PH000-G 07007-PH000-G LXM2-PH01-0070 70 72 98 134 83
PC Amber 07040-PL000-K 07007-PL000-K LXM2-PL01-0090 90 91 85 164 73
Amber 07040-PL000-F 07007-PL000-F LXML-PL01-0060 60 61 60 98 39


Optical Characteristics

Color Dominant Wavelength
Peak Wavelength
Typ. Spectral
Half-Width (nm)
Typ. Temperature Coefficient
of Dominant Wavelength
Typ. Total
Included Angle
Typ. Viewing Angle
Min. Typ. Max.
Lime 566nm 567.5nm 569nm 100 0.01 160 125
Green 520nm 530nm 550nm 30 0.05 160 125
Cyan 490nm 505nm 520nm 30 0.04 160 125
Blue 460nm 470nm 490nm 20 0.05 160 125
Royal-Blue 440nm 447.5nm 460nm 20 0.04 160 125
Red 620nm 627nm 645nm 20 0.05 160 125
Deep Red 650nm 655nm 670nm 20 0.05 160 125
Red-Orange 610nm 617nm 620nm 20 0.08 160 125
Amber 584.5nm 590nm 597nm 20 0.10 160 125
PC Amber 588nm 591nm 592nm 80 0.10 160 120

Notes for Table

  • LXML-PR01-XXXX, LXM2-PL01-XXXX and LXM3-PD01-XXXX emitters are tested at 350 mA, LXML-PR02-XXXX emitters are tested at 700 mA.
  • Dominant wavelength is derived from the CIE 1931 Chromaticity diagram and represents the perceived color. Philips Lumileds maintains a tolerance of ± 0.5 nm for dominant wavelength measurements.
  • Royal-blue product is binned by radiometric power and peak wavelength rather than photometric lumens. Philips Lumileds maintains a tolerance of ± 2nm for peak wavelength measurements.
  • Spectral width at ½ of the peak intensity
  • Total angle at which 90% of total luminous flux is captured.
  • Viewing angle is the off axis angle from lamp centerline where the luminous intensity is ½ of the peak value.
  • PC amber, green, cyan, blue and royal-blue products are built with Indium Gallium Nitride (InGaN).
  • All red, deep red, red-orange, and amber are built with Aluminum Indium Gallium Phosphide (AlInGaP).


    Electrical Characteristics

    Color Part Number Forward Voltage (Vf) Typ. Temperature Coefficient
    of Forward Voltage (mV/°C)
    Typ. Thermal Resistance
    Junction to Thermal Pad (°C/W)
    Min. Typ. Max.
    Lime LXML-PX02 2.60 2.75 3.00 -2.0 to -4.0 6
    Green LXML-PM01 2.55 2.90 3.51 -2.0 to -4.0 10
    Cyan LXML-PE01 2.55 2.90 3.51 -2.0 to -4.0 10
    Blue LXML-PB01 2.55 3.03 3.51 -2.0 to -4.0 10
    Royal-Blue LXML-PR01 2.55 3.03 3.51 -2.0 to -4.0 10
    Red LXML-PD01 2.31 2.90 3.51 -2.0 to -4.0 12
    Red LXM2-PD01 1.80 2.10 2.80 -2.0 to -4.0 8
    Deep Red LXM3-PD01 1.80 2.20 2.80 -2.0 to -4.0 8
    Red-Orange LXML-PH01 2.31 2.90 3.51 -2.0 to -4.0 12
    Red-Orange LXM2-PH01 2.31 2.90 3.51 -2.0 to -4.0 8
    PC Amber LXM2-PL01 2.55 3.05 3.51 -2.0 to -4.0 10
    Amber LXML-PH01 2.31 2.90 3.51 -2.0 to -4.0 12

    Notes for Table

  • LUXEON Rebel ES royal-blue measured between 25°C = Tj = 110°C and If = 700 mA
  • Measured between 25°C = TJ = 110°C at If = 350 mA.
  • Philips Lumileds maintains a tolerance of ±0.06V on forward voltage measurements.

    Absolute Maximum Ratings

    Parameter Green/Cyan/Blue/Royal Blue ES Royal Blue/ES Blue/Lime Red/Deep Red/Red-Orange/AmberPC Amber
    DC Forward Current (mA) 1000 1000 700 700
    Peak Pulsed Forward Current (mA) 1000 1000 700 700
    Average Forward Current (mA) 1000 1000 700 700
    ESD Sensitivity < 8000V Human Body Model (HBM) Class 3A JESD22-A114-B
    LED Junction Temperature 150°C 150°C 135°C 130°C
    Operating Case Temperature -40°C - 135°C -40°C - 135°C -40°C - 120°C -40°C - 110°C
    Storage Temperature -40°C - 135°C -40°C - 135°C -40°C - 135°C -40°C - 135°C
    Soldering Temperature JEDEC 020c 260°C
    Allowable Reflow Cycles 3 3 3 3
    Autoclave Conditions 121°C @ 2 ATM
    100% Relative Humidity for 96 Hours Maximum
    Reverse Voltage (Vr) Luxeon Rebel LEDs are not designed to be driven in reverse bias


    Important Information

    Average Lumen Maintenance Characteristics LUXEON Rebel color emitters are tested and binned at 350 mA and LUXEON Rebel ES royal-blue at 700 mA, with current pulse duration of 20 ms. All characteristic charts where the thermal pad is kept at constant temperature (25ºC typically) are measured with current pulse duration of 20 ms. Under these conditions, junction temperature and thermal pad temperature are the same.

    Philips Lumileds projects that green, cyan, blue and all royal-blue LUXEON Rebel color products will deliver, on average, 70% lumen maintenance (B50, L70) at 50,000 hours of operation at a forward current of 700 mA. This projection is based on constant current operation with junction temperature maintained at or below 135°C. Red, red-orange and amber LUXEON Rebel color products will also deliver, on average, 70% lumen maintenance (B50, L70) at 50,000 hours of operation at a forward current of 350 mA and is based on constant current operation with junction temperature maintained at or below 110°C. LUXEON Rebel PC amber delivers, on average, 70% lumen maintenance (L70) at 50,000 hours of operation at a forward current of up to 700 mA. This projection is based on constant current operation with junction temperature maintained at or below 130°C.

    This performance is based on independent test data, Philips Lumileds historical data from tests run on similar material systems, and internal LUXEON Rebel reliability testing. Observation of design limits included in this data sheet is required in order to achieve this projected lumen maintenance.


    Full Documentation


    Product Reviews

    Login or Register to write a review.
    Reviewed by
    02/05/2014 - 05:13:40 PM
    Luxeon Rebel Star LED
    I bought this Rebel Led about 20 months ago, to fabricate a set of LED turn signals, for my BMW dual sport motorcycle. I knew that it would be bashed, rained on, full of dust, and other why abused. I made the housing from Carbon Fiber, and used a 500ma puck driver from this website as well. These little lights are priced extremely competitive, and are very bright, in fact far brighter than the stock turn signals they replaced. The whole build can be seen here on adventure rider...


    Fantastic value, and still going strong, after being abused on the trail, and in the desert southwest sun.
