DRACO™ 6W LED Retrofit Kit for Outdoor Lamps - includes LED Module, 12V Driver + Dusk-to-Dawn Photosensor

More images

DRACO™ 6W LED Retrofit Kit for Outdoor Lamps - includes LED Module, 12V Driver + Dusk-to-Dawn Photosensor

Regular Price: $59.35

Sale Price: $43.49

You Save: $15.86

PART #: AL-LED6W-xx-KIT

HIGHLIGHTS

DRACO™ White (80+CRI) LED board
Long-life Nichia 757 LEDs (3000K/5000K)
Alternate light source for legacy fixtures!
Includes Dusk-to-Dawn Photosensor & Mean Well 12V Power Supply

Purchase

QTY

0 PCS IN-STOCK

ORDER BY 3PM EST FOR
SAME DAY SHIPPING

VOLUME
DISCOUNTS

PCS	% OFF
10 - 49	2.5%
50 - 99	5%
100 - 249	7.5%
250-499	10%

*Shipping Information

1st Class > $49.99	FREE
1st Class	$5.99
Ground	$11.99
2-Day	$15.99
Express	CALC

THIS OPTION IS TEMPORARILY UNAVAILABLE

Product Details

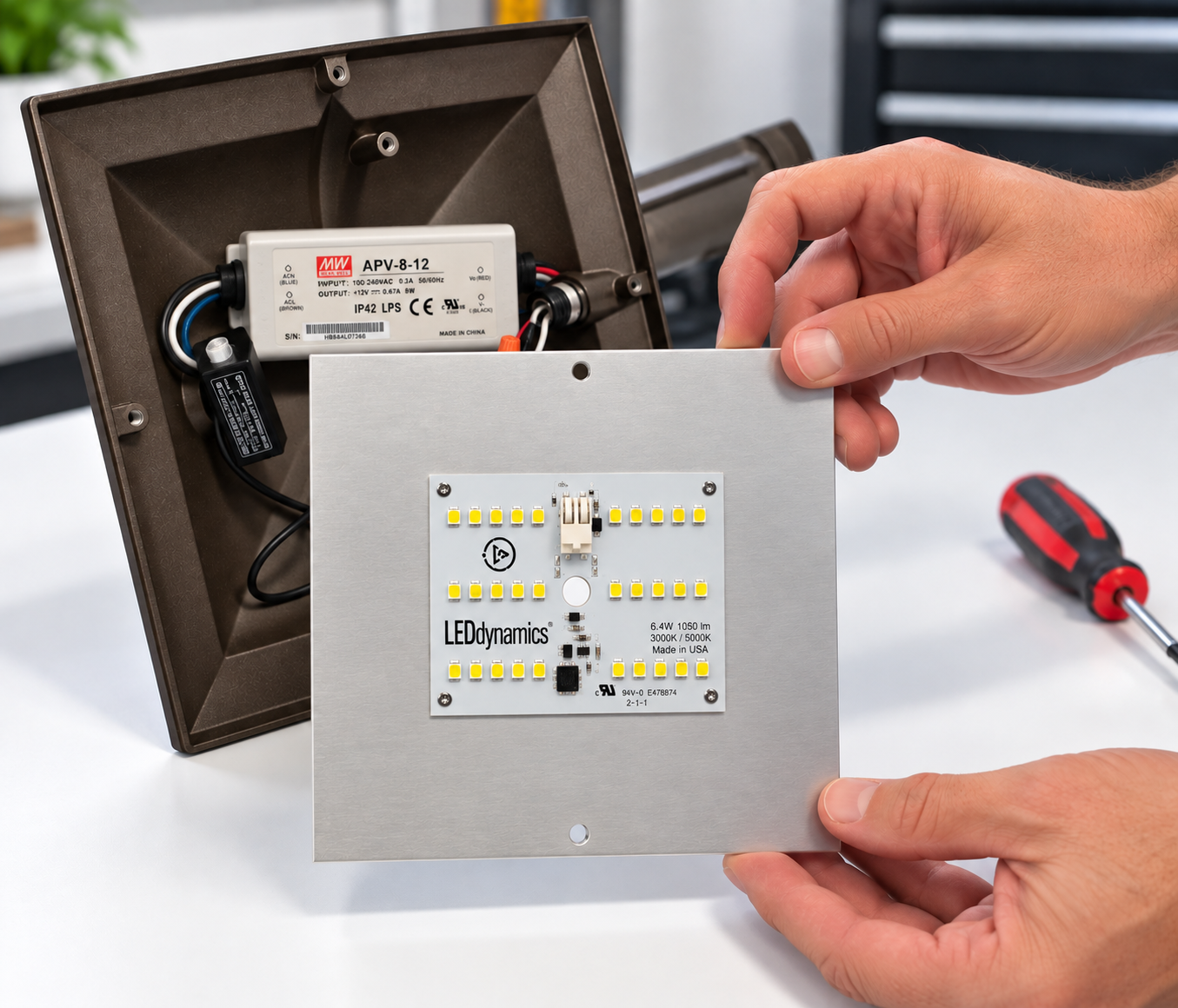

Our DRACO™ LED retrofit kit is a cost-effective, long-term solution for exterior lighting fixtures. The 6 Watt, high-efficacy LED kit can replace a 100-watt incandescent source while significantly reducing your home's energy costs. The retrofit kit features 30 Nichia 757 LEDs and provides a 120-degree light output. The LED board was built specifically for the provided 12V Power Supply, and the photocell switch makes it so you can set and forget your outdoor lighting fixture.

Complete LED Light Kit 6W LED Retrofit / Conversion	Includes: 3000K or 5000K LED Light Board, Mean Well 12V power supply & photocell switch
Super Bright: 1050 Lumens	Wattage: 6.4W
High Efficacy 175 Lumens/Watt	No Bulbs: 30 efficient Nichia LED chips offer an outstanding life-time!
LED Board Size: 2.4" x 2.9" Rectangle	Mounting: 4 Mounting holes in corners or Thermal Adhesive or tape
Color Temperatures: 3000K Warm White or 5000K Cool White	Premium Power Supply: 8W Mean Well
CRI: 80+ CRI

Description

This LED kit is perfect for replacing cheaply built light sources in high-end fixtures or for retrofitting legacy lighting fixtures using incandescent or halogen bulbs. Due to high demand we have an informative blog detailing the installation of this Kit in an Altair lantern.

6W Draco LED Light Engine

The Draco LED board was initially designed to replace cheap LED boards in outdoor lighting fixtures. This 6W board takes a simple 12V input due to onboard driver circuitry. The board was designed for easy-install with two poke-home input connections. Below the connection point is a .3" hole for discrete wiring.

Heatsinking - Extend Lifetime

To ensure your LEDs never overheat, it is best to use a small heatsink with the Draco LED board. Most LED fixtures you will be replacing already have an aluminum plate acting as a heatsink that you can mount the Draco to. If you need to fit a heatsink directly to the Draco, remember to find one suitable for 6 Watts of power (the total surface area roughly needs to be 6 square inches).

The Draco PCB has convenient .12" diameter mounting holes in each corner. We recommend 4-40 machine mounting screws and the washers should not exceed .25" in diameter. An alternative mounting method to machine screws is thermal adhesive tapes or pastes.

12-Watt Hatch Power Supply UPDATED to Mean Well 8 Watt in 2023.

The Mean Well APV-8-12 is a compact plastic case power supply suitable for indoor and outdoor lighting applications. The power supply accepts full 90-264VAC input and outputs 12VDC. The 18 AWG wire works perfectly for the poke-home connections on the Draco.

PhotoCell Switch Wiring

The photocell switch needs to be connected on the AC side of the power supply, then connected through the rest of the system. The wiring diagram below will help when connecting the LED retrofit kit.

Electrical & Environmental Information

Parameter
Input Power	120-277VAC
Mounting	Double Sided Adhesive included (additional mounting holes for screws)
LED Board Dimensions	2.9 x 2.4 x 0.2 in (73.66 x 60.96 x 5.1 mm)
Power Supply Dimensions	2.36 x 1.18 x 0.93 in (60 x 30 x 23.5 mm)
Photocell Dimensions	1.6 x 0.77 x 1.46 in (40.64 x 19.56 x 37.08 mm)
Operating Temperature	-20 to 80°C
Storage Temperature	-40°C - 120°C

Full Documentation

12V Draco LED Data Sheet

Wiring and Hookup Information

Accessories

Buy Retrofit Lantern Parts Separately

120V AC Photocell Light Sensor Switch

PART #: SWITCH-PHOTO

$9.49 Sale Price: $8.54

DRACO™ 12V White (80+CRI) LED Module: IP20, Constant Voltage, Nichia 757

The L013 DRACO™ is a high brightness 12V constant voltage LED light engine featuring 30 Nichia 757 mid power LEDs. Our brightest and most efficient LED light engine!

PART #: 0L013-N7H18xx60

$35.24 Sale Price: $29.75

MEAN WELL APV Series 8~35W Constant Voltage LED Power Supply

90~264VAC input, 8~35W rectangular plastic case style switching power supply with constant voltage output from Mean Well.

PART #: APV-X-X

$9.88 Sale Price: $8.98
