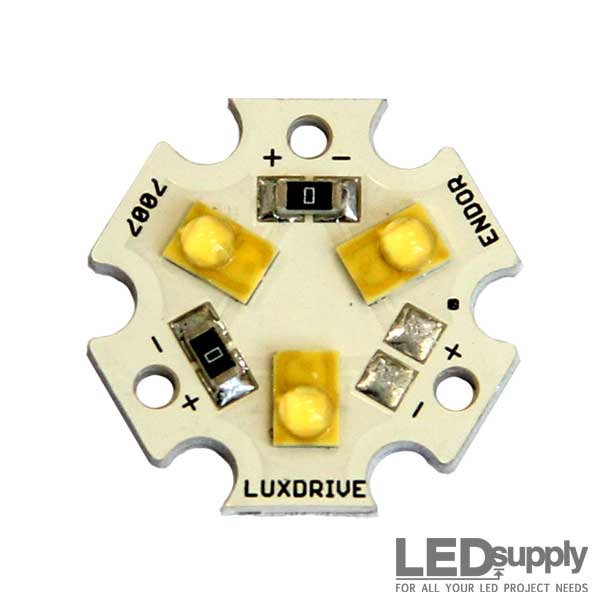

Luxeon R Triple (3-Up) Neutral-White LED Star
More images
Regular Price: $7.58
Sale Price: $6.82
You Save: $0.76
PART #: 07007-LXA7-40
VOLUME DISCOUNTS
First Class > $39.99
FREE
First Class
$3.99
Ground
$11.99
2-Day
$13.99
Express
CALC
Purchase
ORDER BY 3PM EST FOR
SAME DAY SHIPPING
SAME DAY SHIPPING
- Color Temp. (CCT): Neutral White 4000K
- 8.16Vf - Typ. Forward Voltage @ 350mA
- Max. Drive Current: 1000mA
Share:
 Neutral-White LED Star)
Product Details
| 375 lm @ 350mA | 8.16Vf - Typ. Forward Voltage @ 350mA |
| 750 lm @ 700mA | 8.40Vf - Typ. Forward Voltage @ 700mA |
| 975 lm @ 1000mA (MAX) | 8.55Vf - Typ. Forward Voltage @ 1000mA |
| 75 - Typ. CRI | 120° - Viewing Angle |
| 4000K - Color Temperature | 150° C - Max Juntion Temperature |
Description
Due to over-stock we are able to offer the Luxeon R 7007-LXA7-40 Neutral-White triple high-power SMT LED star at closeout prices.
The Luxeon R line of LEDs offer illumination grade light quality for outdoor and industrial lighting applications. The high flux output (over 200 lumens at 700mA) and low price make the Luxeon R an ideal choice for applications that require a quick ROI. The color rendering index (CRI) of the Luxeon R is 75 (lower than some), but that is the trade off for high lumens and is why the LED is designed for outdoor and industrial lighting applications where light quantity is more a priority than light quality.
The Luxeon R LXA7-PW40 LED is compatible with triple (3-Up) Carclo optics; the LXA7-PW40 emiiter is also available re-flowed to a single (1-Up) metal core printed circuit board (MCPCB). The single LED Star (1-Up) can be found here.
Technical Documentation
| Color Temperature | Part# | Min. CRI | Typ. CRI | CAT Code | Max Flux @350mA | Max Flux @700mA | Max Flux @1000mA |
| 4000K | LXA7-PW40 | 70 | 75 | Q53R | 125 | 750 | 975 |
Notes for Table
- For complete documentation please reference the MFG datasheet
| Normal ANSI CCT | Typ. Color Temp. CCT | Total Angle (degrees) | Typ. Viewing Angle (degrees) |
| 4000K | 3985K | 160 | 120 |
Notes for Table
- For complete documentation please reference the MFG datasheet
| Part# | Min. Forward Voltage | Typ. Forward Voltage | Max. Forward Voltage | Temp. Coefficient | Thermal Resistance Junction |
| LXA7-PW40 | 8.25 | 8.40 | 9.00 | -1.8 to -2.4 | 6 |
Notes for Table
- For complete documentation please reference the MFG datasheet
