Ultraviolet (UV-C) 275nm Seoul Viosys LED Module

More images

Regular Price: $21.99
Sale Price: $19.99
You Save: $2.00
PART #: A00x-EGBF27508
VOLUME DISCOUNTS
PCS
% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
Shipping Information*
First Class
FREE
Fedex 2-Day
$7.99
FedEx Ground
$8.99
UPS Ground
$9.99
FedEx Express
CALC

Purchase

0 PCS IN-STOCK

ORDER BY 3PM EST FOR
SAME DAY SHIPPING
  • UV-C Wavelength: 275nm
  • Maximum Drive Current: 200mA
  • Great for Sterilization

Product Details

Wavelength: 275nm Radiant Flux: 11.5mW @ 100mA
Max Drive Current: 200mA Viewing Angle: 125°
Forward Voltage: 5.6VDC @ 100mA Lens Type: Flat
Compliant: RoHS & Lead Free Max. Junction Temp.: 105°C


Description

The Seoul Viosys CA3535 series UV-C LED is designed for air and water sterilization, flurorescent spectroscopy and chemical and biological analysis. The CUD7GF1B package emits 275nm UV-C photons that penetrate cells and damage the nucliec acid, subsequently leaving them microbiologically inactive or dead. The Viosys package has been reflowed onto a 20mm metal core circuit in either a 1-Up or 3-Up LED configuration.

LED Star MCPCB

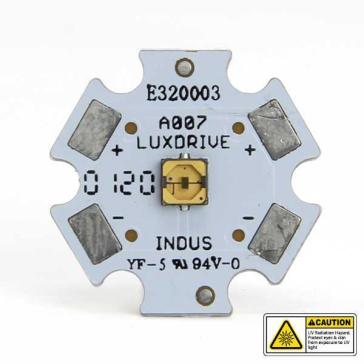

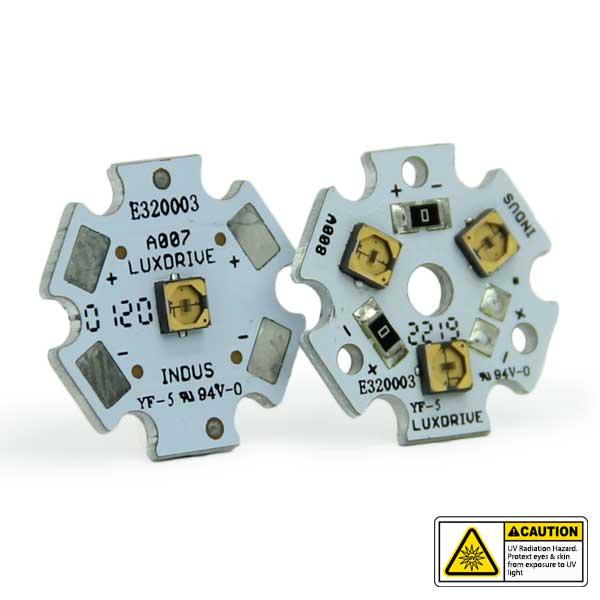

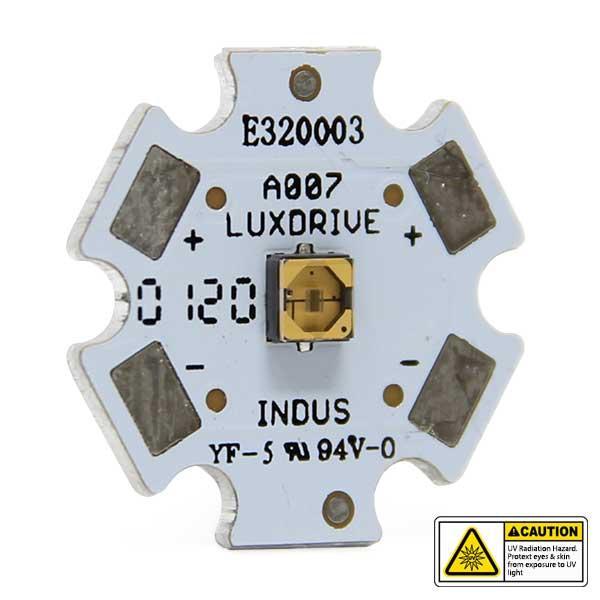

We offer this UV-C LED reflowed on your choice of two different metal core printed circuit boards (MCPCB) versions: a single (1-Up: 1 LED) and triple (3-Up: 3 LEDs). The 1- Up is a single UV-C LED reflow soldered to a 20mm hexagonal (LED Star) MCPCB. The MCPCB has four large solder pads for easy solder connections. The 3-Up is three (3) UV-C LEDs reflow soldered in-series to a 20mm hexagonal MCPCB. The 3-Up MCPCB has two solder pads for connections and a center hole for wires or securing the LED star to a heat sink.

Wavelengths

The UV-C LED is available in deep 275nm wavelength

Images, Part Numbers & Notes

Select the LED options near the 'add to cart' button to see the corresponding product image and part number. For referencing detailed specifications there are tables and downloadable documentation below.  Important Note: Unless noted otherwise the specifications list are for a single UV-C LED. This means that in most cases the values need to be tripled for applications with the 3-Up version. For Example, if the forward voltage listed is 2.95V @ 350mA, then the 3-Up version would be 8.85V and the lumen output would be tripled as well.



Technical Documentation

RADIOMETRIC POWER AND FORWARD VOLTAGE (TJ= 25° C)

Part
Number
Wavelength Performance at Test Current (100mA) Performance at 200mA
Bin Radiometric
Flux (mW)
Vf Radiometric Flux
(mW)
Min. Max. Min. Max.
CUD7GF1B
A007/A008-EGBF27508
(275nm) TBD 10 12 5.6 5.8 23


CHARACTERISTICS - Absolute Maximum Ratings (TJ= 25° C)

Characteristics
Rating
DC Forward Current mA
200mA
LED Junction Temperature
105° C
LED Operating Temperature
-40° C ~ 105° C
Storage Temperature
-40° C ~ 100° C
Thermal Resistance (J to S)
31.0
Power Dissipation
1.45W


Full Documentation
