5mm LED – RGB 30° Degree Viewing Angle

Description

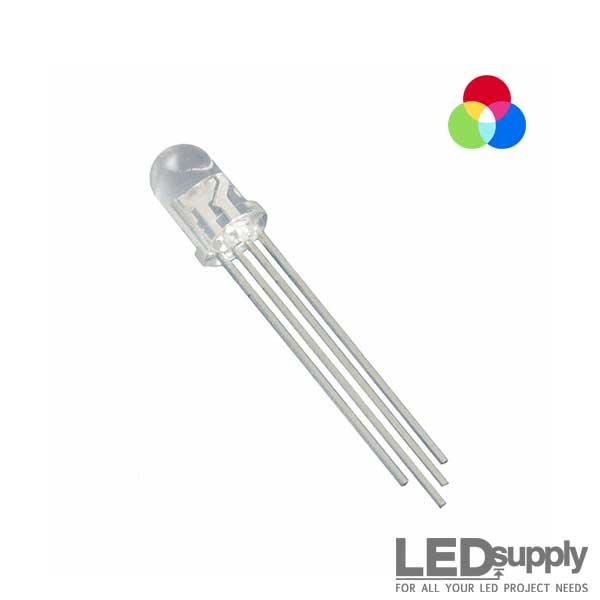

This 5mm RGB LED with a common anode pinout is perfect for electronics projects, DIY lighting, and indicator applications. The LED features a clear round lens with a 30° viewing angle, producing vivid red, green, and blue colors when driven individually or together for color mixing.

It operates at typical forward voltages of Red: 2.1V, Green: 3.0V, and Blue: 2.9V with a maximum forward current of 30mA per channel. Luminous intensities are bright enough for clear visibility: Red ~2250 mcd, Green ~10,500 mcd, and Blue ~2250 mcd at 20mA.

With 4 leads (B, G, Common Anode, R), it is easy to integrate into breadboards or PCBs for prototyping. The LED is RoHS compliant and comes packaged in anti-static bags

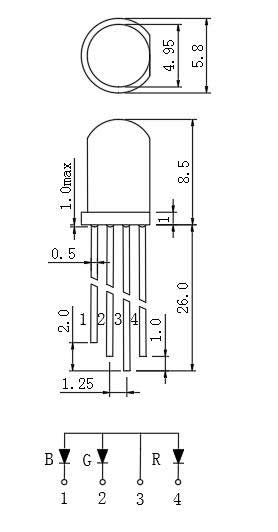

Pinout Reference:

• Pin 1: Blue (B)
• Pin 2: Green (G)
• Pin 3: Common Anode (+)
• Pin 4: Red (R)
