3-Up Cree XT-E Royal Blue (450-465nm) 20mm LED Star Board

The PULSAR XT-E Royal Blue LED Light Engine combines three Cree high-power XT-E Royal Blue emitters on an LEDdynamics thermally optimized 20mm aluminum MCPCB to deliver high radiant-output density from a compact platform. With a 450–465nm wavelength range, PULSAR XT-E Royal Blue is well suited to applications requiring high-intensity blue output, precise wavelength selection and substantial spectral power. Optional HexaTherm™ technology enhances thermal performance, while the Optics Ready™ platform supports multiple beam distributions for straightforward optical integration.

Recommended Applications: Horticulture • Scientific • Machine Vision • Inspection • Entertainment

Description

For remote-phosphor applications the Royal-Blue Cree XLamp® XT-E LED offers the industry's tightest wavelength bins and leading brightness. Silicon Carbide SC3 technology makes this 450nm XT-E LED the most efficient and smallest royal-blue LED that Cree has available. The XT-E LED die is inside the popular XP-E packaging, allowing fast and easy replacement of the XP-E.

LED Star MCPCB

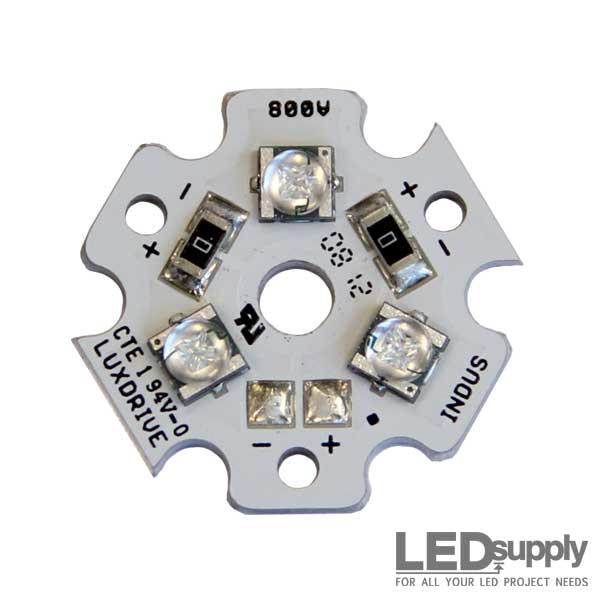

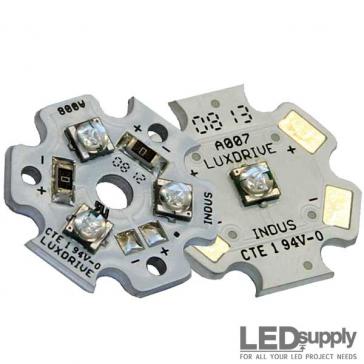

We offer two metal core printed circuit board (MCPCB) versions: a single (1-Up: 1 LED) and triple (3-Up: 3 LEDs). The 1-Up is a single XT-E LED reflow soldered to a 20mm hexagonal (LED Star) MCPCB. The MCPCB has four large solder pads for easy solder connections. The 3-Up is three (3) XT-E LEDs reflow soldered in-series to a 20mm hexagonal MCPCB. The 3-Up MCPCB has two solder pads for connections, mounting holes for secondary Carclo optics and a center hole for wires or securing the LED star to a heat sink.

Colors

The XT-E LED is offered here in Royal-Blue (450nm).

Secondary Optics

Both versions of the XT-E (1-Up & 3-Up) are designed to work with secondary optics from Carclo; Carclo is a leader in molded poly-carbonate lens systems. The 1-Up secondary lens system combines a plastic holder and lens that sits on top of the 1-Up MCPCB, while the 3-Up optic is a one-piece system with three legs that sit down into corresponding holes on the 3-Up MCPCB. These secondary optics focus light into narrow, medium, wide and elliptical patterns. More information is available on optics that mate with the XT-E LED on this page under the Accessories tab above.

Product Images & Part Numbers

By selecting the LED options above the main product image and part number will change. For referencing specific specifications there are tables and downloadable documentation below.

Technical Documenataion

Full Documentation

Cree XT-E Documentation
