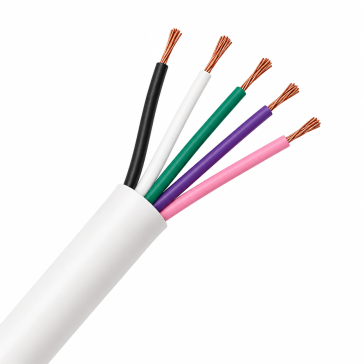

White 5-Conductor AC Fixture Power & Control (0-10V Dimming) Cable

More images

White 5-Conductor AC Fixture Power & Control (0-10V Dimming) Cable

Regular Price: $24.99

Sale Price: $22.95

You Save: $2.04

PART #: FPC-WH-5C-xx

VOLUME DISCOUNTS

PCS

% OFF

10 - 49

50 - 99

7.5%

100 - 249

15%

250 - 499

20%

*Shipping Information

First Class > $49.99

FREE

First Class

$5.99

Ground

$11.99

2-Day

$15.99

Express

CALC

Purchase

2500 PCS IN-STOCK

QTY

ORDER BY 3PM EST FOR
SAME DAY SHIPPING

Power Cord for Architectural-Grade Lighting

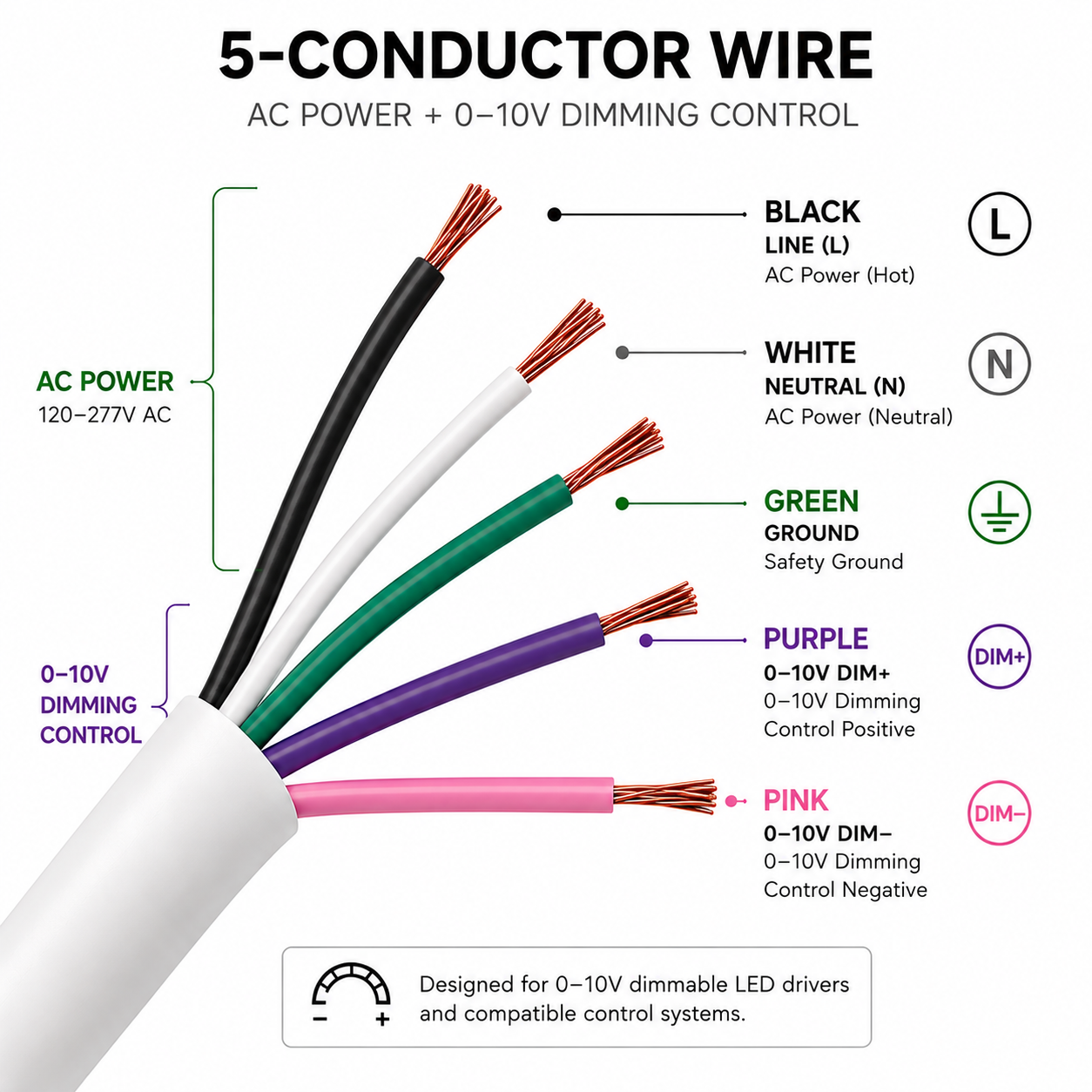

AC Power + 0-10V Controls (Black, White, Green, Purple, Pink)
Available in Various Lengths
Used by Leading LED Lighting Brands

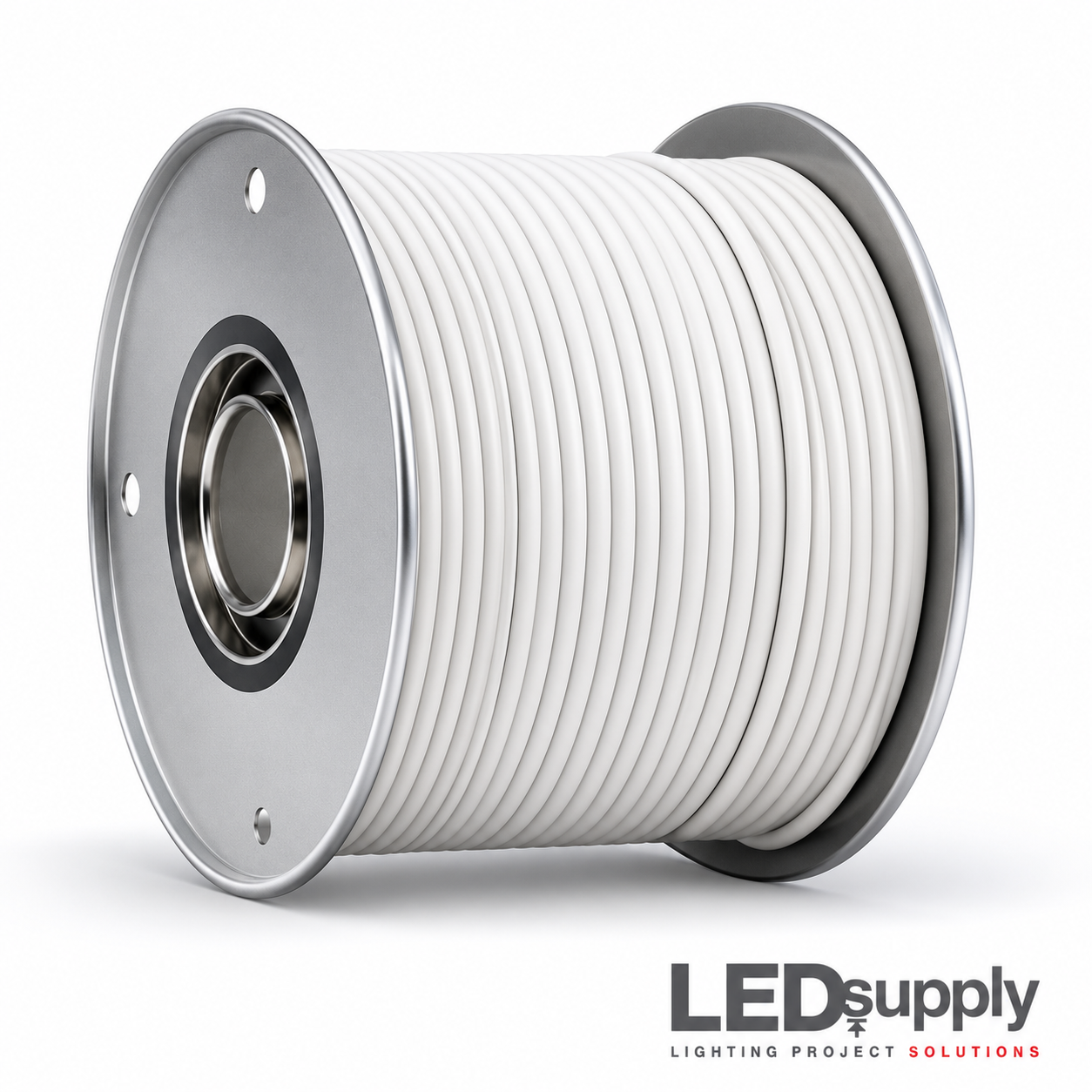

Supplied 10FT (Min) Length to 500FT Reel

THIS OPTION IS TEMPORARILY UNAVAILABLE

Product Details

Designed specifically for professional lighting applications, LEDSupply Multi-Conductor Fixture Power & Control Cable provides a clean, flexible solution for carrying power and control signals within a single white jacket. Available in 3, 4, 5, 7 and hybrid 8-conductor configurations, the range supports applications from standard AC-powered luminaires to 0–10V dimming and advanced multi-function lighting controls. Stranded copper conductors provide the flexibility required for pendant, linear and architectural fixtures, while purpose-selected conductor colors simplify wiring, installation and service. Whether you are building a single custom luminaire or specifying cable for a production lighting project, the range provides a professional, lighting-focused alternative to generic electrical cable.

Technical Specifications

Specification	Details
Product Type	Multi-Conductor Fixture Power & Control Cable
Applications	LED Luminaires, Pendant Lighting, Linear Lighting, Architectural Lighting, Power & Control Wiring

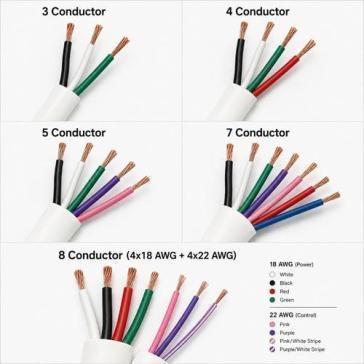

Available Configurations	3, 4, 5, 7 & 8 Conductors
Conductor Material	Stranded Copper
Standard Conductor Size	18 AWG
Hybrid 8-Conductor Configuration	4 × 18 AWG + 4 × 22 AWG
Outer Jacket Color	White
Jacket Construction	Flexible Insulated Outer Jacket
3-Conductor Colors	Black / White / Green
4-Conductor Colors	Black / White / Green / Red
5-Conductor Colors	Black / White / Green / Violet / Pink
7-Conductor Colors	See Configuration / Wiring Diagram
8-Conductor – 18 AWG	White / Black / Red / Green
8-Conductor – 22 AWG	Pink / Purple / Pink-White Stripe / Purple-White Stripe
0–10V Dimming	Supported on Applicable Multi-Conductor Configurations
Installation Type	Indoor Fixture & Lighting System Wiring
Available Lengths	Cut Lengths & Bulk/Reel Quantities
RoHS	Confirm per Specific Cable Configuration
Voltage Rating	Confirm per Specific Cable Configuration
Temperature Rating	Confirm per Specific Cable Configuration

Application Note: Multi-conductor configurations allow power and lighting control wiring to be combined within a single clean white cable, reducing the number of separate cable runs required for pendant, linear and architectural lighting installations.
