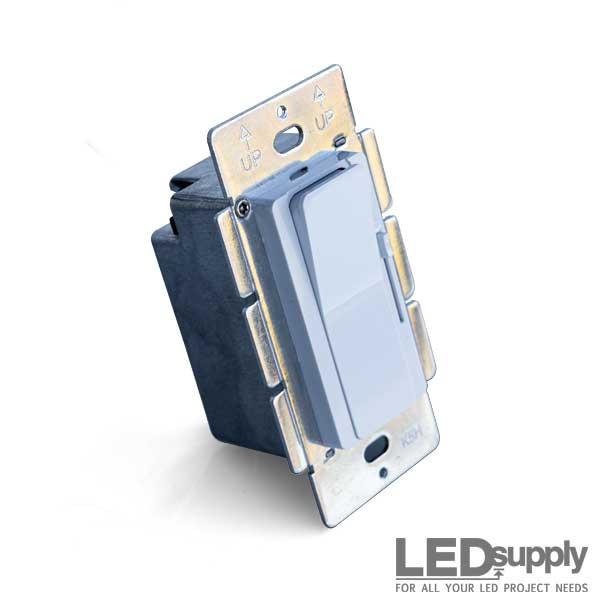

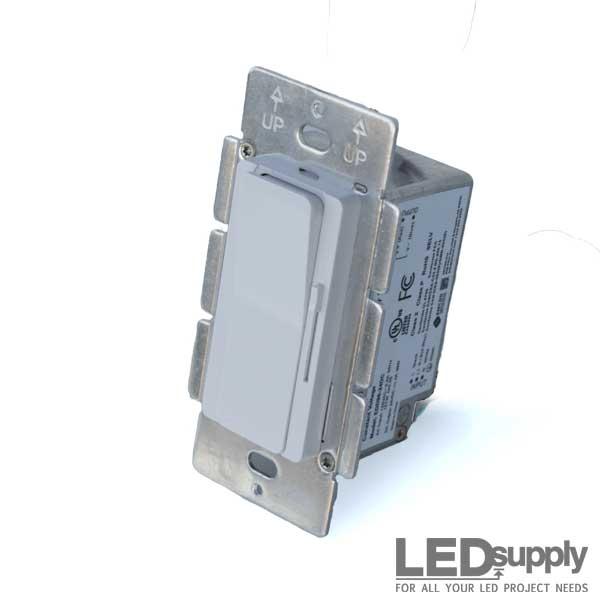

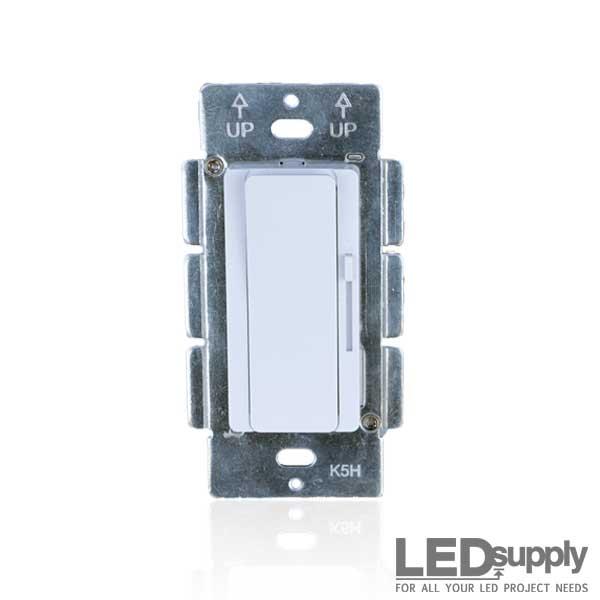

2-in-1 Power Supply & Wall Mount Dimmer - EDD Series by EMCOD

More images

Regular Price: $132.00
Sale Price: $119.99
You Save: $12.01
PART #: EL-DIMxx-xx
VOLUME DISCOUNTS
PCS
% OFF
5 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class > $39.99
FREE
First Class
$3.99
Ground
$11.99
2-Day
$13.99
Express
CALC

Purchase

0 PCS IN-STOCK

ORDER BY 3PM EST FOR
SAME DAY SHIPPING
  • Power + Dimmer in One
  • 12V or 24V Options
  • 60W, 96W, or 160W Models

Product Details

2-in-1 Design: Constant Voltage Driver with Integrated Dimmer INPUT VOLTAGE: 120VAC (60Hz)
OUTPUT VOLTAGE: 12VDC or 24VDC OUTPUT POWER: 60W, 96W, or 160W
CONTROL: Paddle Switch with Slide Dimmer (No Face Plate) DIMMING RANGE: 0.3% – 100%
LOAD TYPE: Constant Voltage LED Loads RATING: Class 2, UL Recognized, Dry Location
WIRING: Line/Neutral In, Low-Voltage DC Out MOUNTING: Standard Single-Gang Wall Box
WARRANTY: 5 Years HOUSING: Metal Sink with Integrated Mounting Bracket


Description

The EMCOD EDD Series is an innovative all-in-one solution that combines a constant voltage LED driver with an integrated wall-mounted dimmer switch. Designed to simplify LED installations, this 2-in-1 device eliminates the need for a separate power supply and dimming system, reducing wiring complexity while delivering professional-grade performance. Ideal for both residential and commercial settings, it fits neatly into a standard single-gang wall box and pairs with a decorator-style faceplate (not included).

Power Options & Dimming Performance

Available in 60W, 96W, and 160W power levels, the EDD Series supports either 12VDC or 24VDC outputs—making it compatible with a wide range of constant voltage LED strips, bars, and modules. Dimming is controlled directly on the unit via a paddle-style on/off switch and side-mounted vertical slider. Smooth dimming performance down to 0.3% makes it a great fit for ambient, accent, and architectural lighting applications.

For tunable white LED applications, an optional version of the EDD Series includes dual vertical sliders that allow manual control of both warm-white and cool-white channels. This setup gives users the ability to mix white light on-site and adjust the correlated color temperature (CCT) manually for dynamic lighting environments.

Certifications, Use Cases & Quality

With UL Recognized Class 2 certification and EMCOD’s reputation for quality, the EDD Series provides a clean, code-compliant, and efficient approach to LED lighting control. Perfect for new construction or retrofit projects where space, simplicity, and professional aesthetics matter.



Technical Documentation

FORM FACTOR Wall-Mount, Single-Gang Box Compatible
INPUT VOLTAGE 120VAC, 60Hz
OUTPUT VOLTAGE 12VDC or 24VDC (Model Dependent)
OUTPUT POWER 60W, 96W, or 160W
OUTPUT TYPE Constant Voltage (CV) Power Supply
DIMMING RANGE 0.3% – 100%
CONTROL METHOD Main On/Off Paddle Switch with Side Slide Dimmer
EFFICIENCY Up to 90%
CERTIFICATIONS UL Recognized (Class 2), CE
OPERATING TEMPERATURE -40°C to +60°C
PROTECTIONS Short Circuit, Overload, Thermal
FACEPLATE Not Included (Standard Decorator Style)
WARRANTY 5 Years


Full Documentation
