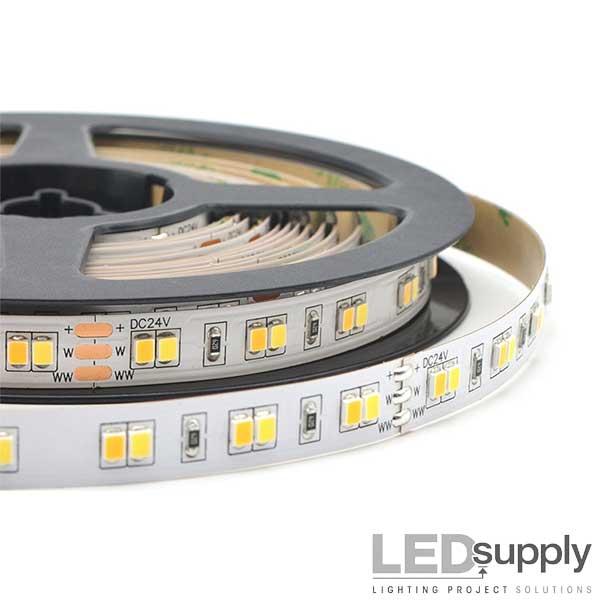

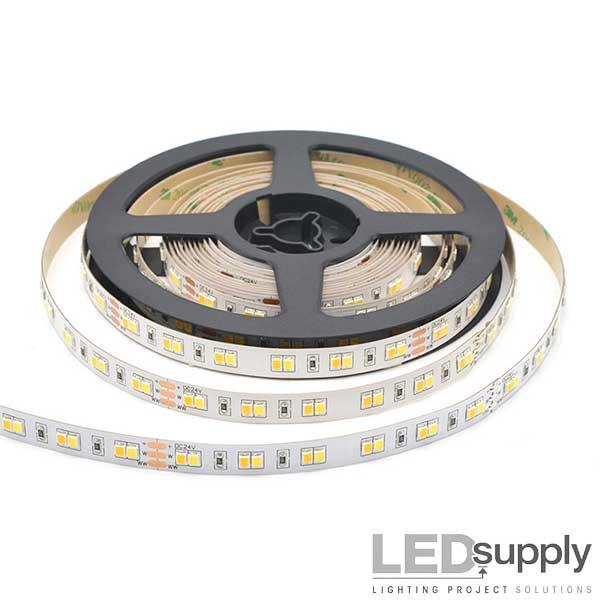

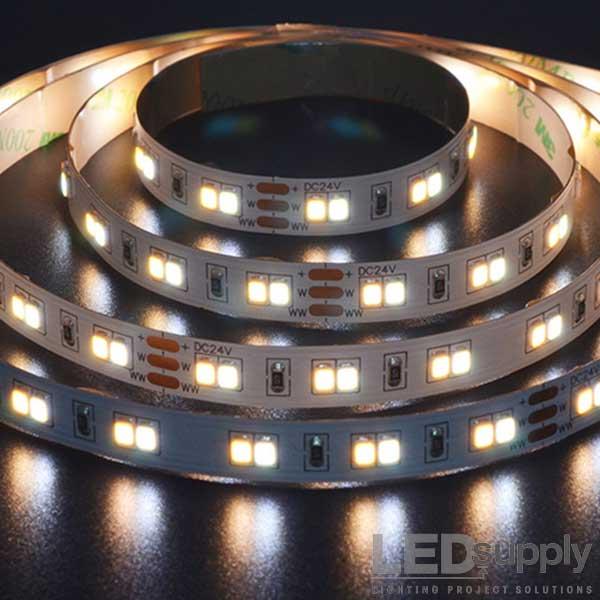

This 24V ultra-high-density strip combines premium color rendering with an adjustable 2200K–5000K white range. Its 120 LEDs/m construction and precise 1-inch cut interval support refined cabinetry, millwork, displays, hospitality spaces and architectural details.
| Series: Architectural Series | Light Type / Color: Tunable White — 2200K to 5000K |
| LED Density: 120 LEDs/m | Input Voltage: 24V DC |
| Light Output: Pending final specification | Power Consumption: Pending final specification |
| CRI: 95+ | IP Rating: IP20 — Indoor / Dry Location |
| White Range: 2200K Candlelight White to 5000K Cool White | Cutting Interval: Every 1 in. |
| PCB Width: 10mm | Maximum Continuous Run: 16.4 ft (5m) |
| Available Length: 16.4 ft (5m) roll | Mounting: 3M adhesive backing or mounting clips |
| LED Type: 2835 SMD | Control: Tunable-white controller required |
| Connection: Wire leads, soldering or compatible connectors | Dimming: PWM dimmable through compatible controller |
A compatible controller blends the strip’s warm- and cool-white channels, allowing the installed light to be adjusted for atmosphere, finishes, tasks and changing use of the space.
| Part Number | White Range | LED Density | CRI | Power |
|---|---|---|---|---|
| A120-IP2024V10M-95TW | 2200K–5000K | 120 LEDs/m | 95+ | Pending final specification |
The value of this strip is the combination of adjustable white light, high color fidelity, tight LED spacing and precise field sizing.
The 95+ CRI rating supports more faithful rendering of wood, stone, fabrics, artwork, finishes and merchandise than lower-CRI sources. For critical specifications, request the available test conditions and R9 or TM-30 data rather than inferring them from CRI alone.
With 120 LEDs/m, the strip produces closer LED spacing than standard-density tape. Pair it with the correct channel, diffuser and setback to achieve a smoother finished line of light.
The strip can be cut every 1 inch at the marked copper pads, supporting accurate finished lengths in cabinetry, shelves, displays, coves and custom millwork.

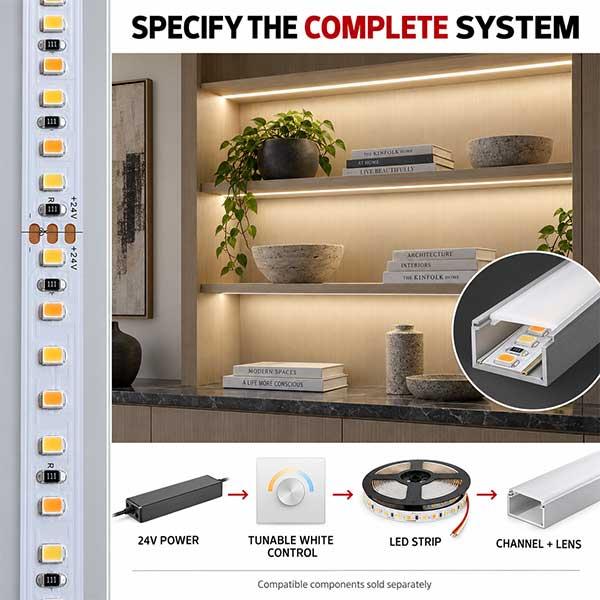

Plan all five parts together so voltage, control, current capacity, physical fit and connection methods are compatible before installation begins.
Determine total footage, finished sections, cut points and the start and end of every run.
You are viewing this componentUse a constant-voltage supply sized from the confirmed W/ft, total footage and required headroom.
Shop 24V Power Supplies →Use compatible two-channel control to blend warm and cool white while adjusting brightness.
View Compatible Controller →Plan wire leads, solder joints or compatible 10mm connectors. Verify conductor count and pad layout.
Shop Strip Connectors →Match the 10mm PCB width and select the mounting style, lens and diffusion needed for the finish.
Shop LED Channels →The final W/ft rating is still pending. Do not size the driver from a similar-looking strip or from wattage used by another product family.
IP20 construction is not sealed against water, condensation or washdown. Do not specify it for bathrooms, exterior locations, wet bars, saunas or other moisture-prone environments without an appropriately rated protected system. Select a waterproof or high-temperature product designed for the actual exposure.
We can review your project or BOM, confirm component compatibility, prepare a custom quote, cut strip to length, solder leads, create custom wiring and provide assembly when needed.
Choose continuous, dot-free output with a broader 2700K–6500K range for dry indoor architectural installations.
View Tunable White COB →Choose high-temperature IP68 construction and a 2700K–6500K range for demanding sauna environments.
View Sauna-Rated Strip →Choose one dedicated Kelvin value when premium color rendering is required but adjustable white is not.
View 95+ CRI Fixed White →Review color-temperature control, installation details and complete-system requirements before purchasing or installing the components.
The strip contains warm- and cool-white channels. A compatible two-channel controller blends those channels to adjust the output continuously between 2200K and 5000K while also controlling brightness.
Yes. A standard single-channel dimmer cannot independently blend the warm and cool channels. Use a compatible 24V tunable-white controller sized for the connected load.
At 2200K the strip can produce an extra-warm, candlelight-like appearance that is warmer than the 2700K lower endpoint common on many tunable-white products. It is useful for hospitality, restaurants, wood-rich interiors and evening ambience.
CRI describes how faithfully a light source renders a standard set of colors compared with a reference source. A 95+ rating indicates high general color fidelity. CRI does not replace R9 or TM-30 data when those metrics are required by the specification.
Higher density reduces the spacing between visible points, but the finished appearance also depends on the channel depth, diffuser transmission, viewing angle and distance from the illuminated surface. Choose COB strip when a continuous line is the primary requirement.
Yes. It can be cut every 1 inch at the designated copper cut points. Plan exact finished lengths before cutting, and confirm the connector or soldering method for each section.
No. It is rated IP20 for dry indoor use. Select a suitably rated waterproof or high-temperature strip for locations exposed to moisture, condensation or washdown.
Yes. LEDSupply can provide cut-to-length strip, soldered leads, custom wiring, project or BOM review, custom quotes and assembly when needed. Send the project details to sales@ledsupply.com.
The current page does not yet have a completed datasheet URL. Add the confirmed document here before final publication.
Installation conditions vary. Confirm component ratings, project requirements and applicable electrical codes before installation.
