90+ CRI White Indoor Ultra-High Density LED Strip Light — 24V, 5W/ft, IP20

More images

90+ CRI White Indoor Ultra-High Density LED Strip Light — 24V, 5W/ft, IP20

Regular Price: $33.49

Sale Price: $27.99

You Save: $5.50

Part No. A120-IP2024V10-Wxx-xx

Manufacturer: LEDsupply

HIGHLIGHTS

90+ CRI Lumileds LEDs for Natural Color Rendering
120 LEDs/m — Up to 450 Lumens per Foot
Five Fixed White Options: 2200K–4000K
24V, 10mm Wide — PWM Dimmable
3–12 ft Sections & 5m Roll — Indoor/Dry Use

DOWNLOADS

A120-IP2024V10-Wxx-xx

CONFIGURE & BUY

Purchase

PN: A120-IP2024V10-Wxx-xx

THIS OPTION IS TEMPORARILY UNAVAILABLE

QTY

0 PCS IN-STOCK

Ordering for a larger project?
Ask about volume pricing

VOLUME DISCOUNTS
QTY	10 - 49	50 - 99	100 - 249	250 - 499
% OFF	2.5%	5%	7.5%	10%

Order by 3pm ET for
same-day shipping.

Free shipping available, click here for details.

Complete Your Setup

Compatible accessories for your product. Each item appears separately in your cart.

2-in-1 Driver + Dimmer

EMCOD EDD 2-in-1 60W Power Supply & Wall Mount Dimmer

$124.99 ea.

Match Quantity

LED Strip Channels

Slim 16mm Surface Mount LED Channel Kit for 10mm/0.5" LED Strip - 1M Length inc. Optical Lens & End Caps

$18.79 ea.

Add LED Strip Channels

QTY

LED Strip Connectors

Beetle™ 2-Pin (White) "Gapless" Connector for 10mm IP20 Strip - Low-Profile Design - Strip-to-Wire

$3.29 ea.

Add LED Strip Connectors

QTY

DC Wire & Cable

DC Multi Conductor 20-22 AWG Wire

$3.27 ea.

Add DC Wire & Cable

QTY

Product Details

Architectural Series / Premium white

High-quality white light. A precise fit for your space.

Built with Lumileds 2835 LEDs, this Architectural Series strip combines 90+ CRI, 120 LEDs per meter and output up to 450 lumens per foot. Choose it for cabinetry, displays and interior lighting where color quality, closely spaced LEDs and flexible installation matter.

24V DC • Five white color temperatures • Indoor / dry locations

90+ CRIHigh color rendering

120 LEDs/mClosely spaced light sources

450 lm/ftUp to; output depends on selection

5W/ftPower for system planning

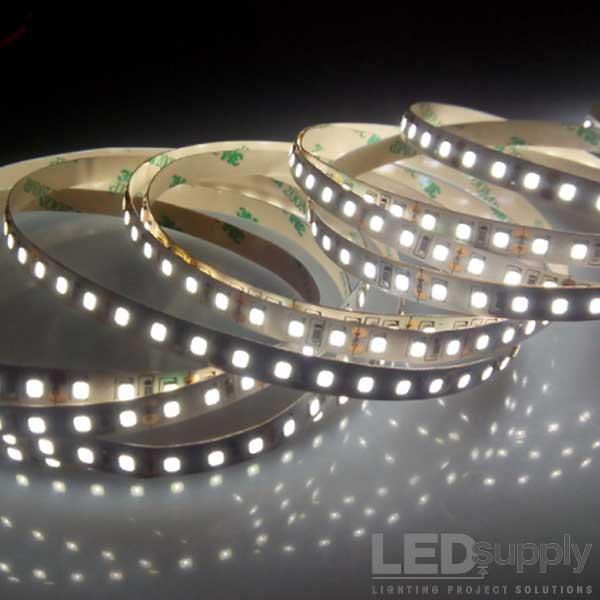

Illuminated Architectural Series white LED strip showing closely spaced LEDs — Architectural Series white strip. Add compatible 24V power, dimming and mounting components for your installation.

Designed around the finished space

Give every finish the attention it deserves.

Cabinetry & millwork. Reveal wood tones, stone surfaces, and carefully chosen finishes with high-quality white light.

Retail & display. Bring clear, consistent illumination to shelves, merchandise, and feature displays.

Residential & hospitality. Build layered lighting for kitchens, coves, built-ins, and welcoming interior spaces.

Choose the color temperature for the atmosphere, then add dimming to adjust brightness throughout the day.

What makes this strip a premium choice?

Lumileds LEDs, 90+ CRI

Lumileds 2835 LEDs deliver 90+ CRI white light for wood, textiles, merchandise and finishes where color rendering matters.

A more refined line of light

120 LEDs per meter reduces the space between light sources. A suitable channel and diffuser help soften the appearance of individual LEDs.

Brightness with control

Up to 450 lm/ft provides output for task and display lighting. Compatible PWM dimming lets you lower the light level for accent lighting.

Choose your white

Choose the white tone for your project.

Match the light to the materials and mood of your space. Each strip has a fixed white color temperature.

2200K

Extra-warm white

An intimate, amber-toned white for restaurants, lounges, and warm wood interiors.

2700K

Warm white

A familiar warm white for living spaces, decorative shelves, and hospitality.

3000K

Warm white

A versatile warm white for kitchens, cabinetry, and residential task lighting.

3500K

Balanced white

A balance of warmth and clarity for retail, workspaces, and mixed-use interiors.

4000K

Neutral white

A crisp neutral white for displays, detailed tasks, and contemporary interiors.

Swatches are a relative visual guide. Screens and surrounding finishes affect perceived color. For a close match to existing lighting or materials, evaluate a sample in the actual space.

Product specifications

The details for your project.

Series	Architectural Series
Color rendering	90+ CRI
Input voltage	24V DC, constant voltage
LED density / type	120 LEDs/m / Lumileds 2835 SMD
Power	Approx. 5W/ft
Light output	Up to 450 lm/ft
Color temperatures	2200K, 2700K, 3000K, 3500K & 4000K
PCB width	10mm
Environment	IP20 / indoor, dry locations
Dimming	Compatible PWM dimming
Power connection	6-inch wire leads
Mounting	3M adhesive backing; compatible channel recommended
Available lengths	3 ft, 6 ft, 9 ft, 12 ft & 5m roll (approx. 16.4 ft)
Cutting	Every 2 inches, at marked copper cut pads

Need a higher color-rendering specification? Compare the 95+ CRI White Indoor Ultra-High Density strip when your project calls for a higher CRI rating.

Build the complete solution

Choose the parts that make the installation work.

Plan power, dimming, and mounting together. Select 24V models and check load ratings for every component.

MEAN WELL LPV constant-voltage power supply

01 / Power

Start with 24V power

For a straightforward installation, choose a 24V constant-voltage supply. MEAN WELL LPV is an option for shorter loads; higher-capacity supplies are available for larger systems.

View MEAN WELL LPV →Shop constant-voltage power →

02 / Control

Choose how you dim

For local control, use a compatible PWM dimmer between the supply and strip. For a wall dimmer, pair it with a compatible 24V phase-dimmable driver.

View rotary PWM dimmer →View Magnitude dimmable drivers →Explore white-light controls →

Aluminum surface-mount LED channel with diffuser

03 / Finish

Add channel & diffusion

A channel provides a clean mounting surface, helps dissipate heat, and adds a finished appearance. Select a profile that accepts the 10mm strip and a lens suited to your application.

View surface-mount channel →View recessed channel →Explore all LED channels →

Choose the dimming method first. A standard non-dimmable power supply can feed a compatible DC PWM dimmer. An AC wall dimmer requires a driver specifically rated for that dimmer type. Check the driver’s compatibility list and the controller’s 24V load capacity.

Power planning

Size your supply for the whole installation.

Multiply total connected strip length by 5W per foot. As a planning starting point, allow 25% extra supply capacity, then check the selected driver’s load limits and installation requirements.

For multiple branches, add the load of every strip section. Plan feed locations and wire size for the run length and current.

Find your power supply →

Total strip length	Strip load	Capacity with 25% extra
3 ft	~15W	~18.75W
6 ft	~30W	~37.5W
9 ft	~45W	~56.25W
12 ft	~60W	~75W
5m roll (~16.4 ft)	~82W	~102.5W

Planning values, not specific driver recommendations. Round up to a suitable available rating. Total connected length does not establish the allowable length of a single continuous run.

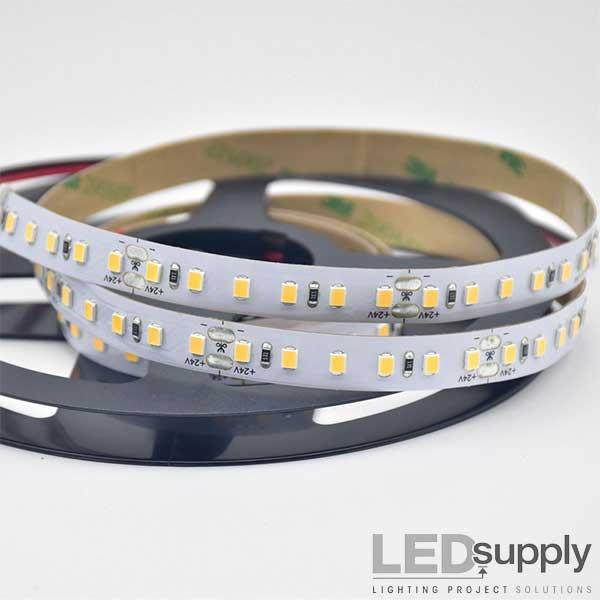

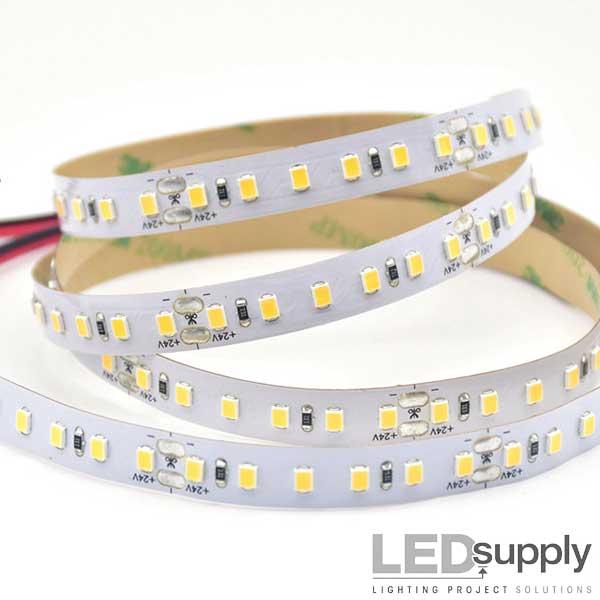

Architectural Series white LED strip on a reel showing LEDs and marked copper cut pads — 10mm flexible PCB with marked copper cut pads. Strip sections include 6-inch wire leads.

Connections & installation

A clean fit. A thoughtful finish.

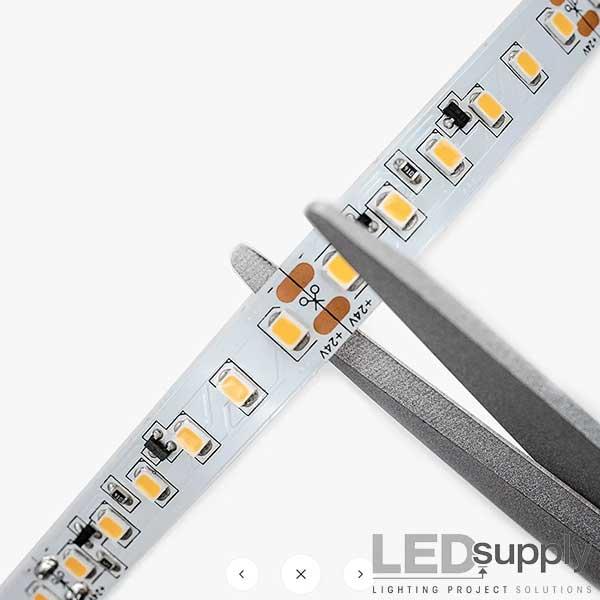

Measure before cutting. Disconnect power and cut every 2 inches, only at the marked copper pads.
Use the right connector. Select connectors intended for 10mm, 2-pin IP20 single-color strip. Confirm pad alignment, current rating and clearance inside your chosen channel before ordering.
Plan the wiring. Use two-conductor DC wire sized for load and distance. Match positive and negative polarity at each connection.
Finish with a channel. Fit the strip to a clean mounting surface; route wires without twisting the PCB or making sharp folds.

Shop Beetle 2-pin strip-to-wire connectors →Shop DC wire & cable →Find channel accessories →

Common questions

Plan with confidence.

What does 90+ CRI mean for my project?

CRI describes how accurately a light source renders colors compared with a reference source. A 90+ rating is useful when the appearance of wood, textiles, merchandise, and finishes matters. Color temperature is a separate choice that determines how warm or neutral the white light looks.

Will I see individual LED dots?

The 120 LEDs/m layout brings the light sources close together. The final appearance also depends on channel depth, diffuser, viewing distance, and nearby reflective surfaces. Evaluate your chosen strip-and-channel combination if a continuous-looking line is essential.

Can I change the color temperature after installation?

No. Choose one of the five fixed-white versions when ordering. Dimming changes brightness, not the selected color temperature.

Can I use this strip outdoors or in a wet area?

This IP20 strip is intended for indoor, dry locations. For locations exposed to water or moisture, choose a strip and connection system rated for that environment.

Are power supplies, controls, and channels included?

They are selected separately so you can match them to your layout and control requirements. The strip includes 6-inch wire leads. Choose compatible 24V power, controls, connections, and mounting components for your project.

LEDSupply project assistance

Let’s build the right lighting system.

Send us your layout, total strip lengths, preferred color temperature, and dimming method. We can help you choose power, controls, connections, and channel options. Planning a larger installation? Ask about volume pricing.

Email Your Project Call (802) 728-6031

Product documentation

Review the technical information alongside your installation plan.

Open Datasheet
