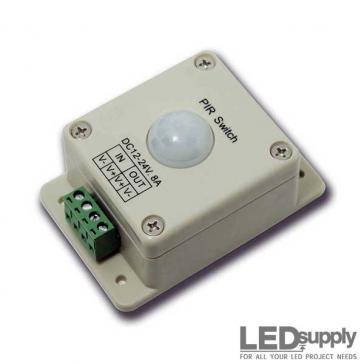

Motion Sensor Switch 12-24V 8A

Motion Sensor Switch 12-24V 8A
Click to enlarge

More images

Sale Price: $7.99
Compared at: $8.79
You Save: $0.80
PART #: SWITCH-PIR
Volume Discounts
PCS% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class
FREE
Priority Mail
$5.99
FedEx Ground
$7.99
UPS Ground
$8.99
FedEx Express
CALC
134PCS IN-STOCK
Add to Cart
ORDER BY 3PM EST FOR
SAME DAY SHIPPING

Product Details


Features

DETECTION:  5-8M (25-ft), 120° INPUT: 12V-24VDC
MAX LOAD: 8A DIMENSIONS: (L)89 X (W)59 X (H)45mm
DELAY TIME: 10-Seconds WEIGHT: 97g
WORKING TEMP.: -20 - 60°C CHANNELS: 1-Channel
WARRANTY: 3-Years STATIC POWER: Less than 1W




Description

PIR motion switchThis motion sensor switch is ideal for low voltage LED lighting applications, where you want to control the light from movement. The PIR sensor is an electronic sensor that measures infrared (IR) light radiating within its 120-degree field of view. It can detect, sense or activate within 5 to 8 meters or up to 25-feet.

How to use:

The unit needs to mounted within the detection range (5 to 8-meters) and be able to view 120-degrees from the sensor. There are four mounting holes for each corner that makes it easy to install. Connection to the PIR switch is made via screw-down terminal blocks for the designated input/output. The input accepts 12V to 24V and up to 8A. Once the sensor stops detecting motion for 10-seconds the switch will turn-off. These switching are often used with LED lighting in applications like closet lighting or areas where you want light to activate by movement.
