Custom 3-Up Luxeon High Power LED

Custom 3-Up Luxeon High Power LED
Click to enlarge
Sale Price: $19.99
Compared at: $21.99
You Save: $2.00
PART #: CUSTOM-3UP-LUXEON
Volume Discounts
PCS% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class
FREE
Priority Mail
$5.99
FedEx Ground
$7.99
UPS Ground
$8.99
FedEx Express
CALC
80PCS IN-STOCK
Add to Cart
ORDER BY 3PM EST FOR
SAME DAY SHIPPING

Product Details

Description

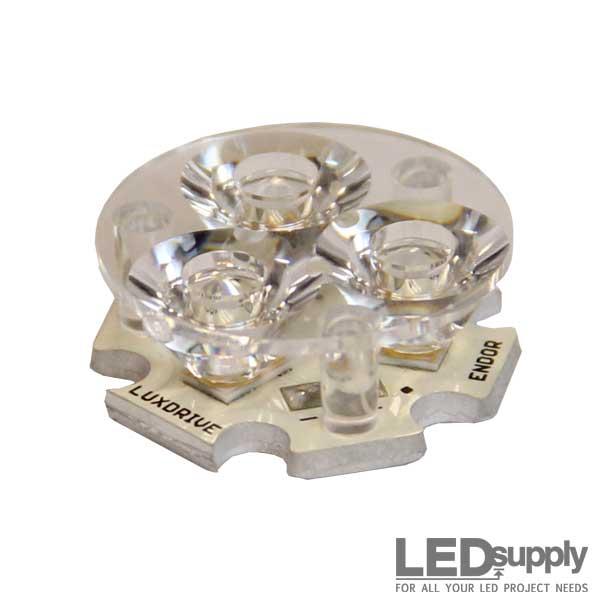

With the Custom Luxeon 3-Up LED, we give our customers a way to build their own LED, with whatever diode and color they'd like at each of the 3 light source points. This is ideal for color mixing or if you are looking for a few different wavelengths coming from one LED star. The 20mm metal core printed circuit board (MCPCB) is LUXdrive's Endor Star board, which is designed to hold Luxeon Rebel emitters. We also give you the choice of building the board in series or in parallel where each of the three LEDs is individually addressable. PLEASE NOTE: Custom LEDs are built in house by our team, please allow 7-10 business days for your order to ship.


Luxeon Rebels

Your custom 3-Up LED star can include any of the emitters we offer, mixed and matched in the order you would like.

Color Options

Cool White, Neutral White, Warm White, Deep Red, Red, Red-Orange, Amber, Green, Cyan, Blue and Royal-Blue.

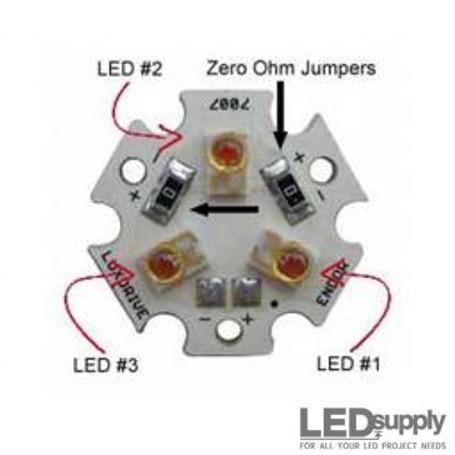

Parallel or Series Circuit

Our 3-Up LED stars typically come in series, meaning all of the LEDs are controlled as one unit. We realize that when you have different colors there usually is a need to address each diode individually (in parallel). This makes it easier to make certain colors and effects; sometimes you will have to dim one of the colors down or make another brighter than the others. This is why we gave you the option to have them all in series, where you will need one driver to power all 3 at the same brightness, or in parallel, where you will have 3 drivers for each diode and will drive them at whatever you wish.
