12V 6W LED Light Engine - Draco

More images

Regular Price: $27.49

Sale Price: $24.99

You Save: $2.50

PART #: 0L013-N7H18xx60

VOLUME DISCOUNTS

PCS

% OFF

10 - 49

50 - 99

7.5%

100 - 249

15%

250 - 499

20%

*Shipping Information

First Class > $39.99

FREE

First Class

$3.99

Ground

$11.99

2-Day

$13.99

Express

CALC

Purchase

0 PCS IN-STOCK

QTY

ORDER BY 3PM EST FOR
SAME DAY SHIPPING

High Output - Over 1000 Lumens
On-board drivers allow for easy 12V input
Designed and Manufactured in the USA

THIS OPTION IS TEMPORARILY UNAVAILABLE

Product Details

NO Driver Required! 12Vdc Constant Voltage Input	Mid-Power LEDs: 30 High-Performance Nichia 757 Diodes
Lumen Output: 1050 Lumens	Wattage: 6.4W
Easy Poke Home Connectors: Push-in wire terminals for 18-24 AWG	Efficacy: 175 Lumens/Watt - Super Efficient!
Board Size: 2.4" x 2.9" Rectangle	Mounting: 4 Mounting holes in corners or Thermal Adhesive or tape
Color Temperatures: 3000K Warm White and 5000K Cool White	Compliance: RoHS

Description

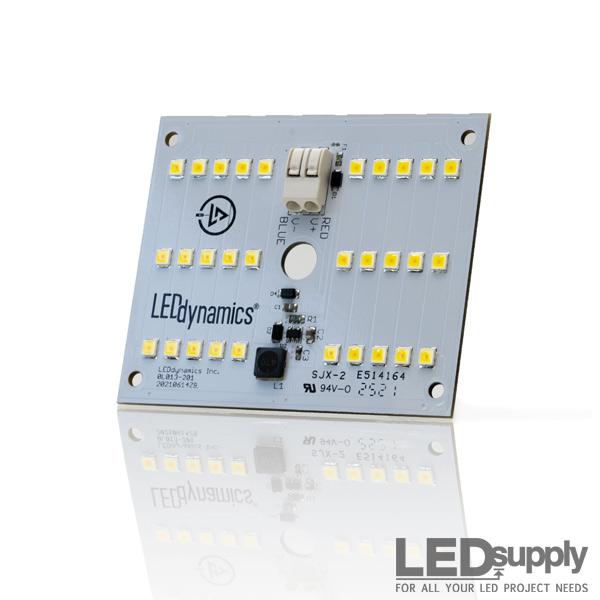

The LUXdrive™ Draco is a high output, constant voltage 12V LED light engine (No CC Driver Required!). The 2.9” x 2.4” PCB features 30 Nichia 757 high-performance mid-power LEDs and onboard drivers. The onboard driver circuitry allows the Draco LED board to accept constant voltage DC input from 10.8-13.2VDC. The Draco can deliver over 1,000 Lumens at 6W power consumption, making it one of our most energy-efficient light engines at 175 Lumens/Watt. If you are looking for a large amount of light in the smallest possible area, this is the LED light for you!

CCT, Colors, and Horticulture Options

The Draco LED board is currently offered in 3000K Warm White and 5000K Cool White. If you require a more specific color temperature, please contact us, as the Nichia 757's are offered in a full-Color temperature (CCT) range from 2700K-6500K. Need color? We have that too: offered in Red, Yellow, Green & Blue.

Need Grow Lights? There are also Horticulture options for small grow applications. The Horticulture Draco utilizes Nichia 757 LEDs with a broad spectrum ideal for growing. Contact for interest in the Horticulture version of the Draco LED.

Powering

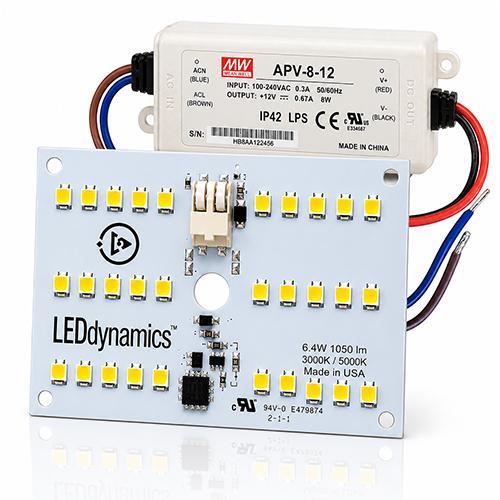

The L013 Draco accepts constant voltage from 10.8-13.2VDC, typically powered at 12V. At 12VDC, the LEDs output 1050 Lumens and run at 6.4 Watts. See below for the specific Electrical Specifications. Easily power the Draco from a USB port with this USB booster cable.

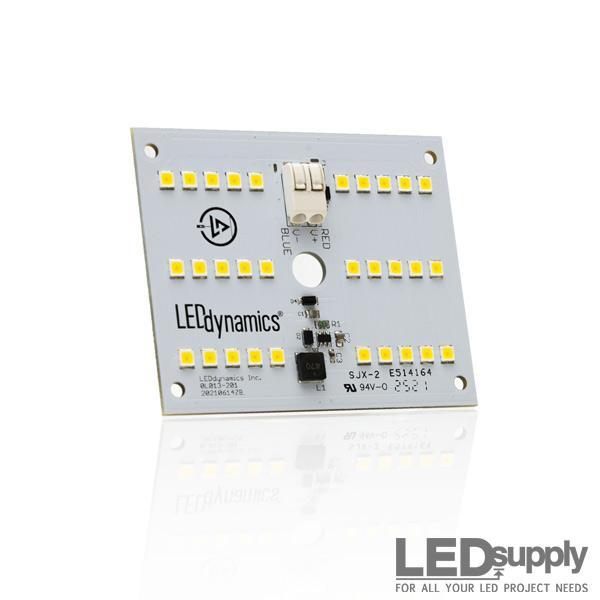

Board Design

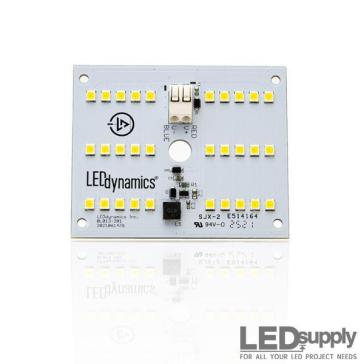

The board design was made with the customer in mind, making this an extremely easy unit to set up. Instead of solder connection points, we had two poke-home connectors on the board for easy power connection. The push-in terminals work best with 18-24AWG and a max conductor diameter of 1.2mm. Below the easy connection points is a .30" hole for discrete wiring.

The Draco PCB has convenient .12" diameter mounting holes in each corner. We recommend 4-40 machine mounting screws and the washers should not exceed .25" in diameter.

Technical Documentation

Color	LEDSupply Part Number	Nichia Part Number
			Forward Voltage (V_f)			Luminous Flux (lm)	Board Dimensions Inches (LxWxH)
			Min.	Typ.	Max.	Luminous Flux (lm)	Board Dimensions Inches (LxWxH)
2700K	Available on request	NFSL757G-27	10.8	12	13.2	1050	2.9 X 2.4 X 0.2
3000K	0L013-N7H183060	NFSL757G-30	10.8	12	13.2	1050	2.9 X 2.4 X 0.2
3000K GROW	Available on request	NFSL757GT-Rsp0a	10.8	12	13.2	1050	2.9 X 2.4 X 0.2
3500K	Available on request	NFSL757D-35	10.8	12	13.2	1050	2.9 X 2.4 X 0.2
4000K	Available on request	NFSL757G-40	10.8	12	13.2	1050	2.9 X 2.4 X 0.2
5000K	0L013-N7H185060	NFSW757G-50	10.8	12	13.2	1125	2.9 X 2.4 X 0.2
5000K GROW	Available on request	NFSW757GT-Rsp0a	10.8	12	13.2	1125	2.9 X 2.4 X 0.2
6500K	Available on request	NFSW757G-65	10.8	12	13.2	1125	2.9 X 2.4 X 0.2
RED	Available on request	NFSW757G-65	10.8	12	13.2	475	2.9 X 2.4 X 0.2
GREEN	Available on request	NFSW757G-65	10.8	12	13.2	975	2.9 X 2.4 X 0.2
BLUE	Available on request	NFSW757G-65	10.8	12	13.2	260	2.9 X 2.4 X 0.2
YELLOW	Available on request	NFSW757G-65	10.8	12	13.2	260	2.9 X 2.4 X 0.2

Environmental & Mechanical Information

Parameter	0L013-N7H183060
Dimming	Non-Dimmable
Connection Type	Poke-Home 18-24AWG, Max conductor dia. 1.2mm
Mounting	4 Mounting Holes or Double Sided Adhesive
Dimensions	2.9 x 2.4 x 0.2 in (73.66 x 60.96 x 5.1 mm)
Weight	0.64oz (18g)
Operating Temperature	-20 to 80°C
Storage Temperature	-40°C - 120°C

Full Documentation

12V Draco LED Data Sheet

Accessories

Draco Accessories
