White Waterproof High Density LED Strip Light — 12V, 5W/ft, IP65

Description

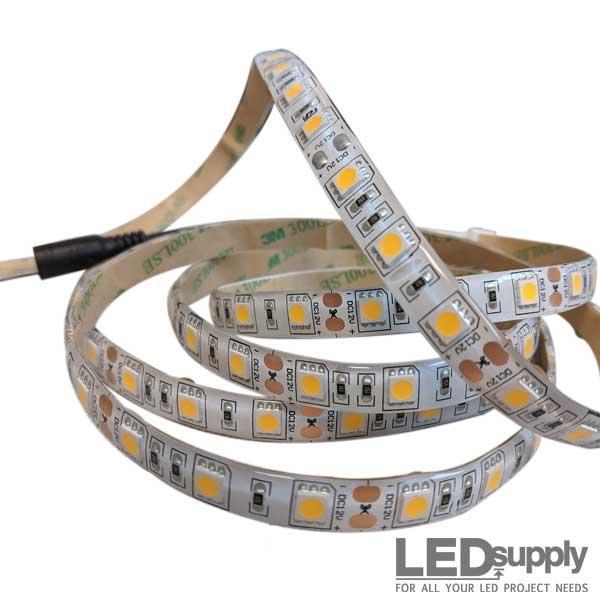

Part of our Professional Series, this high-density 12V white LED strip delivers bright, even light with added IP65 protection for indoor or outdoor applications. The silicone-coated strip includes 3M adhesive backing for easy installation and is available in multiple white color temperatures and custom lengths.

Need an indoor version without the waterproof coating? View the White Indoor High Density LED Strip Light.

Available White Color Temperatures

Waterproof Protection

A protective silicone coating gives the strip its IP65 rating, making it a good choice for outdoor, damp, and exposed lighting applications where an uncoated IP20 strip would not be suitable.

Lengths & Cutting

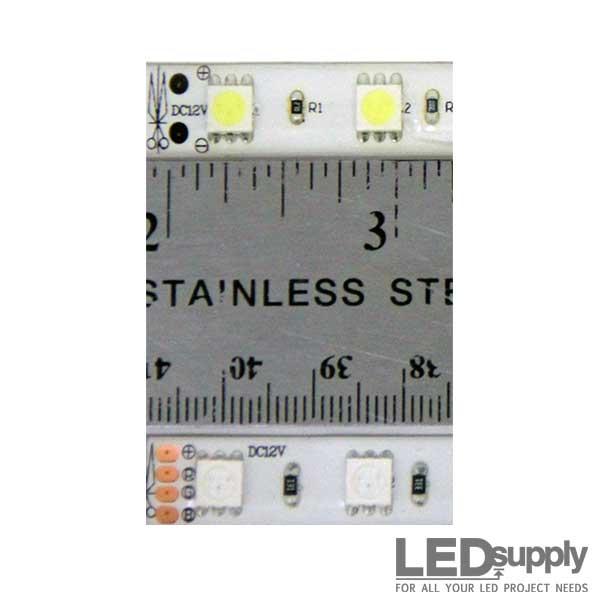

Available in 3 ft, 6 ft, 9 ft, 12 ft, and full 16.4 ft (5m) roll lengths. The strip can also be cut every 2 inches at the marked copper cut points.

Installation & Connections

Strips can be connected by soldering wire between sections or with compatible solderless connectors. The maximum continuous run is 16.4 ft; longer installations should use additional power feeds or be wired in parallel to minimize voltage drop.

Shorter custom lengths include a power connection on one end, while full 16.4 ft rolls include connections on both ends.

Power & Dimming

A 12V DC power supply is required. Use the Power by Length table below to size the power supply for each continuous strip run. The strip is PWM dimmable using a compatible 12V dimmer installed between the power supply and LED strip.

Power by Length

Important: Power draw is not linear over longer strip runs. Voltage drop along the strip reduces the actual wattage as the run gets longer, so a full 16.4 ft (5m) roll draws approximately 40W rather than the amount calculated by multiplying the short-length watts-per-foot value across the entire roll. Use the values above when sizing a power supply for a continuous run.
