Baseboard LED Channel for 10mm Strip - White Anodized with Diffuser Lens & End Caps

A lighting detail built into the trim

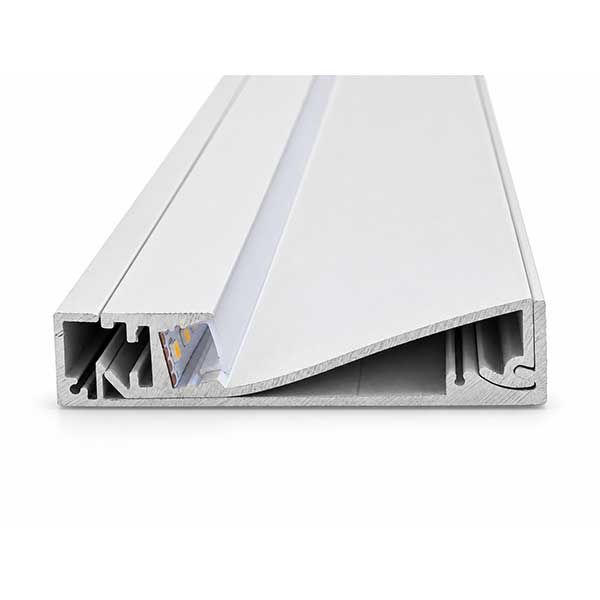

The strip sits within the upper compartment, keeping the light source set back from the main baseboard face. The white finish provides a clean visual transition between the wall and floor.

Test a short section with your intended strip before completing the run. Floor sheen, LED spacing, and viewing angle affect reflections and the visibility of individual LED points.

Check the profile and strip fit

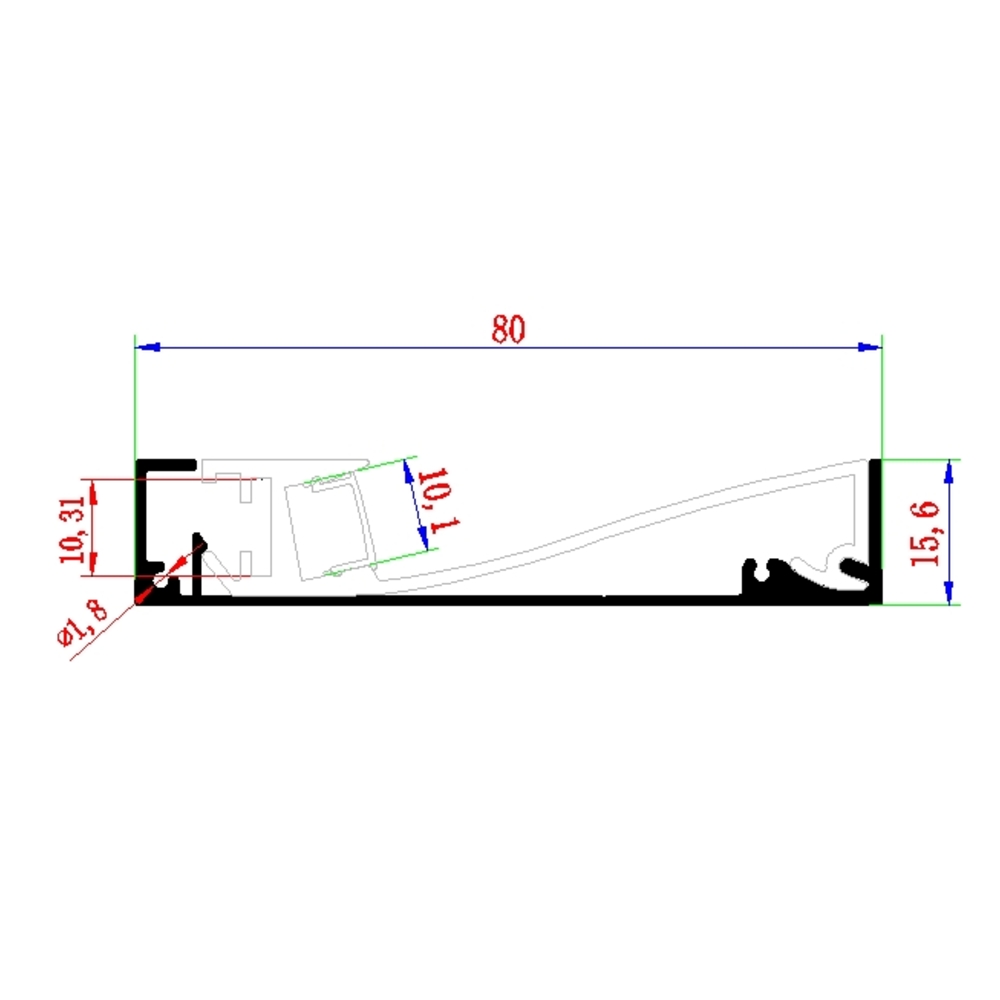

Check the full strip assembly, including coatings, connectors, and wire exits. A 10mm strip width alone does not establish clearance for a wider connector or taller encapsulated strip. The drawing's internal measurements are not alternative strip-width ratings.

Plan the installation before fitting the trim

1. Plan channel runs, corners, exposed ends, and transitions at doorways. Check how the profile meets the finished floor and adjacent trim.
2. Choose the strip and plan cable routes before fixing the channel. Keep the power supply accessible for service.
3. Screw the channel directly to the wall. Check that the supplied screws suit the wall construction and use appropriate anchors where required.
4. Test the assembled lighting before completing end treatments and final finishes.

Finish exposed ends and plan the power feed

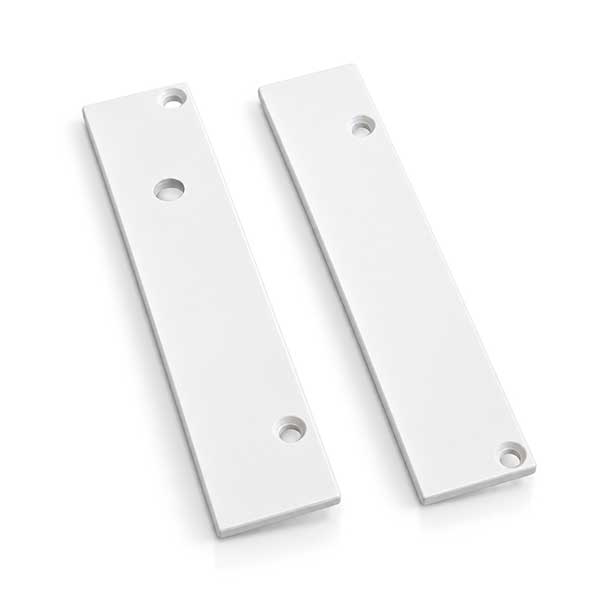

The channel includes a diffuser, end caps, and screws. The end caps finish exposed ends, and the pictured cable-entry version provides a route for wiring.

Complete the lighting system with a compatible LED strip, a matched power supply, wiring, and any required dimmer or controller. Size the power supply and wiring for the selected strip and total run.
