1 Inch LED Strip Channel

1 inch Wide LED Strip Channel
Click to enlarge

More images

Sale Price: $9.99
Compared at: $10.99
You Save: $1.00
PART #: LO-002x
Volume Discounts
PCS% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class
FREE
Priority Mail
$5.99
FedEx Ground
$7.99
UPS Ground
$8.99
FedEx Express
CALC
74PCS IN-STOCK
Add to Cart
ORDER BY 3PM EST FOR
SAME DAY SHIPPING

Product Details


Features

CHANNEL STYLE: Square or Beveled Edge MATERIAL: Anodized Alumium resists corrosion and wear
SIZE: 1" (W) x 39.5" (L) (specific measurements below) LENS: Frosted polycarbonate protective lens
APPLICATIONS: Works with the DUO strip for under cabinet and display case lighting INCLUDES: (1) Channel, (1) Lens, (2) end caps, (2) Mounting Clips




Description

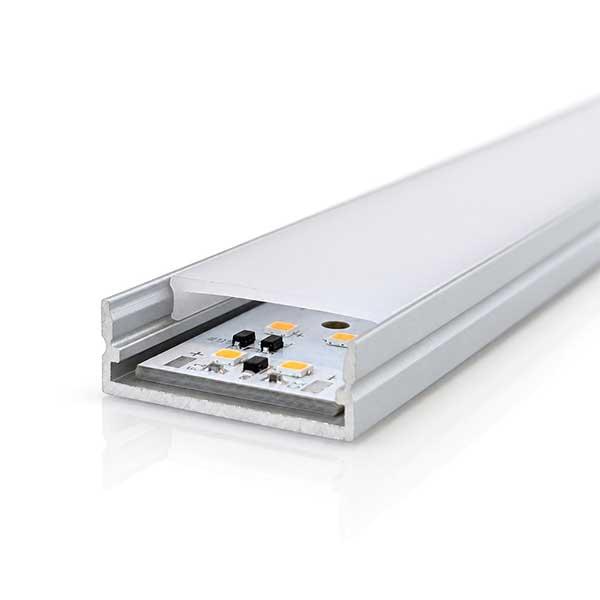

This 1” wide aluminum LED strip channel will really improve the style of your LED strip lighting applications. The track can work as recessed or surface mount channel to provide a clean, finished look. The included lens is a frosted polycarbonate material that spreads the light output as well as protects the actual LED strips.LED strip Channel with DUO strip



The channel works great with the LuxDrive DUO strip or any other pcb that has a width less than or equal to 1-inch. They are commonly used in recessed lighting, under-cabinet lighting, handrails, shelves and display cases.

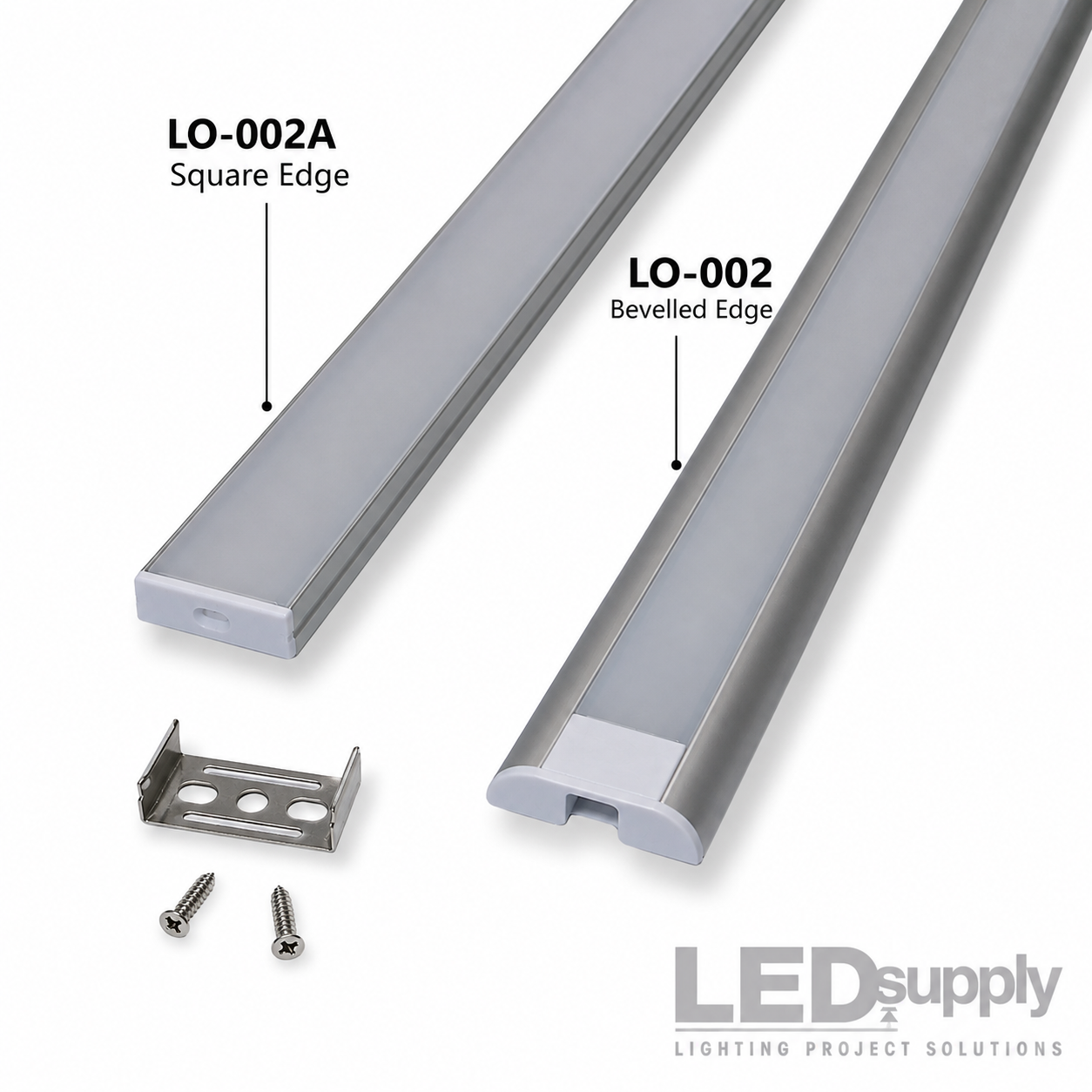

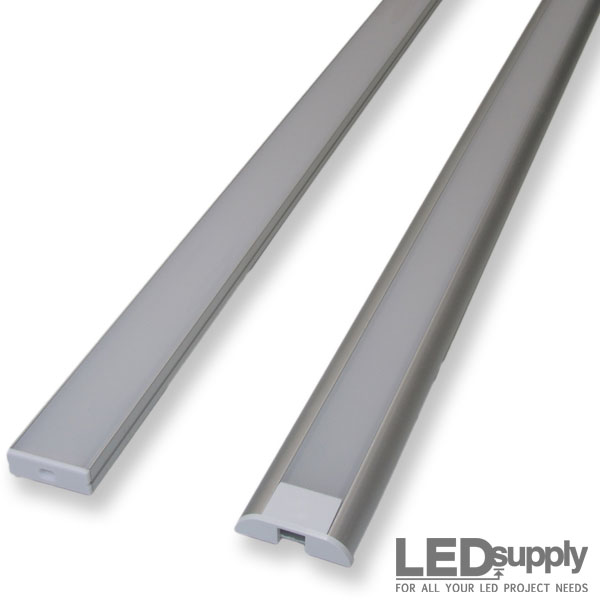

Square or Bevel Style

This strip channel is offered in two different extrusion styles/shapes. The specific dimensions can be seen at the bottom of the page.

  • Square Shape: Straight edges featuring a deeper channel
  • Bevelled Edge: Shallow channel with bevelled sides.



Lens

Each channel piece that is purchased comes with a frosted UV resistant lens. The lens helps to evenly distribute the light output. The lens easily slides over the top of the track once the strip light is mounted inside.

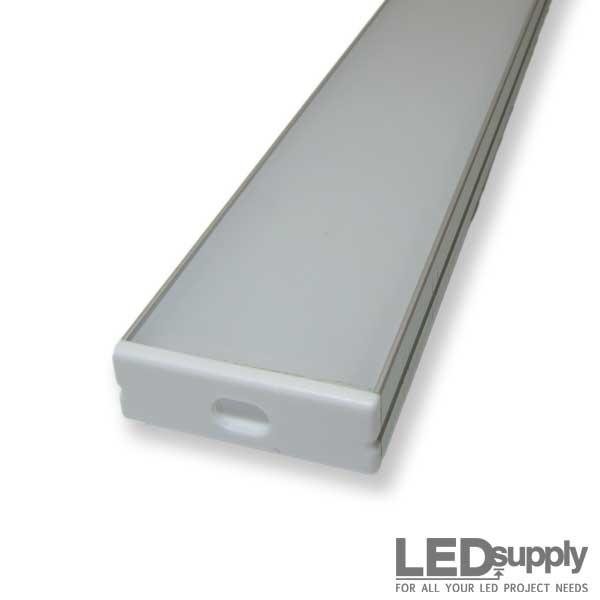

End-Caps

The ends of the aluminum channels can be capped off with the included end-caps. These end-caps allow wires to pass through but help keep out moisture and dust while keeping a clean, finished look.



Mounting

The channels come with mounting hardware included. Each piece includes 2 clips and two screws. Use the screws to mount each clip on the surface needed. Once the clips are in place the channel clicks right in.



The strip lights (like the DUO) are best to be adhered to the inside of the channel using double sided thermal transfer tape.

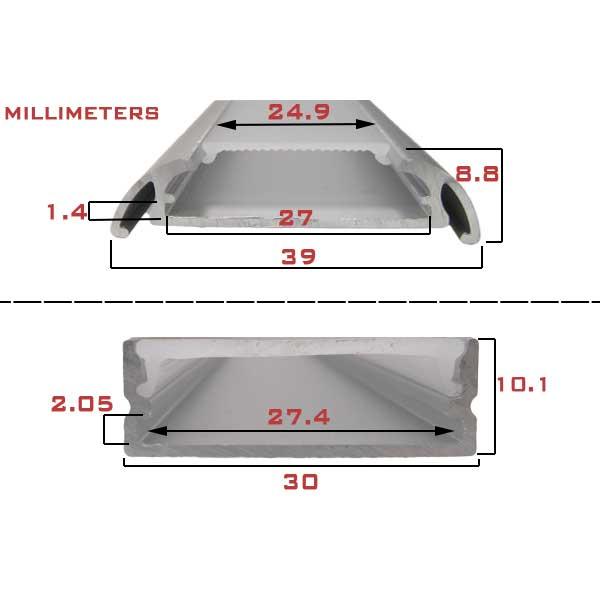

Dimensions
