35mm Deep LED Channel – 1M with Diffuser & Fixed or Articulating Clips, End Caps
More images
- 35.3mm Wide × 25mm High — 31.3mm Internal Width
- 1m (39.4") Anodized Aluminum Channel
- Deep Profile & Diffuser Help Reduce LED Spotting
- Choice of Fixed or Articulating Mounting Clips
- Includes Diffuser, 2 Metal End Caps, 2 Clips & Screws
Documentation
CONFIGURE & BUYPurchase
Ordering for a larger project?
Ask about volume pricing
| VOLUME DISCOUNTS | ||||
| QTY | 10 - 49 | 50 - 99 | 100 - 249 | 250 - 499 |
| % OFF | 2.5% | 5% | 7.5% | 10% |
Product Details

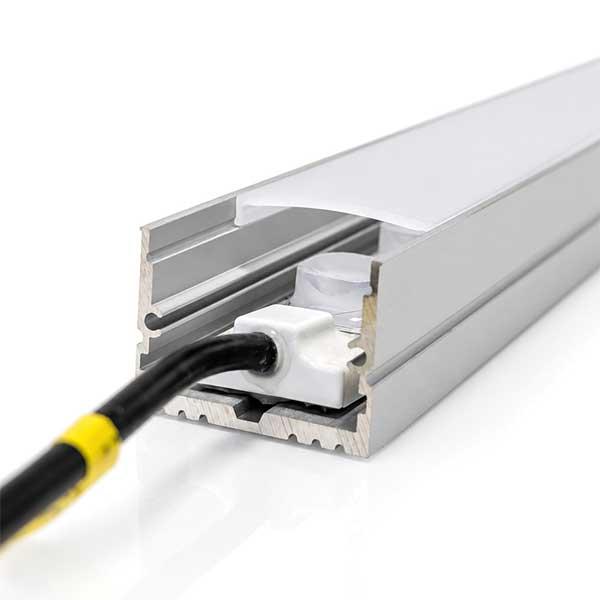

Deep surface-mount channel kit
More room for larger strips. More control over the light.
This anodized aluminum channel houses larger LED strip assemblies and provides added space for light to blend beneath its diffuser. Choose fixed clips for close surface mounting or articulating clips to adjust the direction of the light.

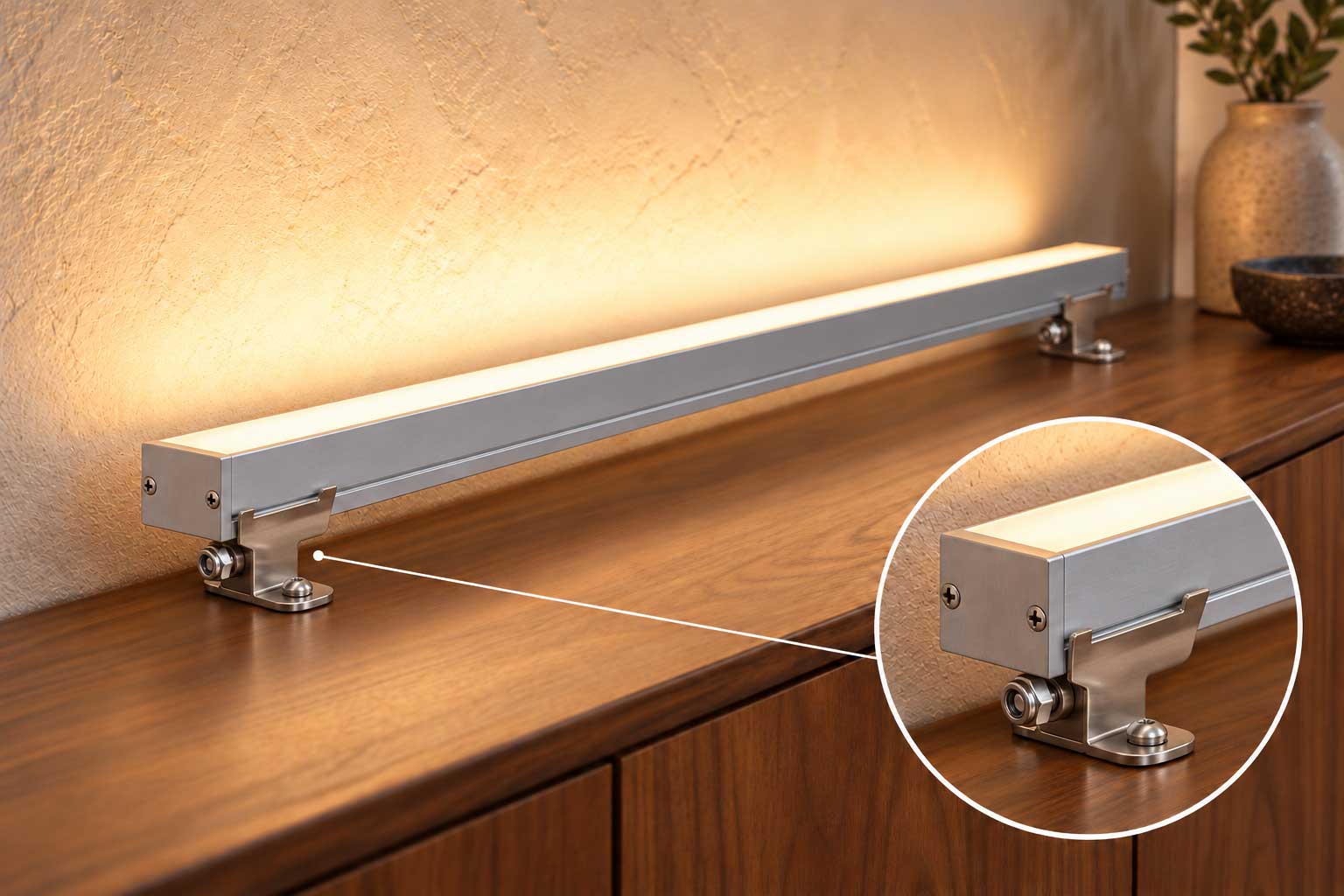

Display and architectural lighting
Put the light where the project needs it.
Aim light toward a wall or display with articulating clips, or keep the channel close to a shelf or cabinet with fixed clips.
The deeper profile helps soften individual LED points. Results depend on LED spacing, strip height, and the diffuser.
Pair with white or RGBW wall-washer strips. The diffuser can alter their beam pattern; test the assembled combination for your intended effect.
Choose your mounting clips
Each kit includes two clips of your selected type.

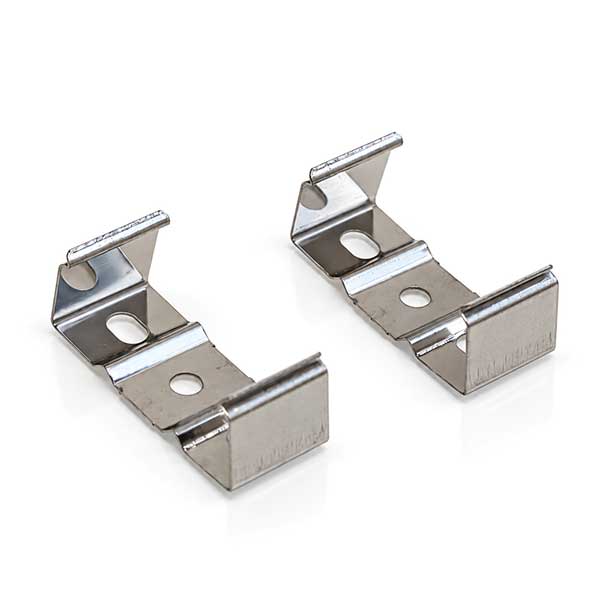

Fixed mounting clips
Hold the channel close to the surface in a fixed position. Choose these when the mounting surface already sets the light direction.

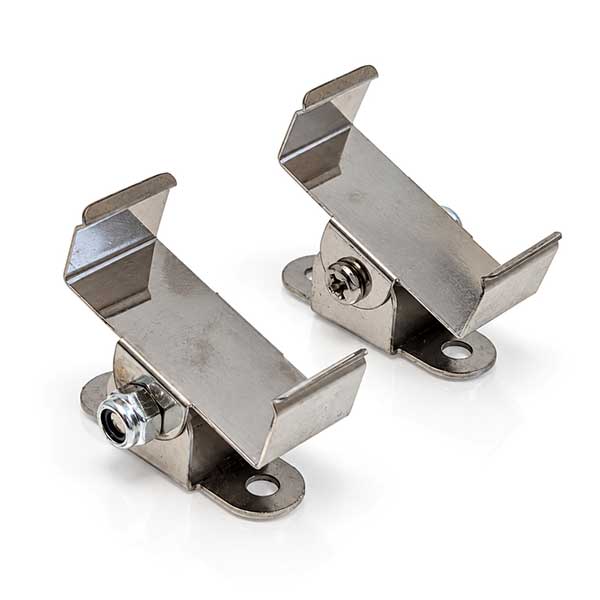

Articulating mounting clips
Pivot the channel to aim the light. Allow space for the brackets, adjustment, and cable routing.
Included with each channel
- 1-meter anodized aluminum channel
- Polycarbonate diffuser cover

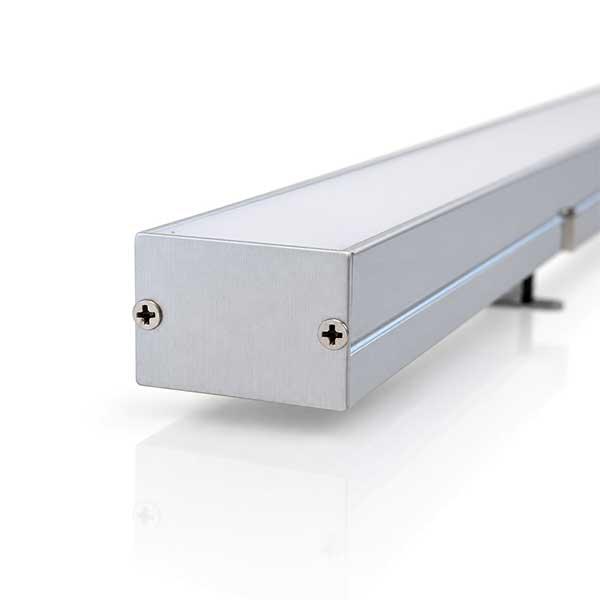

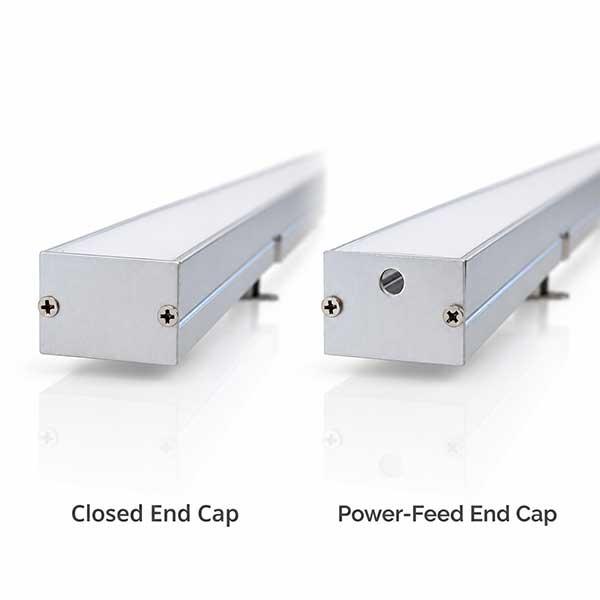

- Two metal end caps: one closed and one with a power-feed hole
- Two fixed or two articulating mounting clips, plus screws
Complete the installation with an LED strip, matched power supply, wiring, and controls as needed. Use fasteners suitable for the mounting surface.

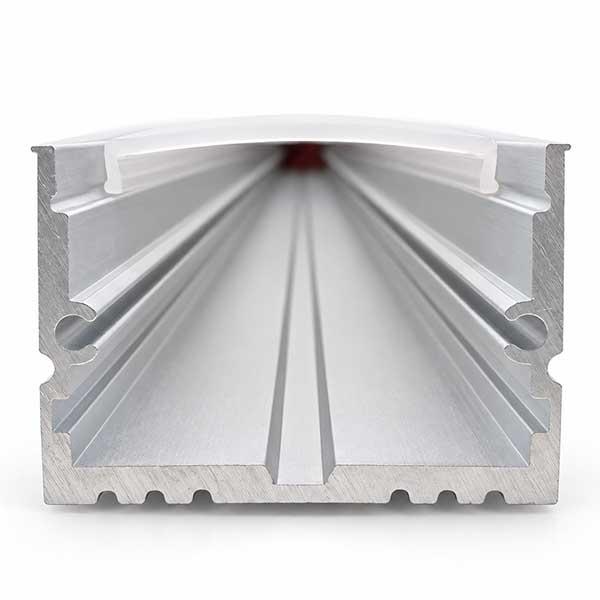

Dimensions and fit
| External profile | 35.3mm W × 25mm H |
|---|---|
| Internal width | 31.3mm shown on drawing |
| Length | 1m / approx. 39.4 in. |
Check the complete strip assembly, including optics, coating, connectors, and wiring, for clearance beneath the diffuser and around internal features. External dimensions are not usable strip clearance. A strip's IP rating does not establish a rating for the channel assembly.
