20° Optic White Flexible LED Wall Washer — 24V, 6W/ft, IP67

Description

Part of our Architectural Series, this IP67 RGBW Flexible Wall Washer combines vibrant RGB color-changing light with a dedicated 2700K Warm White channel. Integrated 20° optical lenses create a precise, narrow beam for wall grazing, façade contouring, architectural accents, and dramatic indoor or outdoor lighting.

Looking for dedicated white output? View the White Flexible LED Wall Washer.

RGBW Configuration

RGB Color + Dedicated Warm White

RGBW combines red, green, and blue color-changing channels with a dedicated 2700K Warm White channel. This provides the flexibility to create saturated colors and dynamic effects while still producing high-quality warm white light when traditional illumination is needed.

Focused 20° Wall-Washing Optic

Unlike standard RGBW strip lights that spread light broadly, each LED uses an integrated 20° secondary optic to concentrate the beam. The narrow output is ideal for grazing textured surfaces, highlighting architectural details, illuminating columns and facades, and creating dramatic vertical color effects with greater control.

Beam Patterns:

Architectural Light Quality

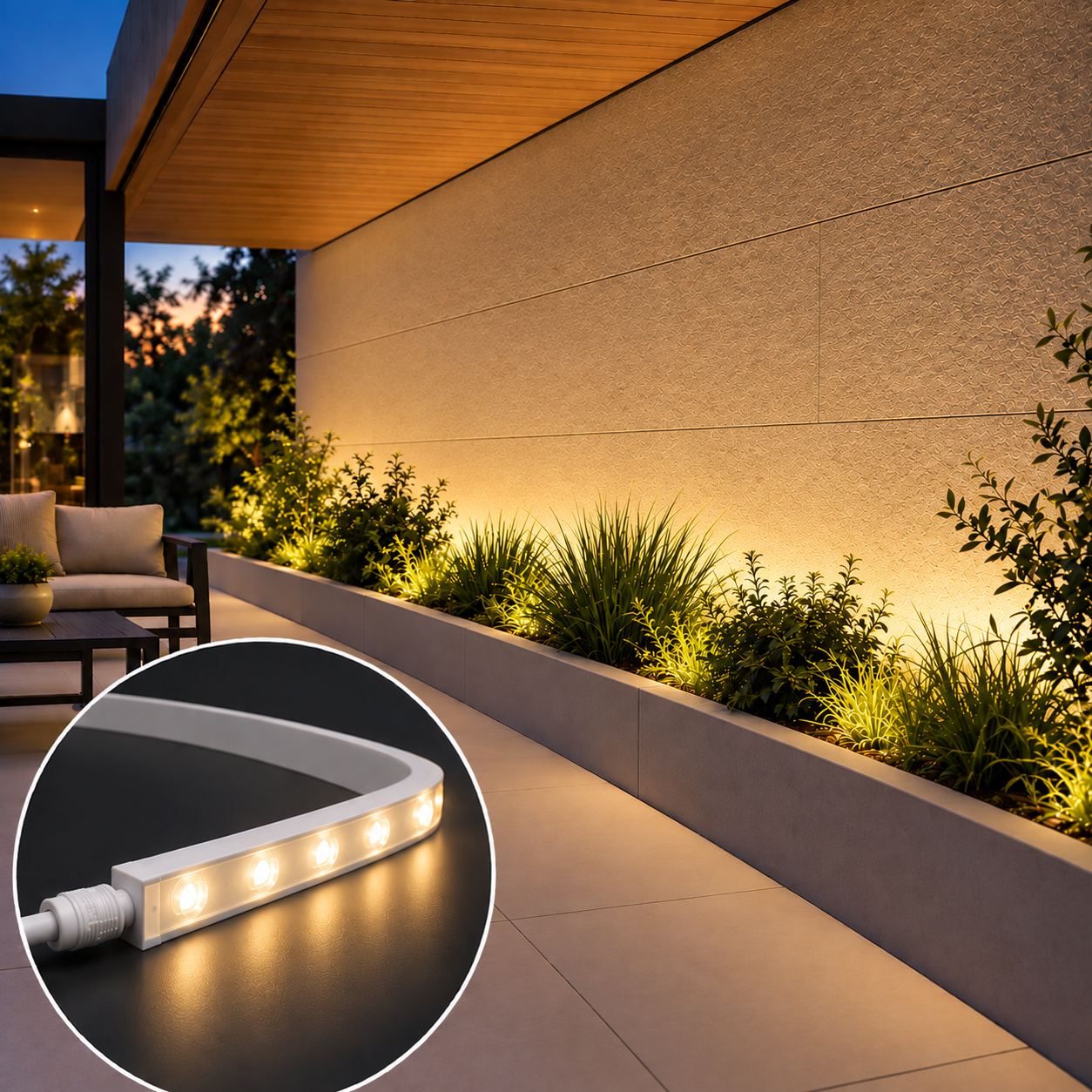

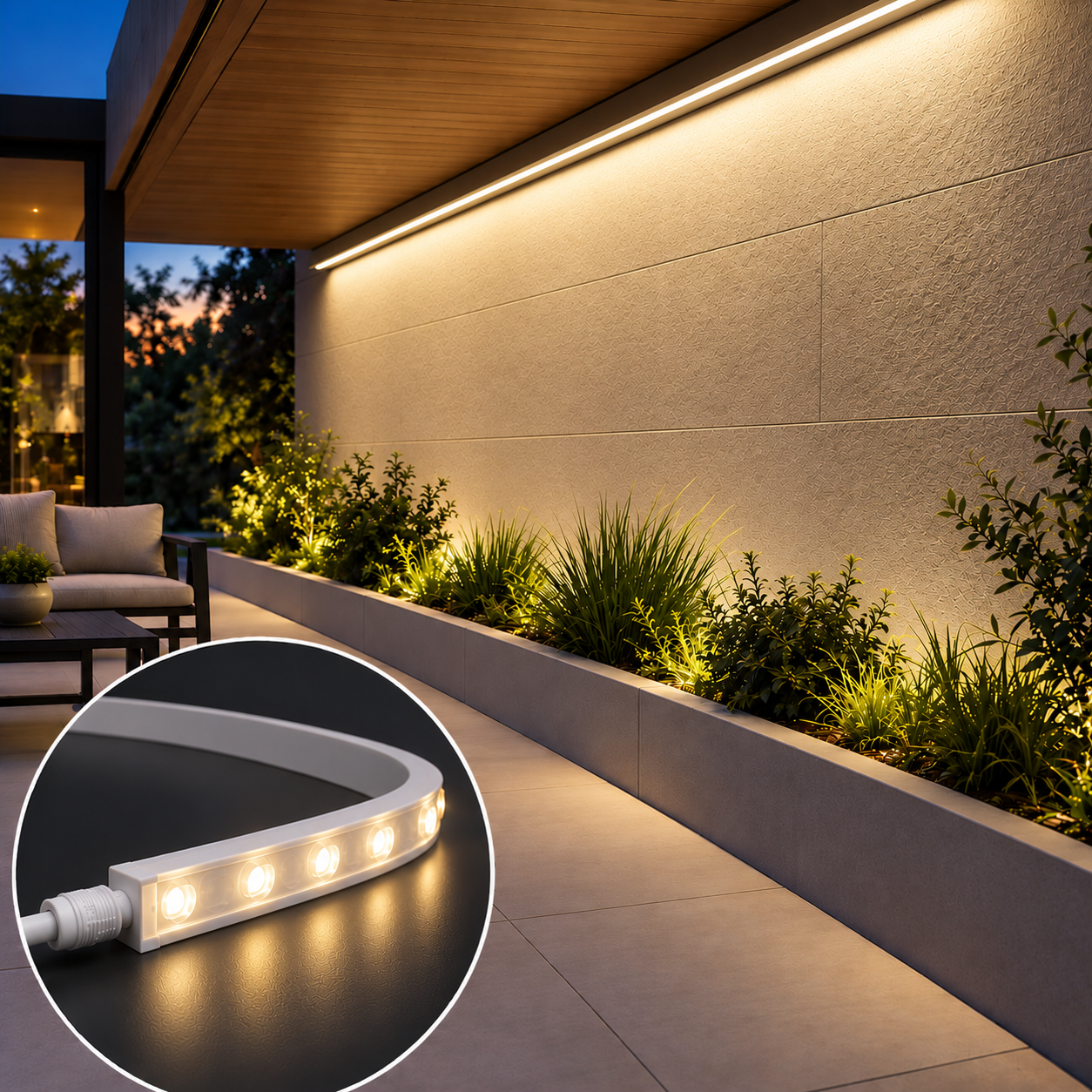

The dedicated 2700K white channel provides 90+ CRI for natural-looking illumination, while the RGB channels add color-changing capability for architectural and decorative effects. This combination makes the wall washer well suited for hospitality, retail, residential architecture, entertainment spaces, museums, and exterior facades.

Outdoor & Flexible Construction

The strip is silicone encapsulated and IP67 rated for indoor or outdoor installations. Its flexible construction allows the wall washer to follow curves, contours, and architectural details that would be difficult to illuminate with rigid fixtures.

Lengths & Cutting

The strip can be cut every 1.31 inches at the designated cut points for precise fitting. Maximum continuous run length is 16.4 ft (5m); longer installations should use additional power feeds or separate runs to minimize voltage drop.

Power & RGBW Control

A 24V DC power supply is required. An RGBW controller is also required to independently control the red, green, blue, and white channels and create colors, effects, and dimming.
