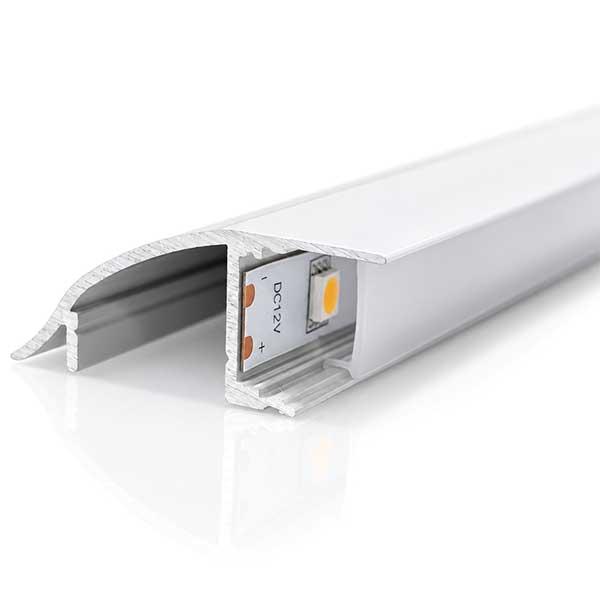

Crown Molding LED Channel for 10mm LED Strip - Diffuser Lens & End Caps

Plan the light above the channel

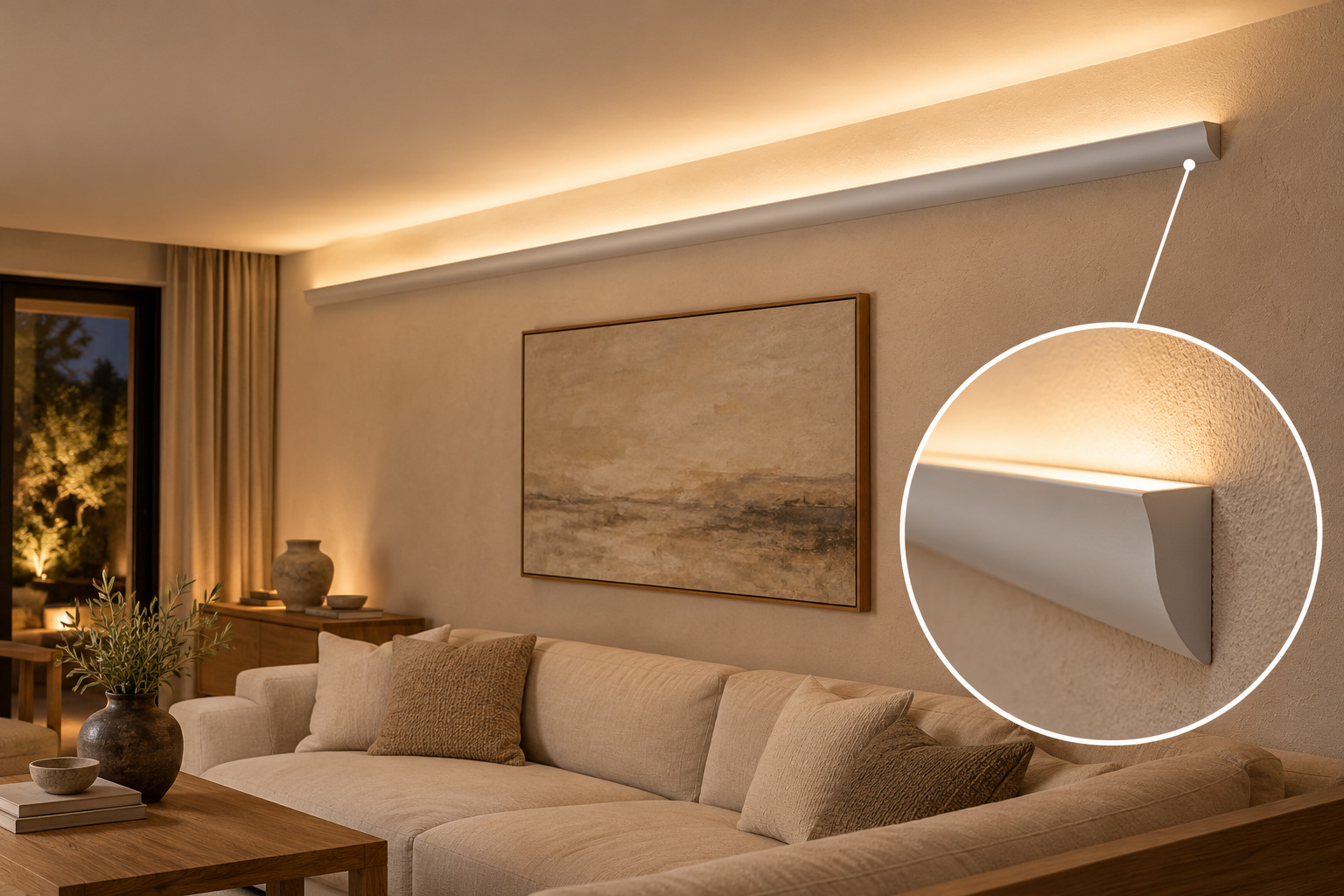

Mount below the ceiling to create an indirect lighting detail around a room or feature wall. Position the channel so light can reach the surface above while the curved front helps screen the strip from normal viewing positions.

Test a short illuminated section at the intended mounting height before installing the full run. Ceiling clearance, surface texture, strip output, and LED spacing all affect the finished appearance.

Check the strip and installation space

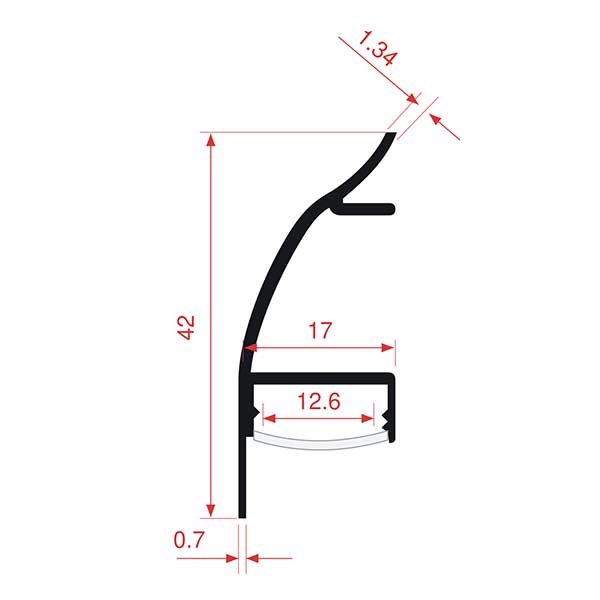

The drawing shows a 12.6mm internal compartment dimension; the specified strip fit is up to 10mm. Check connector width, strip coating, and component height separately. Allow room for wiring and access above the channel.

Mount the clips, then fit the channel

1. Mark a level mounting line and plan the power-feed location before fastening the clips.
2. Secure the clips using fasteners appropriate for the wall construction.

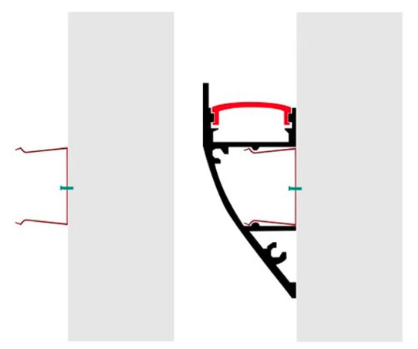

3. Align the channel with the clips and push it into engagement as shown. Check that each clip is seated.
4. Fit the strip, route the wiring, and test the lighting before completing the end caps.

Plan strip and wiring access before engaging the channel, particularly where ceiling clearance is limited.

Finish the ends and complete the system

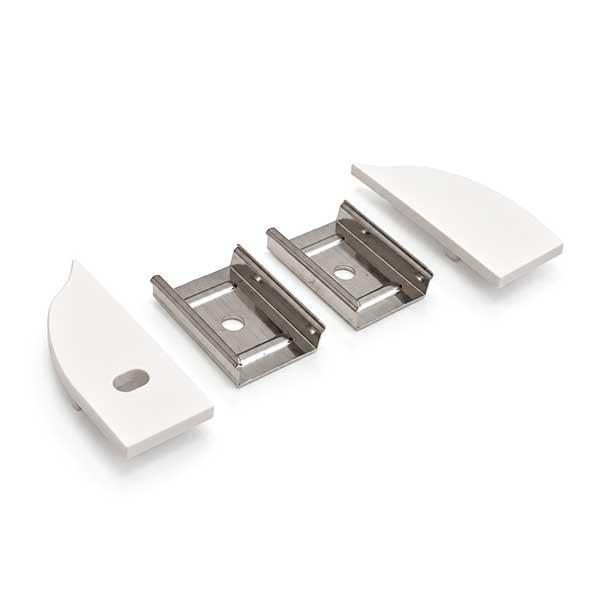

Included mounting clips secure the channel, and matching end caps finish exposed ends. The pictured cable-entry end cap provides a route for the power lead.

Select a compatible LED strip, matched power supply, wiring, and any required dimmer or controller. Position the power supply where it remains accessible for service.
