3-Up Cree XP-E2 Single Color LED Star - Optics Ready™
More images
Regular Price: $15.74
Sale Price: $12.95
You Save: $2.79
PART #: CREEXPE2-COL-3
VOLUME DISCOUNTS
PCS
% OFF
10 - 49
2.5%
50 - 99
5%
100 - 249
7.5%
250 - 499
10%
First Class > $49.99
FREE
First Class
$5.99
Ground
$11.99
2-Day
$15.99
Express
CALC
Purchase
ORDER BY 3PM EST FOR
SAME DAY SHIPPING
SAME DAY SHIPPING
High Performance Cree XLamp XP-E2 LEDs arranged in Optics Ready™ format on MCPCB. Range of color choices.
Share:
Product Details
Features
| XLamp Reliability: SC3 Silicone Carbide Technology | Color Range: Visible Spectrum |
| Max Drive Current: Up to 1000mA | Wide Viewing Angle: 110° to 130° |
| Secondary Optics: Compatible with Fusion Optix & Carclo Triple (3-Up) Optics | Binned: White Binned @ 85°C |
| Thermal Resistance: Low as 5°C/W | Max. Junction Temp.: 150°C |
| Compliant: RoHS ULE349212 | XP-E2 Emiiter Size: 3.45mm X 3.45mm |
| Optics Ready™: Compatible with 3-Up optics from Fusion Optix and Carclo |
Description
The triple (3-Up) Cree XLamp® XP-E2 LED has an identical foot-print (3.45mm square) as the original XP-E, but by using silicone carbide SC3 technology Cree has increased lumen output by more than 20% and doubled the lumens per dollar over the original XP-E. This unprecedented performance includes colors and in most cases the XP-E2 LED is 88% brighter than alternative high-brightness color LEDs.

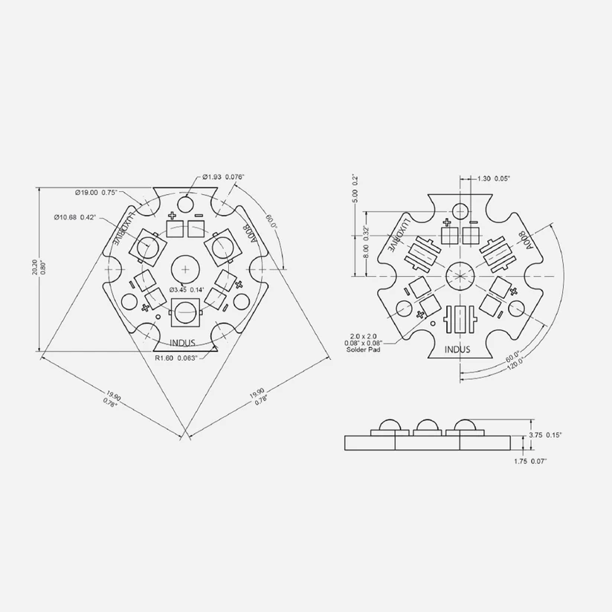

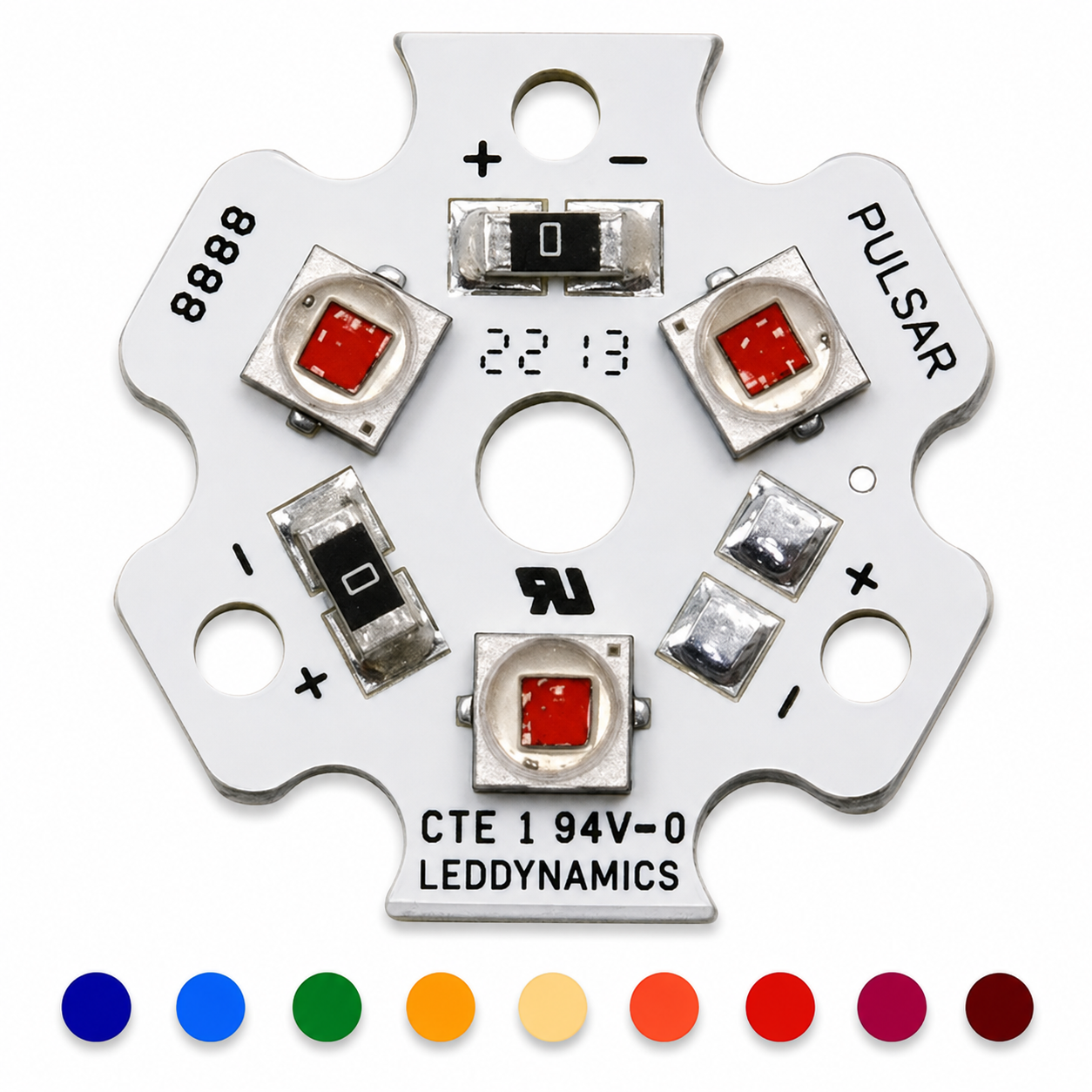

This triple (3-Up) Cree XP-E2 LED uses three XP-E2 LED emitters re-flowed to a high-quality LUXdrive 20mm metal core Indus Star printed circuit board (MCPCB). The 20mm MCPCB is a electrically isolated standard hexagonal shape board (LED Star) with two solder pads for easy handling and wiring. The combination of XP-E2 LED and MCPCB is compatible with either 20mm secondary optics from Fusion Optix or Carclo and the LED is available in range of colors.
Product Images

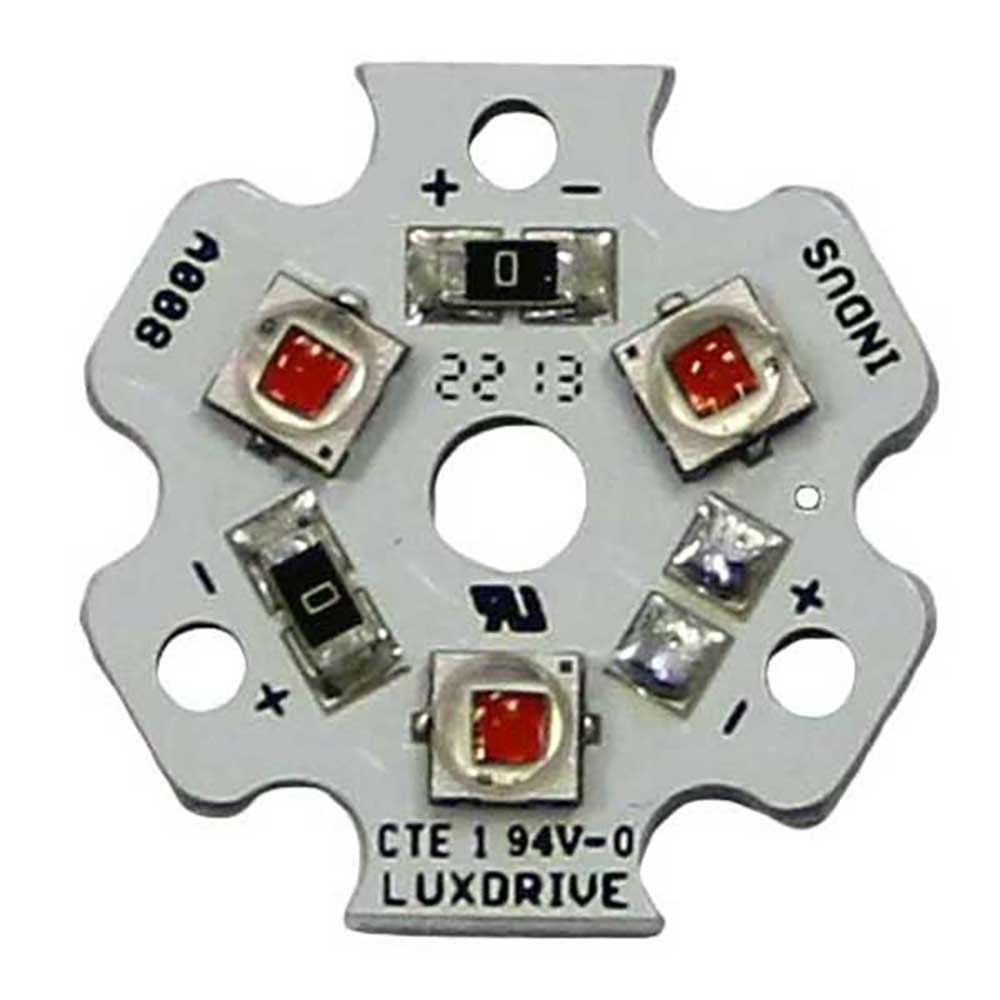

REDCREEXPE2-RED-3
RED/ORANGECREEXPE2-RDO-3
AMBERCREEXPE2-AMB-3
GREENCREEXPE2-GRN-3

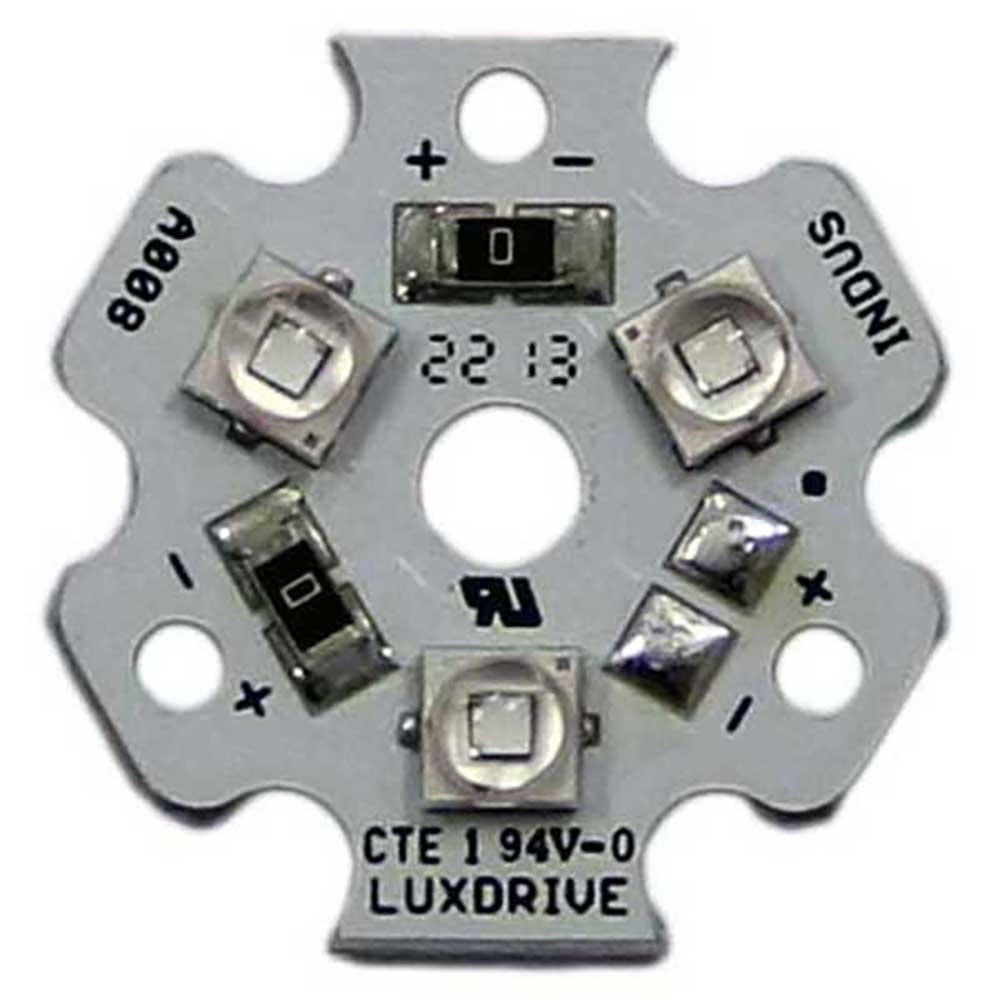

BLUECREEXPE2-BLU-3
ROYAL-BLUECREEXPE2-ROY-3
Technical Documentation
Color
Typical CCT/NM
Group
Max. Flux
Order Code
Part #
Royal Blue
450nm
33
4251mW
XPEBRY-L1-0000-00M01
CREEXPE2-ROY-3
Blue
465nm
K2
192.9
XPEBBL-L1-0000-00Y01
CREEXPE2-BLU-3
Green
520nm
Q5
609.9
XPEBGR-L1-0000-00D01
CREEXPE2-GRN-3
Amber
585nm
P3
532.2
XPEBAM-L1-0000-00801
CREEXPE2-AMB-3
Red Orange
610nm
P4
630
XPEBRO-L1-0000-00901
CREEXPE2-RDO-3
Red
620nm
P2
525
XPEBRD-L1-0000-00701
CREEXPE2-RED-3
Characteristics
Unit
Min.
Typical
Max.
Thermal Resistance, junction to solder point - white, royal blue, blue
°C/W
9
Thermal Resistance, junction to solder point - green
°C/W
15
Thermal Resistance, junction to solder point - amber
°C/W
7
Thermal Resistance, junction to solder point - red, red-orange
°C/W
5
Viewing Angle (FWHM) - royal blue, blue, green
°Degree
135
Viewing Angle (FWHM) - amber, red, red-orange
°Degree
130
Temperature coefficient of voltage - white
mV/°C
-2.3
Temperature coefficient of voltage - royal blue, blue
mV/°C
-3.3
Temperature coefficient of voltage - green
mV/°C
-3.8
Temperature coefficient of voltage - amber, red-orange, red
mV/°C
-1.8
Max.
ESD Withstand Voltage (HBM per Mil-Std-883D) white, royal-blue, blue, green
V
8000
ESD Classification (HBM per Mil-Std-883D) amber, red-orange, red
Class 2
DC Forward Current
mA
1000
Reverse Voltage
V
5
Forward voltage (@ 350 mA, , 25°C) - blue, royal-blue
V
9.3
10.5
Forward voltage (@ 1000 mA, , 25°C) - blue, royal-blue
V
10.2
Forward voltage (@ 350 mA, , 25°C) - green
V
9.6
11.4
Forward voltage (@ 1000 mA, , 25°C) - green
V
11.1
Forward voltage (@ 350 mA, , 25°C) - amber, red, red-orange
V
6.6
7.8
Forward voltage (@ 1000 mA, , 25°C) - amber, red, red-orange
V
7.95
LED Junction Temperature
°C
150
Full Documentation
Cree XP-E2 Documentation
Accessories

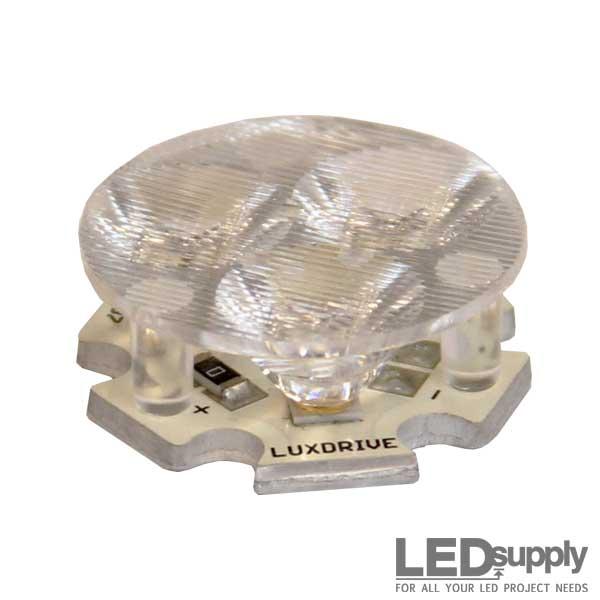

Triple (3-Up) Carclo Optics for Cree XP-E2 LED
