DiffuseTEK® PMMA Diffusion Film - Circular Distributions - 6"x6" Sample Pack

More images

DiffuseTEK® PMMA Diffusion Film - Circular Distributions - 6"x6" Sample Pack

DiffuseTEK® PMMA Diffusion Film - Circular Distributions - 6

Regular Price: $55.00

Sale Price: $44.99

You Save: $10.01

PART #: FO-SAMPLESHEET-6X6-PMMA

HIGHLIGHTS

Choose: PMMA Circular or PMMA Elliptical
Labeled 6" × 6" Sheets with Optical Specs
Ideal for Testing, Prototyping, and Specification

ORDER BY 3PM EST
FOR SAME DAY SHIPPING

Purchase

SHIPPING
1st Class	FREE*
1st Class	$5.99
Ground	$11.99
2-Day	$15.99
Express	CALC

DISCOUNTS
QTY	% OFF
10 - 49	2.5%
50 - 99	5%
100 - 249	7.5%
250-499	10%

^* With orders > $49.99 and under 13oz. CLICK HERE for details.

THIS OPTION IS TEMPORARILY UNAVAILABLE

Product Details

Available Packs: PMMA Circular, PMMA Elliptical	Sheet Labelling: Each sample includes product code and specs
Sheet Size: 6" × 6" (150mm × 150mm)	QTY Per Pack: 10 Sheets
Optical Specs: Diffusion Angle, Transmission, Haze, Clarity, Thickness	Typical Applications: LED testing, prototyping, optical system design
Manufacturer: Fusion Optix – USA-based optical film experts	Reference Card: Included in each pack for easy comparison
Customization: Available via Fusion Optix engineering support

Description

The Fusion Optix DiffuseTEK® Advanced Diffusion Films (ADF Series) are engineered for precise optical control in LED lighting applications. Choose from three premium sample packs; each pack includes 6" × 6" labeled sample sheets featuring spec data - allowing designers, engineers, and OEMs to evaluate optical properties side-by-side.

Available Sample Pack Options:

PMMA Circular Diffusion:
Designed for high optical clarity and excellent UV resistance. Provides smooth circular beam spread options.
PMMA Elliptical Diffusion:
Precision films designed for asymmetric and elliptical beam control. Useful for wall washing, linear fixtures, task lighting and architectural applications

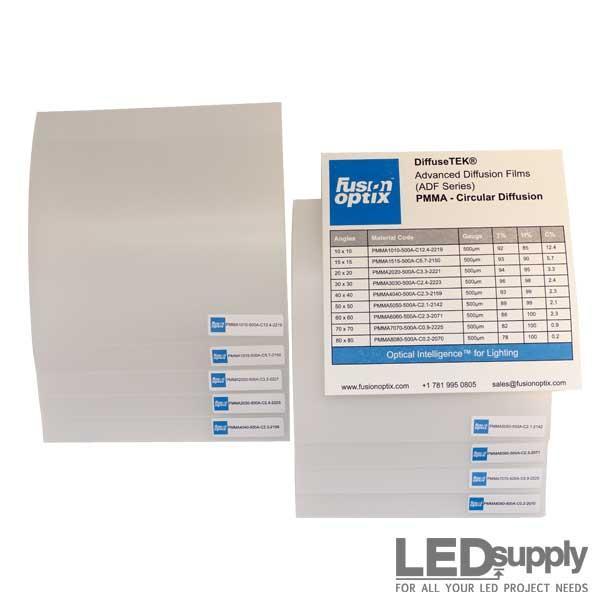

Each pack includes a reference insert with thickness, transmission, haze, clarity, and diffusion angle for every sheet—making it easy to evaluate performance at a glance.

Why Choose Fusion Optix Films?

Fusion Optix is a global leader in advanced optics for LED lighting and has been at the forefront of optical innovation for more than 20 years. Their diffusion films are trusted by lighting manufacturers, fixture designers, and engineers due to their unmatched consistency and performance. For full-sheet sizes or production quantities, contact LEDSupply or Fusion Optix directly.

Product Tables

**PMMA – Circular Diffusion**
ANGLES	MATERIAL CODE	GAUGE	TRANS.	HAZE	CLARITY
10 x 10	PMMA1010-500A-C12.4-2219	500 µm	92	85	12.4
15 x 15	PMMA1515-500A-C5.7-2150	500 µm	93	90	5.7
20 x 20	PMMA2020-500A-C3.3-2221	500 µm	94	95	3.3
30 x 30	PMMA3030-500A-C2.4-2223	500 µm	96	98	2.4
40 x 40	PMMA4040-500A-C2.3-2159	500 µm	93	99	2.3
50 x 50	PMMA5050-500A-C2.1-2142	500 µm	89	99	2.1
60 x 60	PMMA6060-500A-C2.3-2071	500 µm	86	100	2.3
70 x 70	PMMA7070-500A-C0.9-2225	500 µm	82	100	0.9
80 x 80	PMMA8080-500A-C0.2-2070	500 µm	78	100	0.2

**PMMA – Elliptical Diffusion**
ANGLES	MATERIAL CODE	GAUGE	TRANS.	HAZE	CLARITY
20 x 05	PMMA2005-300A-C17.7-2047	300 µm	89	93	17.7
30 x 05	PMMA3005-350A-C14.3-2047	350 µm	89	94	14.3
40 x 05	PMMA4005-400A-C9.9-2047	400 µm	87	96	9.8
50 x 10	PMMA5010-500A-C5.2-2047	500 µm	86	98	5.2
60 x 15	PMMA6015-600A-C3.5-2047	600 µm	85	99	3.5
70 x 20	PMMA7020-700A-C2.2-2047	700 µm	83	99	2.2
80 x 30	PMMA8030-750A-C2.3-2047	750 µm	82	99	2.3
95 x 55	PMMA9555-1000A-C1.1-2047	1000 µm	75	100	1.1
