DiffuseTEK® PMMA Diffusion Film - Elliptical Distributions - Single Sheet

More images

DiffuseTEK® PMMA Diffusion Film - Elliptical Distributions - Single Sheet

Regular Price: $20.00

Sale Price: $14.99

You Save: $5.01

PART #: FO-PMMAXXXXXX-XXX

HIGHLIGHTS

Fusion Optix® DiffuseTEK® PMMA diffusion films
Available in 0.30mm and 0.75mm thicknesses

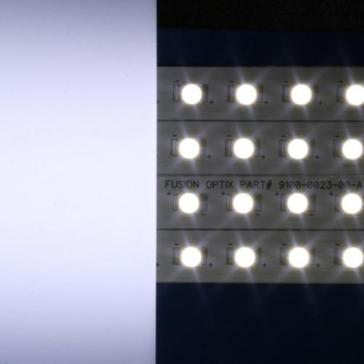

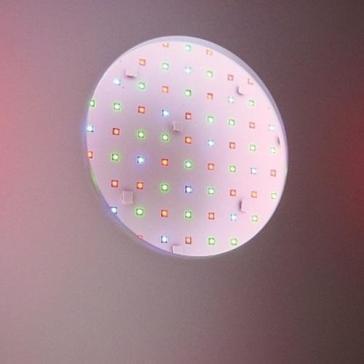

Reduces LED hot spots for smooth, uniform light
Ideal for LED strips, modules and light boxes
Single-sheet format for prototypes and lighting projects

CONFIGURE & BUY

Purchase

PN: FO-PMMAXXXXXX-XXX

THIS OPTION IS TEMPORARILY UNAVAILABLE

QTY

298 PCS IN-STOCK

Ordering for a larger project?
Ask about volume pricing

VOLUME DISCOUNTS
QTY	10 - 49	50 - 99	100 - 249	250 - 499
% OFF	2.5%	5%	7.5%	10%

Order by 3pm ET for
same-day shipping.

Free shipping available, click here for details.

Product Details

Fusion Optix® DiffuseTEK® PMMA Diffusion Films provide smooth, uniform light while reducing visible LED hot spots without sacrificing optical performance. Available in range of thicknesses, these optical-grade acrylic diffusion sheets are ideal for LED strips, linear modules, light boxes, luminaires and custom lighting projects where clean, even illumination is required.

Available Thicknesses: Less than 1.0mm	Sheet Labelling: Each sample includes product code and specs
Sheet Sizes: 6"×6", 6"x12", 12"x12"	QTY Per Order: 1 Sheets
Optical Specs: Diffusion Angle, Transmission, Haze, Clarity, Thickness	Typical Applications: LED testing, prototyping, optical system design
Manufacturer: Fusion Optix – USA-based optical film experts
Customization: Available via Fusion Optix engineering support

Technical Specifications

**PMMA – Elliptical Diffusion**
ANGLES	MATERIAL CODE	GAUGE	TRANS.	HAZE	CLARITY
20 x 05	PMMA2005-300A-C17.7-2047	300 µm	89	93	17.7
30 x 05	PMMA3005-350A-C14.3-2047	350 µm	89	94	14.3
40 x 05	PMMA4005-400A-C9.9-2047	400 µm	87	96	9.8
50 x 10	PMMA5010-500A-C5.2-2047	500 µm	86	98	5.2
60 x 15	PMMA6015-600A-C3.5-2047	600 µm	85	99	3.5
70 x 20	PMMA7020-700A-C2.2-2047	700 µm	83	99	2.2
80 x 30	PMMA8030-750A-C2.3-2047	750 µm	82	99	2.3
95 x 55	PMMA9555-1000A-C1.1-2047	1000 µm	75	100	1.1

Why Choose Fusion Optix?

Fusion Optix is a global leader in advanced optics and materials for LED lighting and has been at the forefront of optical innovation for more than 20 years. Their diffusion sheet products are trusted by lighting and signage manufacturers, fixture designers, and engineers due to their unmatched consistency and performance. For full-sheet sizes or production quantities, contact LEDSupply or Fusion Optix directly.
