Optic: Fusion Optix DiffuseTEK® 6"x6" Sample Size - PC Diffusion Films
More images
Purchase
SAME DAY SHIPPING
- Choose of circular diffusion patterns

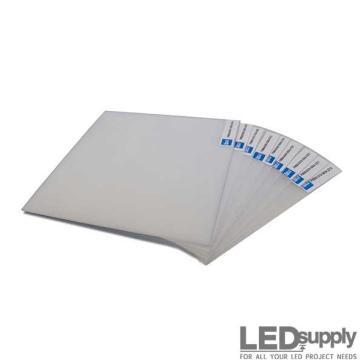

- Labeled 6" × 6" PC Sheets with Optical Specs
- Ideal for Testing, Prototyping, and Specification
![](http://pinterest.com/pin/create/bookmarklet/?media=https://www.ledsupply.com/images%2Fproducts%2Ffo-samplesheet-6x6-pc.jpg&url=https%3A%2F%2Fwww.ledsupply.com%2Fled-optics%2Ffusion-optix-pc-sample-pack&is_video=false&description=Optic: Fusion Optix DiffuseTEK® 6"x6" Sample Size - PC Diffusion Films)
Product Details
| Available Packs: PC Circular | Sheet Labelling: Each sample includes product code and specs |
| Sheet Size: 6" × 6" (150mm × 150mm) | QTY Per Pack: 10 Sheets |
| Optical Specs: Diffusion Angle, Transmission, Haze, Clarity, Thickness | Typical Applications: LED testing, prototyping, optical system design |
| Manufacturer: Fusion Optix – USA-based optical film experts | Reference Card: Included in each pack for easy comparison |
| Customization: Available via Fusion Optix engineering support |
Description
The Fusion Optix DiffuseTEK® Advanced Diffusion Films (ADF Series) are engineered for precise optical control in LED lighting applications. Choose from three premium sample packs; each pack includes 6" × 6" labeled sample sheets featuring spec data - allowing designers, engineers, and OEMs to evaluate optical properties side-by-side.
Available Sample Pack Options:
- PC Circular Diffusion:
Impact-resistant polycarbonate construction. Similar circular beam diffusion with increased toughness.

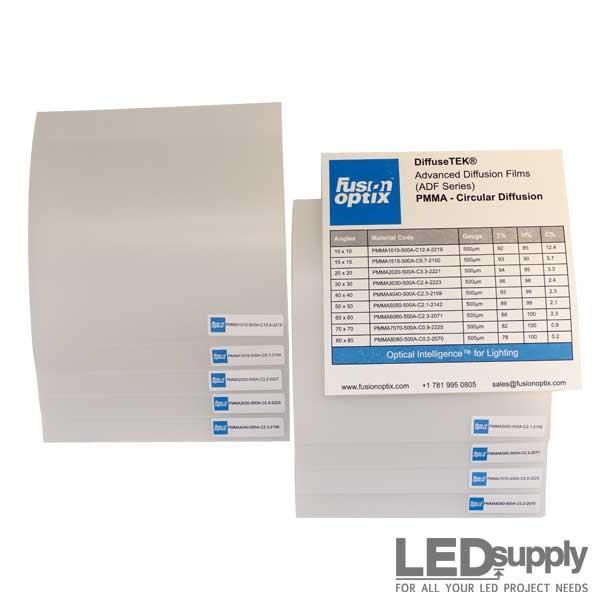

Each pack includes a reference insert with thickness, transmission, haze, clarity, and diffusion angle for every sheet—making it easy to evaluate performance at a glance.
Why Choose Fusion Optix Films?
Fusion Optix is a global leader in advanced optics for LED lighting and has been at the forefront of optical innovation for more than 20 years. Their diffusion films are trusted by lighting manufacturers, fixture designers, and engineers due to their unmatched consistency and performance. For full-sheet sizes or production quantities, contact LEDSupply or Fusion Optix directly.
Product Tables
| ANGLES | MATERIAL CODE | GAUGE | TRANS. | HAZE | CLARITY |
| 40 x 40 | PC4040-300A-C2.0-2050 | 300 µm | 86 | 99 | 2.0 |
| 60 x 60 | PC6060-300A-C1.6-2051 | 300 µm | 83 | 100 | 1.6 |
| 80 x 80 | PC8080-300A-C1.6-2052 | 300 µm | 80 | 100 | 1.6 |
| 100 x 100 | PC100100-400A-C2.0-3040 | 400 µm | 70 | 100 | 2.0 |
| 90 x 90 | PC9090-750A-C1.3-2040 | 750 µm | 71 | 100 | 1.3 |
