DiffuseTEK® PMMA Diffusion Film - Circular Distributions - Single Sheet

More images

DiffuseTEK® PMMA Diffusion Film - Circular Distributions - Single Sheet

Regular Price: $20.00

Sale Price: $14.99

You Save: $5.01

PART #: FO-PMMAXXXXXX-XXXX

HIGHLIGHTS

Fusion Optix® DiffuseTEK® PMMA diffusion films
Available in 0.30mm and 0.75mm thicknesses

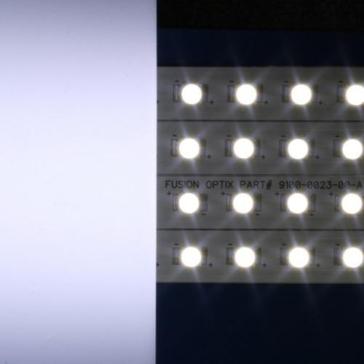

Reduces LED hot spots for smooth, uniform light
Ideal for LED strips, modules and light boxes
Single-sheet format for prototypes and lighting projects

CONFIGURE & BUY

Purchase

PN: FO-PMMAXXXXXX-XXXX

THIS OPTION IS TEMPORARILY UNAVAILABLE

QTY

298 PCS IN-STOCK

Ordering for a larger project?
Ask about volume pricing

VOLUME DISCOUNTS
QTY	10 - 49	50 - 99	100 - 249	250 - 499
% OFF	2.5%	5%	7.5%	10%

Order by 3pm ET for
same-day shipping.

Free shipping available, click here for details.

Product Details

Fusion Optix® DiffuseTEK® PMMA Diffusion Films provide smooth, uniform light while reducing visible LED hot spots without sacrificing optical performance. Available in 2mm and 3mm thicknesses, these optical-grade diffusion sheets are ideal for LED strips, linear modules, light boxes, luminaires and custom lighting projects where clean, even illumination is required.

Available Thicknesses: Less than 1.0mm	Sheet Labelling: Each sample includes product code and specs
Sheet Sizes: 6"×6", 6"x12", 12"x12"	QTY Per Order: 1 Sheets
Optical Specs: Diffusion Angle, Transmission, Haze, Clarity, Thickness	Typical Applications: LED testing, prototyping, optical system design
Manufacturer: Fusion Optix – USA-based optical film experts
Customization: Available via Fusion Optix engineering support

Technical Specifications

**PMMA – Circular Diffusion**
ANGLES	MATERIAL CODE	GAUGE	TRANS.	HAZE	CLARITY
10 x 10	PMMA1010-500A-C12.4-2219	500 µm	92	85	12.4
15 x 15	PMMA1515-500A-C5.7-2150	500 µm	93	90	5.7
20 x 20	PMMA2020-500A-C3.3-2221	500 µm	94	95	3.3
30 x 30	PMMA3030-500A-C2.4-2223	500 µm	96	98	2.4
40 x 40	PMMA4040-500A-C2.3-2159	500 µm	93	99	2.3
50 x 50	PMMA5050-500A-C2.1-2142	500 µm	89	99	2.1
60 x 60	PMMA6060-500A-C2.3-2071	500 µm	86	100	2.3
70 x 70	PMMA7070-500A-C0.9-2225	500 µm	82	100	0.9
80 x 80	PMMA8080-500A-C0.2-2070	500 µm	78	100	0.2

Why Choose Fusion Optix?

Fusion Optix is a global leader in advanced optics and materials for LED lighting and has been at the forefront of optical innovation for more than 20 years. Their diffusion sheet products are trusted by lighting and signage manufacturers, fixture designers, and engineers due to their unmatched consistency and performance. For full-sheet sizes or production quantities, contact LEDSupply or Fusion Optix directly.
