Cree XLamp XP-E2 Color High Power LED Star

Cree XLamp XP-E2 Color High Power LED Star
Click to enlarge

More images

Sale Price: $3.99
Compared at: $4.39
You Save: $0.40
PART #: CREEXPE2-COL-X
Volume Discounts
PCS% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class
FREE
Priority Mail
$5.99
FedEx Ground
$7.99
UPS Ground
$8.99
FedEx Express
CALC
1116PCS IN-STOCK
Add to Cart
ORDER BY 3PM EST FOR
SAME DAY SHIPPING

Product Details


Features

Cree XLamp Reliability: 88% brighter than other high-power color LEDs Colors: Red, Red Orange, PC Amber, Amber, Green, Blue & Royal-Blue
Max Drive Current: Up to 1 Amp (1000mA) Wide Viewing Angle: 110°
Secondary Optics: Compatible with Carclo Lenses Binned: Colors @ 25°C
Thermal Resistance: 5°C/W Max. Junction Temp.: 150°C
Compliant: RoHS, REACH, UL (E349212) XP Emitter Size: 3.45mm X 3.45mm




Description

Need Some Color?

Now find your Cree XLamp XP-E2 LEDs in a variety of colors. The XP-E2 uses Cree's SC3 (silicon-carbide) technology to boost output over the original XP-E diode. This performance boost makes the XP-E2's color output 88% brighter than alternative high-power color LEDs. Now lighting manufacturers are able to design for a wider range of applications more cost effectively. These XP-E2 color LEDs can be seen in architectural, vehicle and display lighting.


Colors

The XP-E2 color LED is offered here in RedRed-OrangePC AmberAmberGreenBlue and Royal-Blue. Photo Red and Far Red are not available yet in the XP-E2, but we do carry those colors in the original XP-E here.


LED Star MCPCB

1-up led star versus 3-up led star

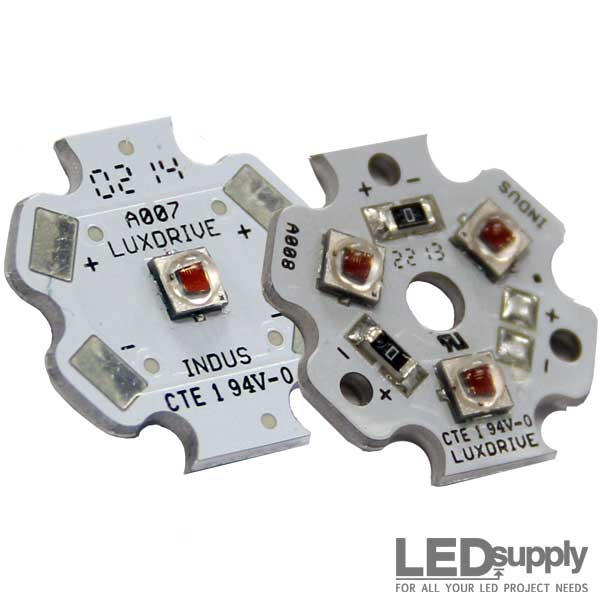

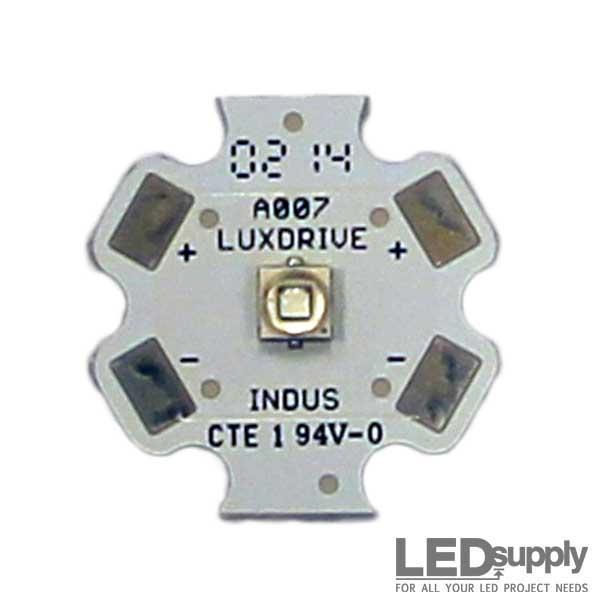

We offer the color XP-E2 in two metal core printed circuit board (MCPCB) versions: a single (1-Up) and triple (3-Up). The 1-Up is a single XP-E2 LED reflow soldered to a 20mm hexagonal (LED Star) MCPCB. The MCPCB has four large solder pads for easy solder connections. The 3-Up is three (3) XP-E2 LEDs reflow soldered in-series to a 20mm hexagonal MCPCB. The 3-Up MCPCB has two solder pads for connections, mounting holes for secondary carclo optics and a center hole for wires or securing the LED star to a heat sink.

1-up led star optic versus 3-up led star optic

Secondary Optics

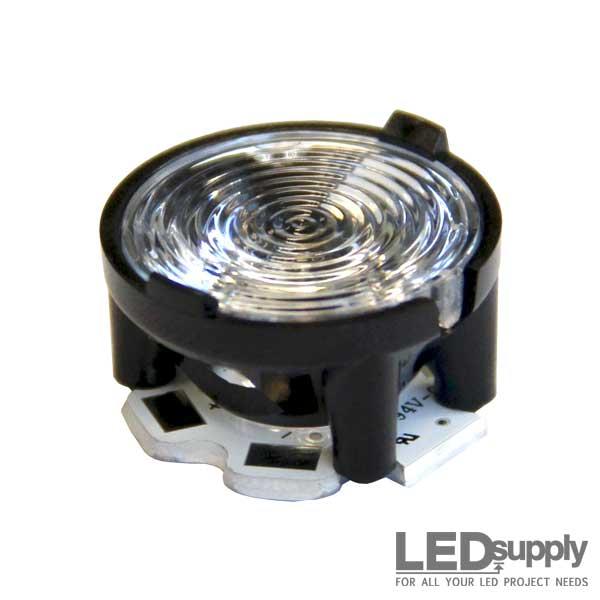

Both versions (1-Up & 3-Up) of the color XP-E2 are designed to work with secondary optics from Carclo; Carclo is a leader in molded poly-carbonate lens systems. The 1-Up secondary lens system combines a plastic holder and lens that sits on top of the 1-Up MCPCB, while the 3-Up optic is a one-piece system with three legs that sit down into corresponding holes on the 3-Up MCPCB. These secondary optics focus light into narrow, medium, wide and elliptical patterns. More information is available on optics that mate with the XP-E2 LED on this page under the 'Accessories' tab above.

Images, Part Numbers & Notes

Selecting the LED options near the 'add to cart' button displays the corresponding product image and part number. For referencing detailed specifications there are tables and downloadable documentation below.  Important Note: Unless noted otherwise the specifications listed are for a single XP-E2 LED. This means that in most cases the values need to be tripled for applications with the 3-Up version. For Example, if the forward voltage listed is 3.15V @ 350mA, then the 3-Up version would be 9.45V.




Technical Documentation

FLUX CHARACTERISTICS COLOR (TJ= 25° C)

Color Minimum Flux
@ 350mA
Dominant Wavelength Range Order CodeLEDSupply Part
Group Flux (lm) Min. Max1-Up Part3-Up Part
GroupDWL
(nm)
GroupDWL
(nm)
Royal Blue 33 525mW D3 450 D5 465 XPEBRY-L1-0000-00M01 CREEXPE2-ROY-1 CREEXPE2-ROY-3
Blue K2 30.6 B3 465 B6 485 XPEBBL-L1-0000-00Y01 CREEXPE2-BLU-1 CREEXPE2-BLU-3
Green Q5 107 G2 520 G4 535 XPEBGR-L1-0000-00D01 CREEXPE2-GRN-1 CREEXPE2-GRN-3
PC Amber Y2 107 Q5 565 Q5 595 XPEBPA-L1-0000-00C01 CREEXPE2-PCA-1 CREEXPE2-PCA-3
Amber P3 73.9 A2 585 A3 595 XPEBAM-L1-0000-00801 CREEXPE2-AMB-1 CREEXPE2-AMB-3
Red Orange P4 80.6 O3 610 O4 620 XPEBRO-L1-0000-00901 CREEXPE2-RDO-1 CREEXPE2-RDO-3
Red P2 67.2 R2 620 R3 630 XPEBRD-L1-0000-00701 CREEXPE2-RED-1 CREEXPE2-RED-3



CHARACTERISTICS

Characteristics
Unit
Min.
Typical
Max.
Thermal Resistance, junction to solder point - white, royal blue, blue
°C/W
9
Thermal Resistance, junction to solder point - green
°C/W
15
Thermal Resistance, junction to solder point - PC amber
°C/W
9
Thermal Resistance, junction to solder point - amber
°C/W
7
Thermal Resistance, junction to solder point - red, red-orange
°C/W
5
Viewing Angle (FWHM) - royal blue, blue, green
°Degree
135
Viewing Angle (FWHM) - royal blue, blue, green
°Degree
110
Viewing Angle (FWHM) - amber, red, red-orange
°Degree
130
Temperature coefficient of voltage - royal blue, blue
mV/°C
-3.3
Temperature coefficient of voltage - green
mV/°C
-3.8
Temperature coefficient of voltage - PC amber
mV/°C
-2.5
Max.
Temperature coefficient of voltage - amber, red-orange, red
mV/°C
-1.8
Max.
ESD Withstand Voltage (HBM per Mil-Std-883D) white, royal-blue, blue, green
V
8000
ESD Classification (HBM per Mil-Std-883D) PC amber, amber, red-orange, red
Class 2
DC Forward Current
mA
1000
Reverse Voltage
V
5
Forward voltage (@ 350 mA, , 25°C) - blue, royal-blue
V
3.1
3.5
Forward voltage (@ 1000 mA, , 25°C) - blue, royal-blue
V
3.4
Forward voltage (@ 350 mA, , 25°C) - green
V
3.2
3.8
Forward voltage (@ 1000 mA, , 25°C) - green
V
3.7
Forward voltage (@ 350 mA, , 25°C) - PC amber
V
3.05
3.5
Forward voltage (@ 1000 mA, , 25°C) - PC amber
V
3.28
Forward voltage (@ 350 mA, , 25°C) - amber, red, red-orange
V
2.2
2.6
Forward voltage (@ 1000 mA, , 25°C) - amber, red, red-orange
V
2.65
LED Junction Temperature
°C
150




Full Documentation
